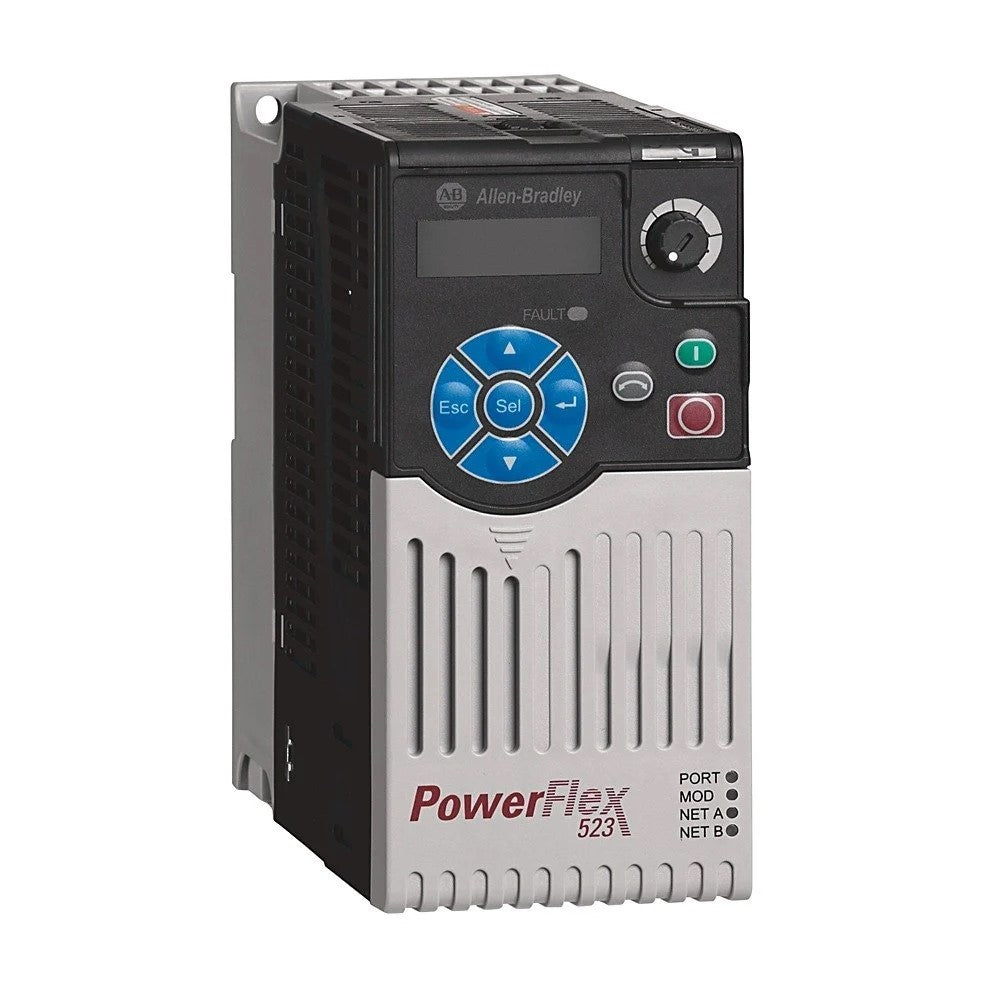

The 25A-D017N114 variable frequency drive is part of Allen Bradley's PowerFlex 523 series. Designed for 3-phase applications, it operates within an input voltage range of 380-480V AC and supports 50/60 Hz input frequencies. With a maximum output current of 17 Amps, this drive can manage motor power ratings up to 7.5 kW (10 HP).
Technical specifications for 25A-D017N114
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Variable Frequency Drive (AC Drive) |
| Product Line | PowerFlex 523 |
| Part Number | 25A-D017N114 |
| UPC | 885630702612 |
| Weight | 6.00 lbs (2.72 kg) |
| Input Voltage | 380-480V AC, 3-Phase |
| Input Frequency | 50/60 Hz |
| Output Current | 17 Amps |
| Rated Motor Power | 7.5 kW / 10 Horsepower |
| Duty Cycle Rating | Normal and Heavy Duty at 7.5kW/10HP |
| Maximum Output Frequency | 500 Hz |
| Enclosure Protection | IP20 Open Type |
| Control Methods | V/Hz and Sensorless Vector Control |
| Integrated Communication Ports | 1x RS-485 (DSI), 1x USB Port |
| Digital Inputs | 5 Inputs |
| Digital Outputs | 2 Outputs |
| Analog Inputs | 1 Input |
| Analog Outputs | 1 Output |
Description
The 25A-D017N114 model from Allen Bradley's PowerFlex 523 line serves as an efficient solution for variable frequency drive applications. This AC drive accommodates a 3-phase input voltage ranging from 380 to 480 volts and operates at either 50 or 60 Hz. It supports an output current rating of 17 Amps and is capable of powering motors rated at 7.5 kW or 10 HP, making it versatile for various industrial tasks.
This drive incorporates a maximum output frequency of 500 Hz that meets demanding speed requirements. The design includes control methods such as V/Hz and sensorless vector control to enhance performance and application adaptability. The device's enclosure is classified as IP20, indicating it is suitable for use in non-harsh environments without significant debris exposure.
Integrated within this model are communication capabilities featuring one RS-485 (DSI) port and a USB port, which facilitate easy connectivity and data management. The system supports five digital inputs and two digital outputs, along with one analog input and output, providing flexibility for diverse automation configurations. The 25A-D017N114 is rated for both normal and heavy-duty applications, accommodating rigorous duty cycles at its specified power ratings. Overall, this variable frequency drive is designed to meet a wide range of operational needs in industrial automation.
