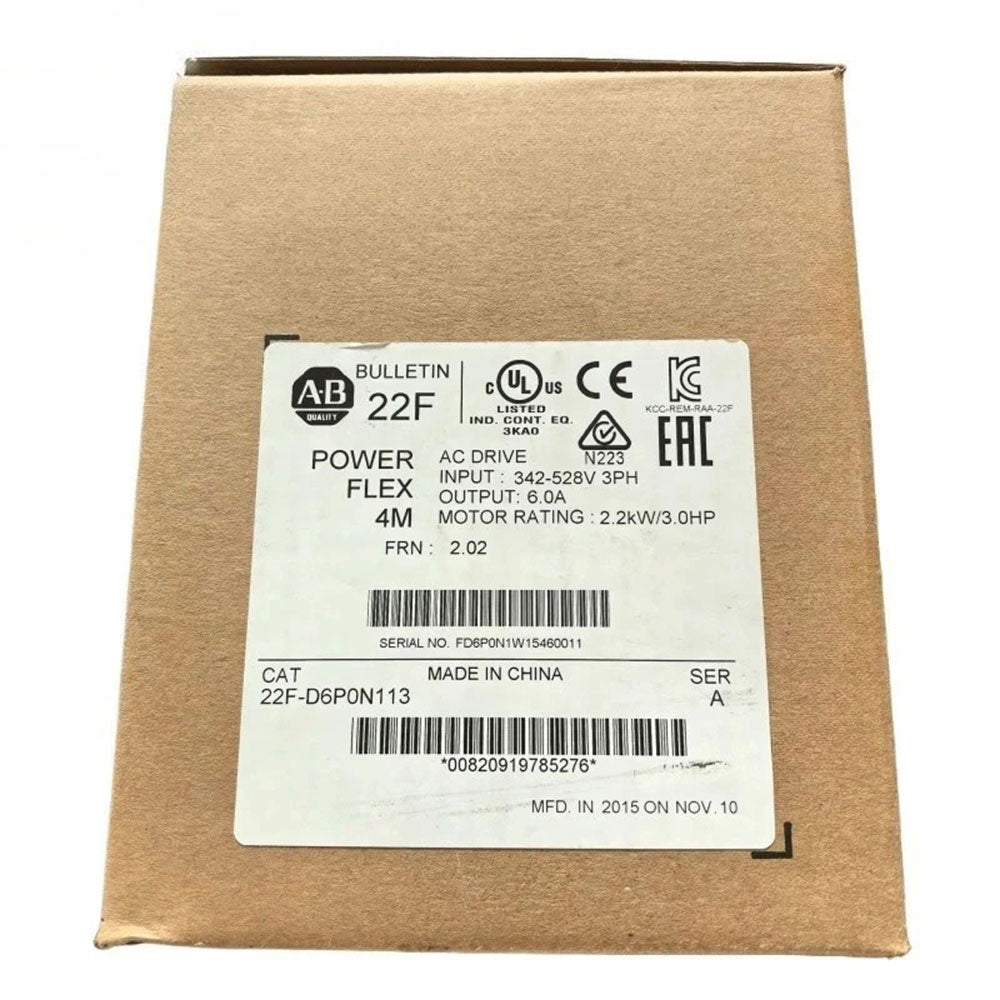

The 22F-D6P0N113 is part of the PowerFlex 4M adjustable Frequency AC drive by Allen-Bradley. This drive is a compact, rugged and scalable drive that is designed for DIN rail and direct panel mounting and supports zero stacking in application areas with an ambient temperature of 40 Degree Celsius. The 22F-D6P0N113 comes with a variety of integrated features such as a built-in EMC filter for incoming line voltage noise suppression, a removable Metal Oxide Varistor (MOV) that allows the drive to be installed in old wiring systems or applications with ungrounded or resistive type distribution systems and a relay pre-charge that limits the generation of inrush current. In addition, the drive supports out-of-the-box operation as it comes with a fixed keypad with an LCD display that functions as Human Interface Module (HIM) wherein operators or device users can monitor, configure and operate the drive locally. For communication, the embedded communication interface is an RS485 port that supports Modbus RTU and DSI protocol for networked connections. The 22F-D6P0N113 electrical specifications include an input voltage rating of 380-480 VAC, 3-Phase, and an input current of 6.2 Amperes. It has an output voltage of 0-460 VAC, 3-Phase, output current, and power of 6.0 Amperes and 3.0 HP or 2.2 kW. This drive implements motor control using the Volts / Hertz (V/Hz) control method with a variety of programmable stop modes and independently configurable acceleration and deceleration times.

The 22F-D6P0N113 is a 480 Volt AC, Three-Phase (50/60 Hertz) Drive manufactured by Allen-Bradley. It offers powerful machine-level speed control in a compact design. The 22F-D6P0N113 is a member of the PowerFlex 4M series of Adjustable Frequency AC Drives. The 22F-D6P0N113 drive is the smallest among the large catalog of PowerFlex drives. With output ratings of 2.2 kW (3.0) 6.0 Amp and input ratings of 5.2 kVA, 6.2 Amps, along with a 340 to 528 voltage range, this module requires installation in an IP20 NEMA/UL type open enclosure and requires a panel mount as well. It has a fixed keypad interface module and integral EMC filter to meet the EN61800-3 standard. Additional branch circuit protection is provided by this unit’s 10 fuse rating. The 22F-D6P0N113 Adjustable Frequency AC Drive provides Volts per Hertz control for optimized performance. It features an IR compensation auto boost and slips compensation. Its lay pre-charge is helpful in limiting inrush current and it supports quiet operation with its adjustable PWM frequency of up to 10 kHz. High levels of torque are supplied across the drive’s speed range; this module’s outstanding speed regulation is evident even with increased loading. The 22F-D6P0N113 drive also has a removable MOV that makes processes more reliable, regardless of whether they are on ungrounded or grounded resistive distribution systems. The 22F-D6P0N113 AC Drive supports a variety of communication setups. The Integral RS485/DSI communications allow the drive to operate within a multi-drop network configuration. The drive can connect with any Allen-Bradley product that has a DSI protocol, as well as a personal computer, laptop, or pocket PC with Bluetooth wireless technology. With an external DSI communication kit, integral communication cards like BACnet, ControlNet, DeviceNet, EtherNet/I, LonWorks, and PROFIBUS DP can be used to enhance machine performance. The 22F-D6P0N113 is not only built with performance and quality in mind: it is also space-saving with an easy-to-use design. The feed-through wiring design makes retrofitting fast and simple, with minimal installation requirements. Using the DIP switch setting, the 24 Volt DC control logic can be adjusted for either Sink or Source control, and a 0 to 10 Volt input or 4 to 20 mA input, both electrically isolated from the drive, can be used to control speed.
