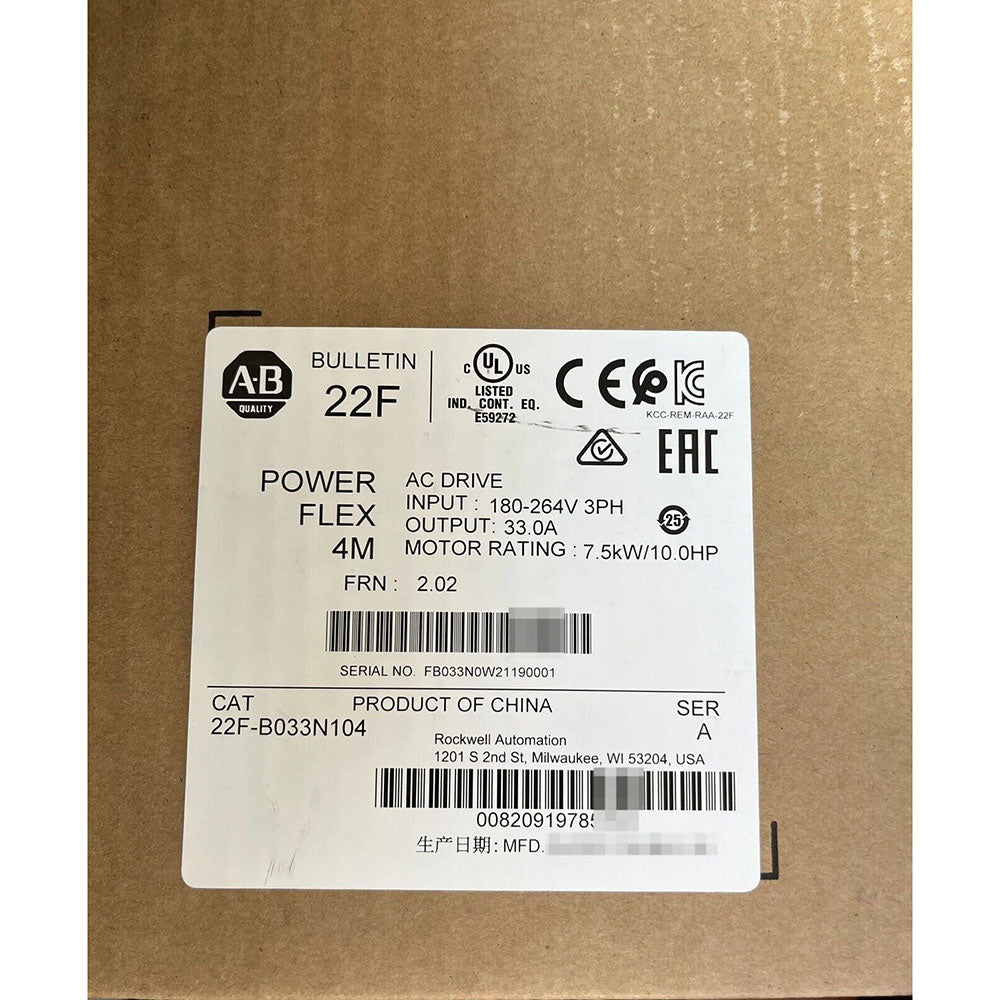

The Allen-Bradley 22F-B033N104 is a PowerFlex 4M 3-phase, C frame, low-voltage air-cooled drive without a CE compliant filter. The voltage ratings of this drive are 200-240V AC for the input and 240V AC for the output. Its frequency rating is 50-60 Hz and its power factor is 0.98. The 22F-B033N104 also has 3 A relay contact resistive ratings at 30V DC or at 125-240V AC and 0.5 A inductive ratings at 30V DC or at 125-240V AC. The input ratings of this drive consist of a 180-265 voltage range, 16.1 kVA, and 38.5 Amps, while its output ratings are 7.5 kW, 10 HP, and 33 Amps. It has a maximum operating altitude without derating of 1000 m or 3300 ft, a non-condensing relative humidity of 0-95% and a non-operating temperature of -40-85 oC. The operating shock of the 22F-B033N104 drive is 15 g peak for 11 ms, while its operating vibration is 1 g peak at 5-2000 Hz.

Installed on the 22F-B033N104 are a fixed digital keypad, a 4-digit digital display, and 10 LED status indicators. The modules present on this drive include a serial converter module, a DSI Wireless Interface Module (WIM), and an RS-485/DSI that is the same as the Modbus RTU module. It is also equipped with a standard brake and an internal brake transistor that allows for dynamic braking with simple and economical brake resistors. This drive is panel-mounted and has an IP20 NEMA, open-type enclosure rating.
