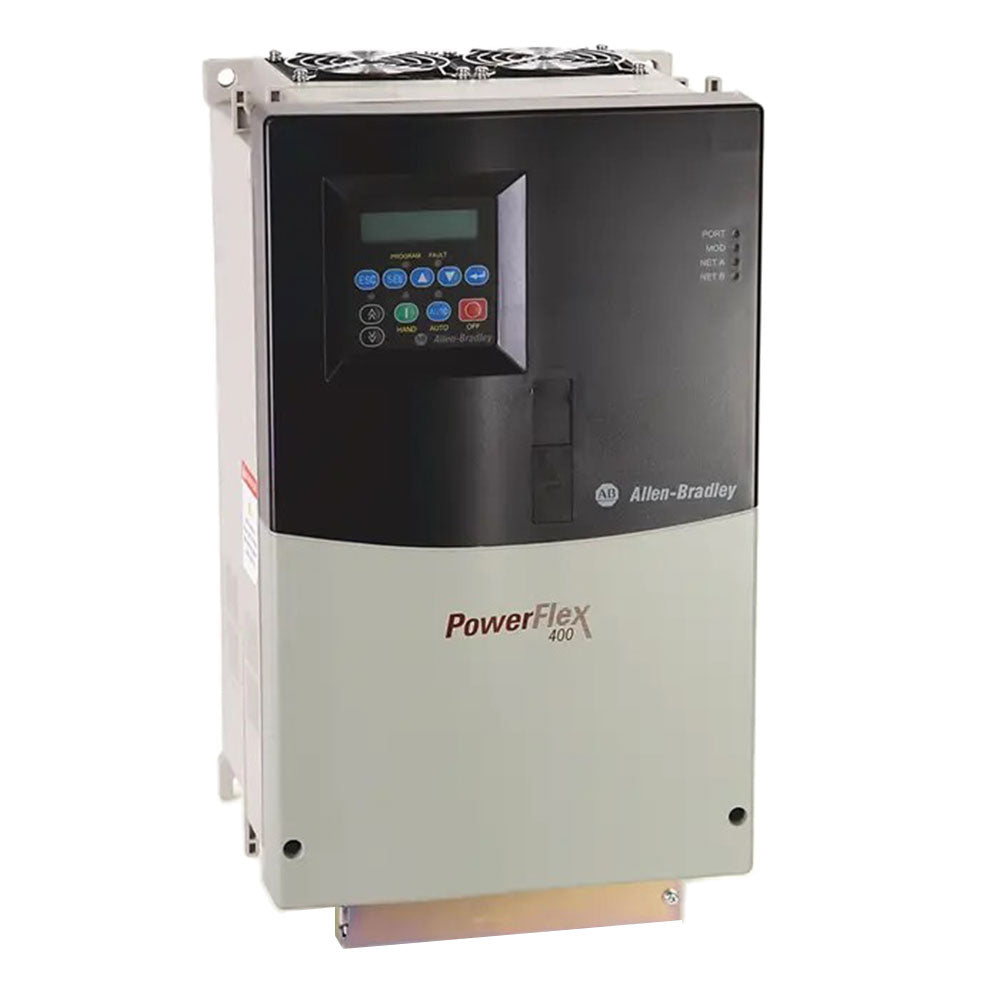

The PowerFlex 400 series presents the model 22C-D460A103 differential AC drive, designed to meet extensive control requirements in industrial applications. It has an impressive current rating of up to 460 Amps, which supports high-performance motor functions. Coupled with a rated power output of 250 kW, or 350 horsepower, this drive is suitable for demanding tasks.

The driving parameters include a 480 V AC input voltage, allowing for efficient operation within 3-phase settings. Users can select between 50 and 60 Hz for input frequency, providing flexibility across different operational environments. Built in an H frame configuration, the drive is also enclosed with an IP30 rating, conforming to NEMA Type 1 and UL Type 1 standards for ingress protection, thereby ensuring reliability in protected indoor installations.

With a power factor of 0.98 PF, the drive promotes energy efficiency. Control is accomplished through a PWM V/Hz method, optimizing performance across various load conditions. Updates and adjustments can be made via the integrated keypad that features a convenient LED display for easy monitoring. For expanded connectivity, the drive includes an RS485 communication interface, enabling integration into broader control systems. The 22C-D460A103 is designed for panel mounting, ensuring a streamlined installation process in diverse applications.
