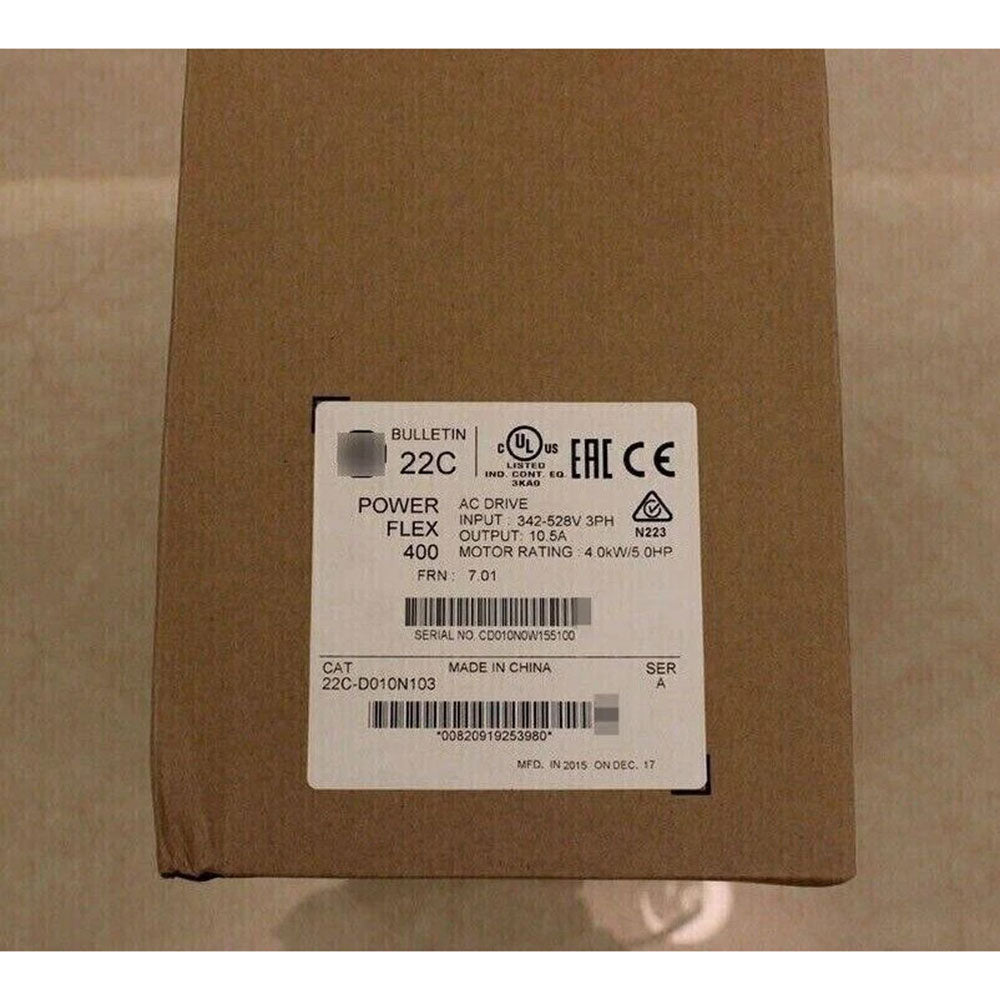

The 22C-D010N103 is part of Allen Bradley's PowerFlex 400 series, serving as a reliable AC drive. This device handles a rated voltage input of 480 VAC and supports a maximum output current of 10.0 A, designed for three-phase applications.
Technical specifications for 22C-D010N103
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | AC Drive |
| Product Line | PowerFlex 400 |
| Part Number | 22C-D010N103 |
| UPC | 820919253980 |
| Weight | 6.00 lbs (2.72 kg) |
| IP Rating | IP20 |
| Frame Size | C Frame |
| Enclosure Type | Open Type |
| Rated Voltage | 480 VAC |
| Phase Type | 3 Phase |
| Human Interface Module | Fixed Keypad |
| Output Current | 10.0 A |
| Minimum Input Frequency | 50 Hz |
| Maximum Input Frequency | 60 Hz |
| Brake IGBT | Not Installed |
Description
The Allen Bradley 22C-D010N103 AC drive belongs to the PowerFlex 400 series, engineered for efficient motor control in industrial settings. With a voltage rating of 480 VAC, this drive is suitable for three-phase systems. It provides an output current capacity of 10.0 A, accommodating various load demands effectively.
The drive is classified as a C frame unit and is designed with an open-type enclosure, permitting easy access and facilitating cooling. It possesses an IP20 rating, which protects against solid objects larger than 12.5 mm but is not suitable for moisture exposure. The human interface module incorporates a fixed keypad, allowing for straightforward operation and programming.
The input frequency range is flexible, operating between a minimum of 50 Hz and a maximum of 60 Hz. Additionally, this unit does not feature a brake IGBT, catering to specific application needs where a braking function is unnecessary. The combination of these attributes makes the 22C-D010N103 a suitable choice for various industrial applications.
