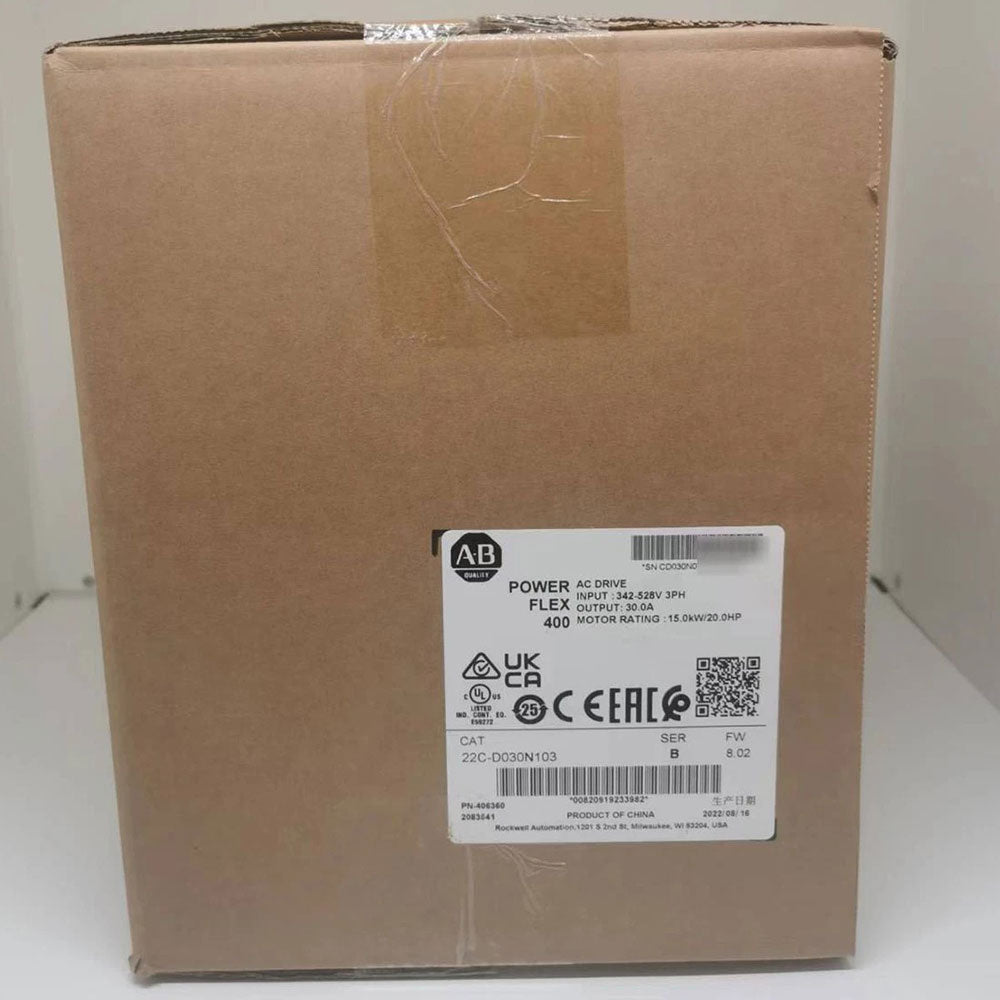

The Allen-Bradley 22C-D030N103 PowerFlex 400 adjustable frequency AC drive for Fan and Pump applications. This drive features an input voltage range of 380-480VAC, 3-phase and delivers output voltage of 0-460VAC, 3-Phase, with rated Current of 30.0 A @ 45 Deg. C and 27. 0 A @ 50 Deg. C and Power of 15.0 kW (20.0 HP). This drive is capable of sinusoidal Pulse Width Modulation (PWM) and Volts / Hertz control methods. It has an integral RS485 communication interface.
Technical specifications for 22C-D030N103
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 400 |
| Part Number | 22C-D030N103 |
| UPC | 820919233982 |
| Weight | 14.00 lbs (6.35 kg) |
| Output Current | 30.0 A @ 45 Deg. C and 27. 0 A @ 50 Deg. C |
| Input Voltage | 380-480VAC |
| Product Family | PowerFlex 400 for Fan and Pump applications |
| Input Current | 31.0 A |
| Output Voltage | 0-460VAC |
| Output Power | 15.0 kW (20.0 HP) |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) Open Output; Two (2) Form C Contacts Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: Two (2) Analog Input 0-10VDC; 0- 20mA |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Control Method | Sinusoidal PWM; Volts / Hertz |
| Built-in communication port | RS485 |
| Optional communication protocols | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Drive Type | Fan and Pump |
| Horsepower | 20 |
| Phase | 3-Phase |
| Enclosure | Panel Mount - IP20, NEMA/UL Type Open |
| Frame Size | C |
| Storage Temperature | -40 to 85 degrees Celsius |
| Frequency | 50 to 60 Hertz |
| Control Type | RS-485 |
| Mounting | Panel Mount |
Description
The Adjustable Frequency AC drive with part number 22C-D030N103 is a PowerFlex 400 drive that is specifically designed for use in industrial Fan and Pump application. This device is manufactured by Allen-Bradley that is mostly composed of electronic components. It may be used in application areas such as Auxiliary Motor Control, Damper Control, Proportional, Integral, Differential (PID) Control Loop, Connectivity to Building Fire and Life Safety Systems, Heating Ventilation and Airconditioning (HVAC), Water and Wastewater applications.
The 22C-D030N103 is designed to accept input Voltage range of 380-480VAC, 3-Phase, provides an Output Voltage of 0-460VAC, 3-Phase, output Current of 22.0 A and Power of 11.0 kW (15.0 HP). It has a programmable output frequency of 0-320 Hz. It is capable of Sinusoidal Pulse Width Modulation (PWM) and Sensorless Vector Control (SVC) control method. This drive supports direct panel mounting. It must be installed to an enclosure that offers adequate protection. Recommended enclosures are IP20 / NEMA UL Type Open enclosure or enclosures that prevent entry of solid objects more than 50mm and vertical water splash.
The 22C-D030N103 is provided with an integrated Human Interface Module (HIM) that has Two (2) parameter lines capable of displaying Sixteen (16) character per line. It also has an LCD with Five (5) LED Indicators. Using this HIM component, the 22C-D030N103 may be configured. The HIM also permits local operation and troubleshooting of the drive.
It has an IP30, NEMA /UL type open (Ingress Protection) enclosure that protects the drive against solid objects up to 12 millimeters in size. The Allen-Bradley 22C-D030N103 has a 480 Volts 3-phase AC power supply at 50 to 60 Hertz. It is equipped with 7 programmable digital inputs, analog I/Os, and 2 programmable relays. The drive has an integrated RS-485 communication port that lets it function in a noisy environment and over long distances. The 22C-D030N103 AC drive supports protective features like ground fault detection, motor overload detection, and transient voltage protection. The 22C-D030N103 is compatible with the Logix control platform which simplifies the parameter exchange process with PLCs to reduce development time. The drive produces 30 Amps at the output side and it has a power factor of 0.98. The unit is installed by attaching it to a panel in an electrical cabinet equipped with a fan for proper equipment cooling. The device should be protected by installing a fuse on the input side.
