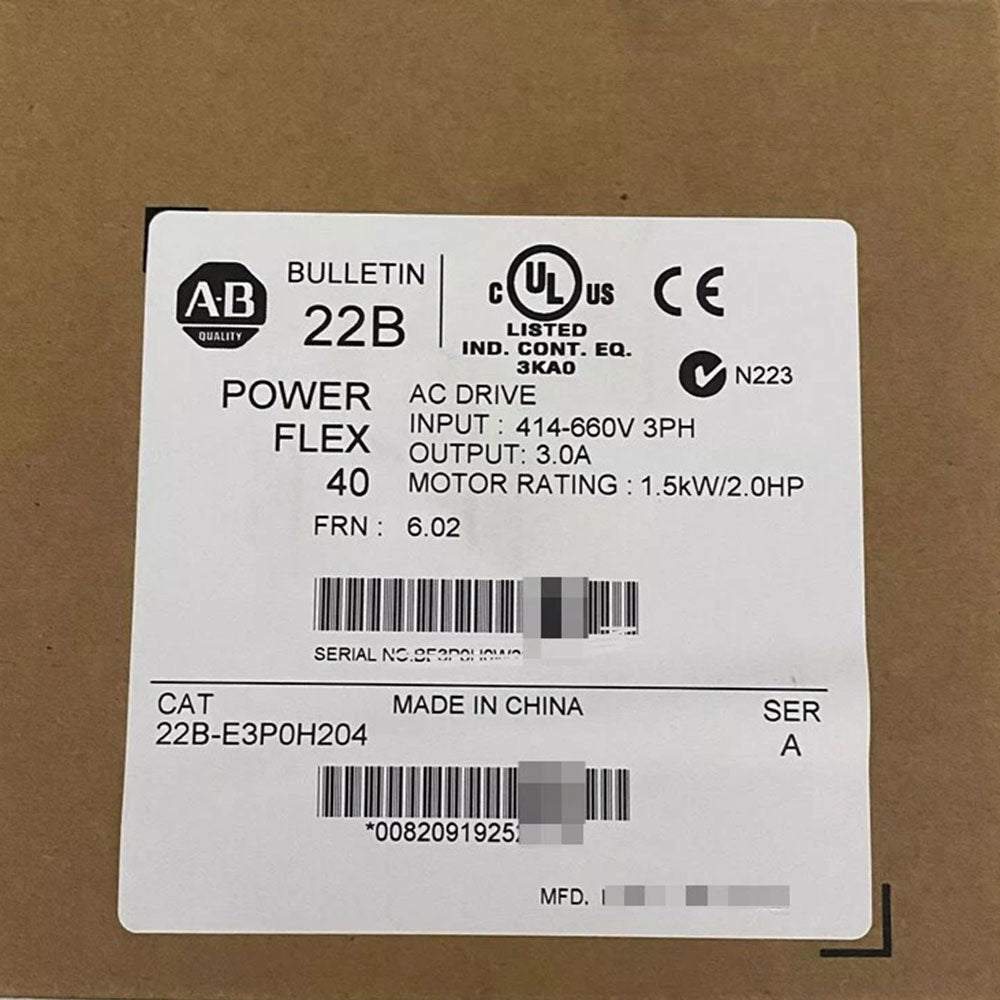

The 22B-E3P0H204 drive is an Allen-Bradley/Rockwell Automation adjustable frequency drive from the PowerFlex 40 series. It utilizes its adjustable frequency to gently change the speed and torque ratings of a motor in a manner that does not cause friction, wear, or damage to the motor or its components. The 22B-E3P0H204 adjustable frequency drive requires 600 Volts AC 3-phase rated input voltage to operate. It also supports an output current rating of 3 Amps. The 22B-E3P0H204 adjustable frequency drive features a keypad that can be used for drive control and for data input.
Technical specifications for 22B-E3P0H204
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 40 |
| Part Number | 22B-E3P0H204 |
| Weight | 3.00 lbs (1.36 kg) |
| Voltage | 600AC Volts |
| Enclosure | Replacement Plate Drive - IP20, NEMA/UL Type Open (Without Heatsink) |
| HP | 2 Horsepower |
| Amperage | 3.0 A |
| Phase | 3 Phase |
| Filter | No CE Compliant Filter |
| Communication | RS-485 |
| Input Type | Keypad |
Description
The Allen Bradley PowerFlex 40 Drive module (22B-E3P0H204) has a voltage rating of 500 to 600 Volts AC. This is a three-phase motor drive that operates on a 50 to 60 Hertz frequency, has an output rating of 2 Hp and 1.5 kW, and has an output current of 3 A. The operating temperature of this module is 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit); its nonoperating temperature of this module is -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit), and it has a relative humidity range of 5% to 96% without condensation.
This unit has an operating shock of 30 G (3 pulses, 11 milliseconds) and a nonoperating shock of 50.0 G (3 pulses, 11 milliseconds). It is to be used only in pollution-level industrial environments 2, in excessive category II applications (as defined in the publication IEC 60664-1).
This module can be used in either closed or open rooms but is not to be exposed to direct sunlight. It is designed to be flexible in order to stay connected and is easy to control, configure, and install. It also provides solutions for applications that can benefit from access to the safe zone while there is limited movement, allowing the operator to perform some process or maintenance work without stopping the machine.
