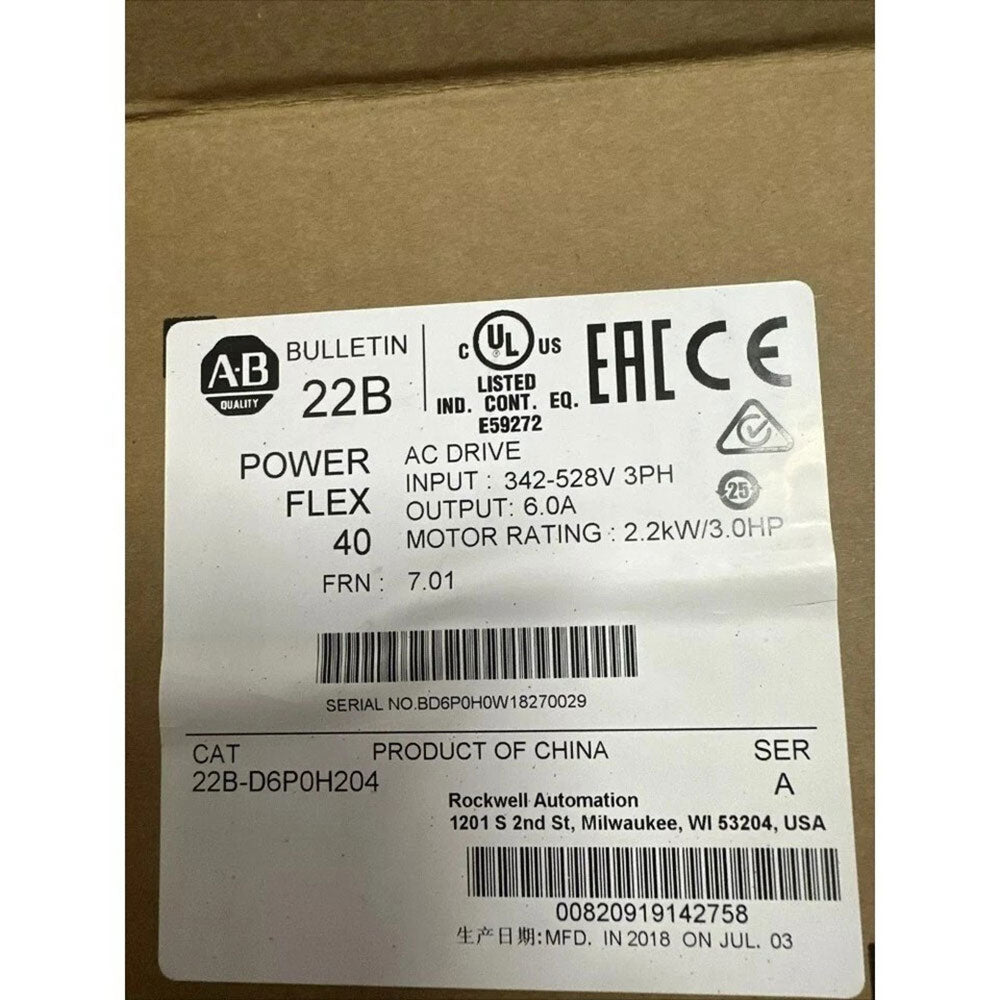

The 22B-D6P0H204 drive is an AC drive that has been designed and manufactured as part of the Allen-Bradley/Rockwell Automation PowerFlex 40 drive series. It is an adjustable frequency drive that uses its adjustable frequency to adjust the speed or torque of a motor. The 22B-D6P0H204 adjustable frequency drive is rated for 480 Volts AC 3-phase voltage. Additionally, its current rating is 6 Amps and its output power rating is 1.1 kilowatts or 1.5 Horsepower. The 22B-D6P0H204 adjustable frequency drive does not come with a CE-compliant filter.
Technical specifications for 22B-D6P0H204
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 40 |
| Part Number | 22B-D6P0H204 |
| UPC | 820919142758 |
| Weight | 11.00 lbs (4.99 kg) |
| Voltage | 480AC Volts |
| Enclosure | Replacement Plate Drive - IP20, NEMA/UL Type Open (Without Heatsink) |
| HP | 3 Horsepower |
| Amperage | 6.0 A |
| Phase | 3 Phase |
| Filter | No CE Compliant Filter |
| Communication | RS-485 |
| Input Type | Keypad |
Description
The Allen-Bradley 22B-D6P0H204 drive is an adjustable frequency AC drive that is a part of the PowerFlex 40 series of drives that are applicable to standard motor speed control applications. This drive offers Volts per Hertz and sensorless vector control, and it can be easily integrated into the Logix control platform. This means that programmers and industrial automation engineers can reduce development time by simplifying the parameter and tag programming processes. The Allen-Bradley 22B-D6P0H204 universal application AC drive must be supplied with 480 Volts AC Voltage (50 to 60 Hertz, 3-phase). It produces 6 Amps and 3 Horsepower at the output. The drive has a replacement plate drive and an IP 20 enclosure (with a frame size of B), but no heatsink. This module, like all PowerFlex 40 devices, can be zero-stacked during the installation and this saves a lot of valuable space in electrical cabinets.
The Allen-Bradley 22B-D6P0H204 drive is equipped with an LED Display and a digital keypad for on-site device configuration, parameter changes, and alarm read-out and confirmation. This drive can communicate over an RS-485 serial port and this makes it a delicate and economic AC drive that is armed with protective features, vector control, and communication capabilities. The 22B-D6P0H204 drive delivers steady performance, rich motor control functions, and easy-to-apply standard configurations. All of these advantages make this a drive with a high price-quality ratio for industrial motor speed control solutions. With additional modules, this drive can be upgraded to use the DeviceNet, ControlNet, EtherNet/IP, Profibus DP, BACnet, and LonWorks industrial networks. The operating temperature range of the unit is from -10 to 50 degrees Celsius.
