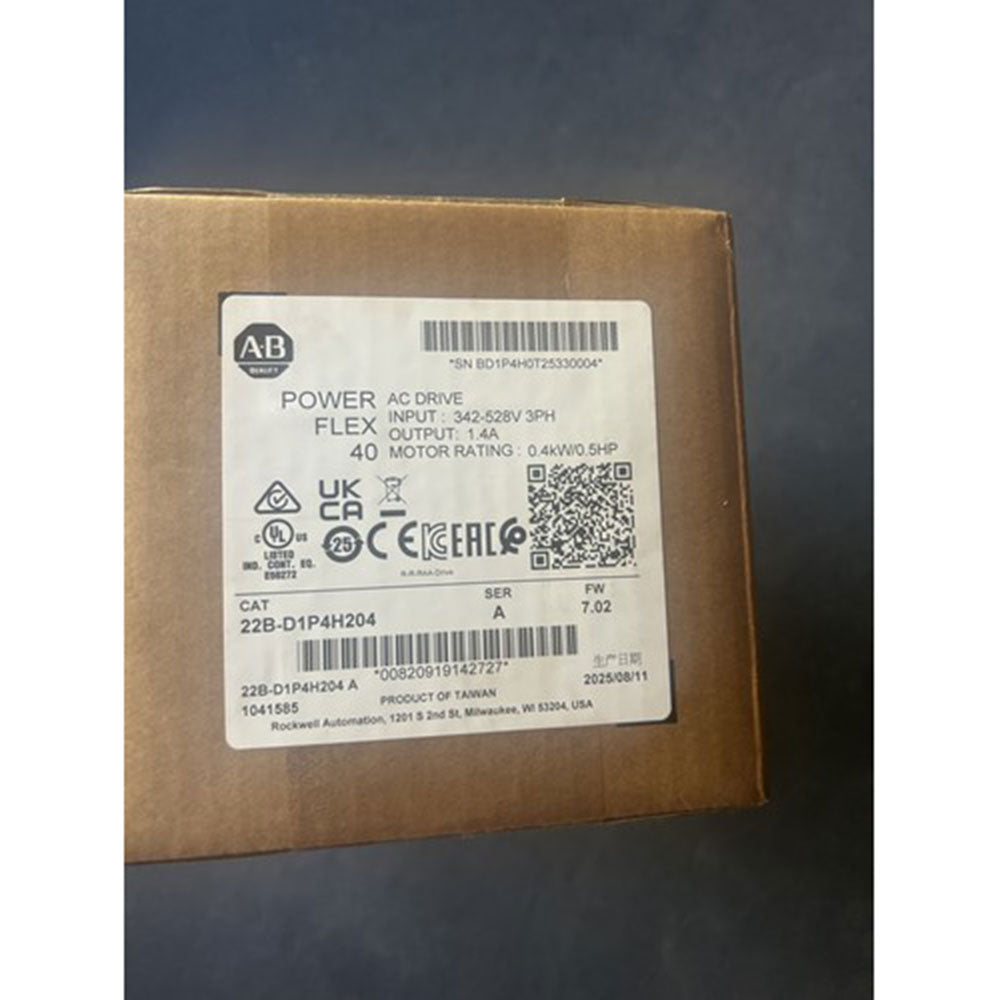

The 22B-D1P4H204 drive is a motor control drive that controls the speed and torque of PLC motors with its adjustable frequency. It has been designed and manufactured by Allen-Bradley/Rockwell Automation as part of the PowerFlex 40 series. The 22B-D1P4H204 adjustable frequency drive controls the speed and torque of its connected motor with as little friction and as few sudden changes as possible in order to extend the operating lifespan of the motor and its components. It operates with 3-phase input voltage that is rated at 480 Volts AC at 50 to 60 Hertz. The 22B-D1P4H204 adjustable frequency drive does not come with a CE-compliant filter.
Technical specifications for 22B-D1P4H204
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 40 |
| Part Number | 22B-D1P4H204 |
| Weight | 3.25 lbs (1.47 kg) |
| Voltage | 480AC Volts |
| Enclosure | Replacement Plate Drive - IP20, NEMA/UL Type Open (Without Heatsink) |
| HP | 0.5 Horsepower |
| Amperage | 1.4 A |
| Phase | 3 Phase |
| Filter | No CE Compliant Filter |
| Communication | RS-485 |
| Input Type | Keypad |
Description
The 22B-D1P4H204 is a three-phase PowerFlex 40 drive manufactured by Allen-Bradley under the PowerFlex series of drives. The 22B-D1P4H204 comes with a frequency rating of 50 to 60 Hertz, but it features no filter option. The 22B-D1P4H204 comes with 0.4 kilowatts with 0.5 Horsepower of output power and 14 Amps as the current rating. The 22B-D1P4H204 provides users with powerful motor speed control. It is a high productivity drive that works well in a compact space saving design. The 22B-D1P4H204 features no CE compliant filter and it comes with an RS-485 port featuring a keypad-based communication input type. The 22B-D1P4H204 is a member of the smallest and most cost-effective line of drives available in power ratings ranging from 0.2 kilowatts to 11 kilowatts in capacity.
The installation and mounting of the 22B-D1P4H204 can be done using the DIN rail mounting feature on the A and B frame drives. The module also features flange mounting capabilities for reducing the overall enclosure size. The PowerFlex 40 devices feature zero stacking, which is allowable for environments with an ambient temperature of up to 40 degrees Celsius. This is a feature that allows for space saving. The 22B-D1P4H204 features a replacement plate drive (IP20 NEMA/UL Type Open with no heatsink) enclosure. It comes with a voltage rating of 480 Volts AC and it produces up to 0.5 Horsepower of power. The PowerFlex 40 devices feature a removable MOV to a ground that provides trouble-free operation whenever it is used on the ungrounded distribution systems. The 22B-D1P4H204 features a relay pre-charge that limits the inrush current and it also comes with the integral brake transistor that is also available on all drive ratings.
