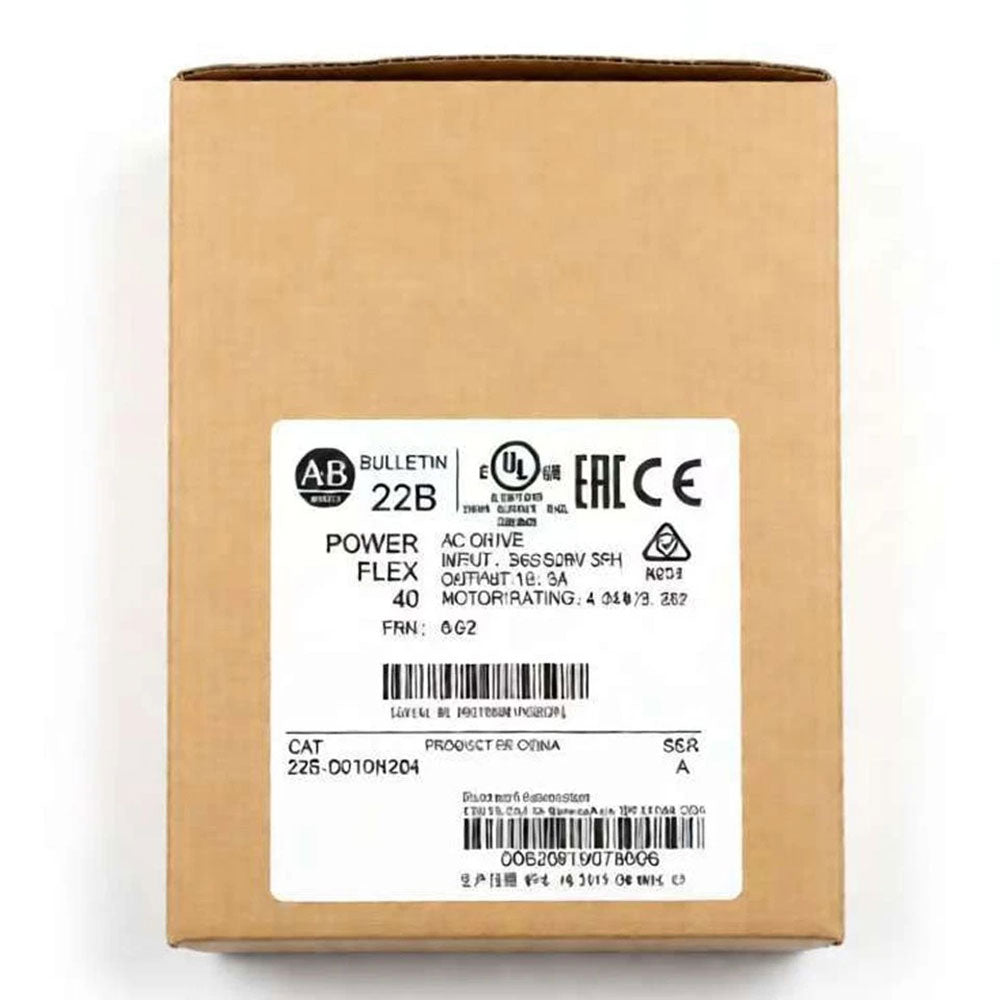

The 22B-D010H204 AC drive is an adjustable frequency AC drive from the Allen-Bradley PowerFlex 40 series. Its enclosure is an open type of enclosure with an IP 20 protection rating and no heatsink. The 22B-D010H204 adjustable frequency AC drive’s voltage rating is 480 Volts AC. Its Horsepower output rating is 5 Horsepower and its current rating is 10 Amps. The 22B-D010H204 adjustable frequency AC drive’s operating temperature range is from 32 to 140 degrees Fahrenheit and its storage temperature range is from -40 to 185 degrees Fahrenheit.
Technical specifications for 22B-D010H204
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 40 |
| Part Number | 22B-D010H204 |
| UPC | 820919142765 |
| Weight | 4.06 lbs (1.84 kg) |
| Voltage | 480AC Volts |
| Enclosure | Replacement Plate Drive - IP20, NEMA/UL Type Open (Without Heatsink) |
| HP | 5 Horsepower |
| Amperage | 10.0 A |
| Phase | 3 Phase |
| Filter | No CE Compliant Filter |
| Communication | RS-485 |
| Input Type | Keypad |
Description
The Allen Bradley 22B-D010H204 is one of the parts in the series PowerFlex 40 AC drives; it is a PowerFlex Low Voltage AC Drive Modules, weighing around 3.7 pounds and measuring 4.92 x 8.03 x 3.84 inches. Its cooling fan should be replaced only by the part that corresponds to the number 2410ML-05W-B30-B00; this fan is built in and has a speed range from 0.5 to 5 HP. This module does not have a filter. It can function at any temperature between 32 degrees Fahrenheit and 140, and is best stored at a temperature of -40 to 185 degrees Fahrenheit, with an ideal surrounding air temperature of 104 degrees Fahrenheit. It can additionally resist up to 95% relative humidity without resulting condensation.
The voltage rating of the 22B-D010H204 drive is around 380 or 480 Volts AC, operating at a frequency no more than 60 Hertz and no less than 50. It can run up to 4 kW and up to 5 Hp. It has a 30.0 g operating shock (3 pulses, 11 milliseconds) and a 50.0 g nonoperating shock (3 pulses, 11 milliseconds). It has passed various EMC standards, specifically Part 2 of the EN 50081-2 EMC - Generic Emission Standard (Industrial environment) along with Part 2 of the EN 50082-2 EMC – Generic Immunity Standard (Industrial Environment).
