This Rockwell Automation 6000 rpm MP low inertia servo has a keyed shaft installed if a shaft key is needed. Additionally, this servo is a 200 volt class module and has a stack length of 2 in. This MP low inertia permanent magnet servo motor has a multi-turn hyperface encoder feedback installed. This MPL permanent magnet motor in addition is equipped with circular DIN (180 degrees rotatable) connectors that come on top of this adaptible servo motor. Furthermore, this module also has no brake in the motor.
Technical specifications for MPL-A220T-VJ72AA
| Manufacturer | Allen Bradley |
|---|---|
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-A220T-VJ72AA |
| UPC | 884951213593 |
| Weight | 4.31 lbs (1.96 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 200 Volts AC |
| Frame Size | 75 millimeters |
| Magnetic Stack Length | 2 inches |
| Rated Speed | 6000 rpm |
| Feedback | Multi-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Brake | No brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
Description

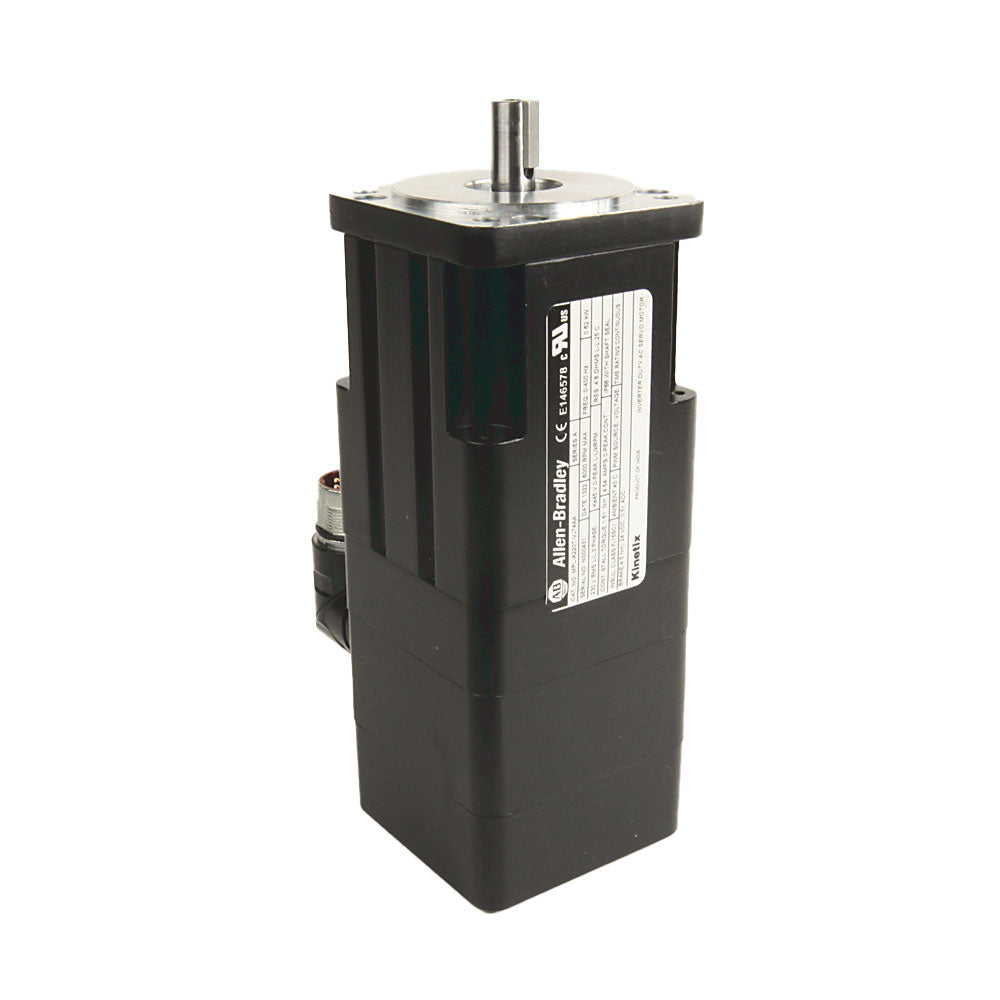

The Allen-Bradley MPL-A220T-VJ72AA brushless AC servo motor with a 75-millimeter frame is a high output servo motor belonging to the MP series of Allen-Bradley low-inertia servo motors and it is built to meet the stringent needs of high-performance industrial motion systems. The MP series low-inertia servo motors come with state-of-the-art winding technology which offers 40% more torque yield compared to conventional motors, and they have enhanced winding insulation material which improves heat transfer and enhances performance. The MPL-A220T-VJ72AA servo motor has a voltage rating of 200 Volts AC, with a rated power output of 0.62 kilowatts, and a rated motor speed of 6000 rpm. It has a winding stall torque rating of 14 pounds on an inch, which peaks at 42 pounds on an inch, and it has a peak stall current rating of 15.5 Amps.
The MPL-A220T-VJ72AA servo motor has Allen-Bradley smart motor technology which consists of an onboard motor memory that is capable of retaining the motor identity and also of linking this identity data to the system upon startup. It also has a high resolution multi-turn onboard absolute encoder (feedback device), which provide high-resolution absolute position feedback and it has an electromechanical design that requires no batteries. The MPL-A220T-VJ72AA servo motor has a circular DIN connector with a 180-degrees rotatable angle, and a motor frame size of 75 millimeters and a magnet stack length of 2 inches. The MPL-A220T-VJ72AA servo motor has an IEC standard mounting flange with an aluminum motor housing with an IP 51 protection rating. It has a net shipping weight of 2.0 kilograms (4.4 pounds) with a brake, and a designated operating temperature range between 0 to 40 degrees Celsius.
