The Allen-Bradley/Rockwell Automation 22A-D6P0H204 drive is an AC-powered adjustable frequency drive. It is available through the Allen-Bradley PowerFlex 4 series of adjustable frequency drives. The 22A-D6P0H204 adjustable frequency drive’s rated input voltage is 480 Volts AC (3-phase) at 50 to 60 Hertz of input frequency. It is protected by an IP 20 rated enclosure. The 22A-D6P0H204 adjustable frequency drive can generate up to 1.5 Horsepower or 1.1 kilowatts of output power during operation.
Technical specifications for 22A-D6P0H204
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 4 |
| Part Number | 22A-D6P0H204 |
| UPC | 820919142574 |
| Weight | 10.00 lbs (4.54 kg) |
| Amperage | 6 |
| Enclosure Type | IP20 (Without Heatsink) |
| Filter | Without CE Compliant Filter |
| Phase | 3 Phase |
| Wattage | 2.2 Kilowatt |
| Input Type | Keypad |
| Display | Light-Emitting Diode (LED) |
| Horsepower | 3 Horsepower |
| Input Power | 380-480 Volts AC |
| Brake Drive | Brake Drive |
| Frame Size | A |
Description

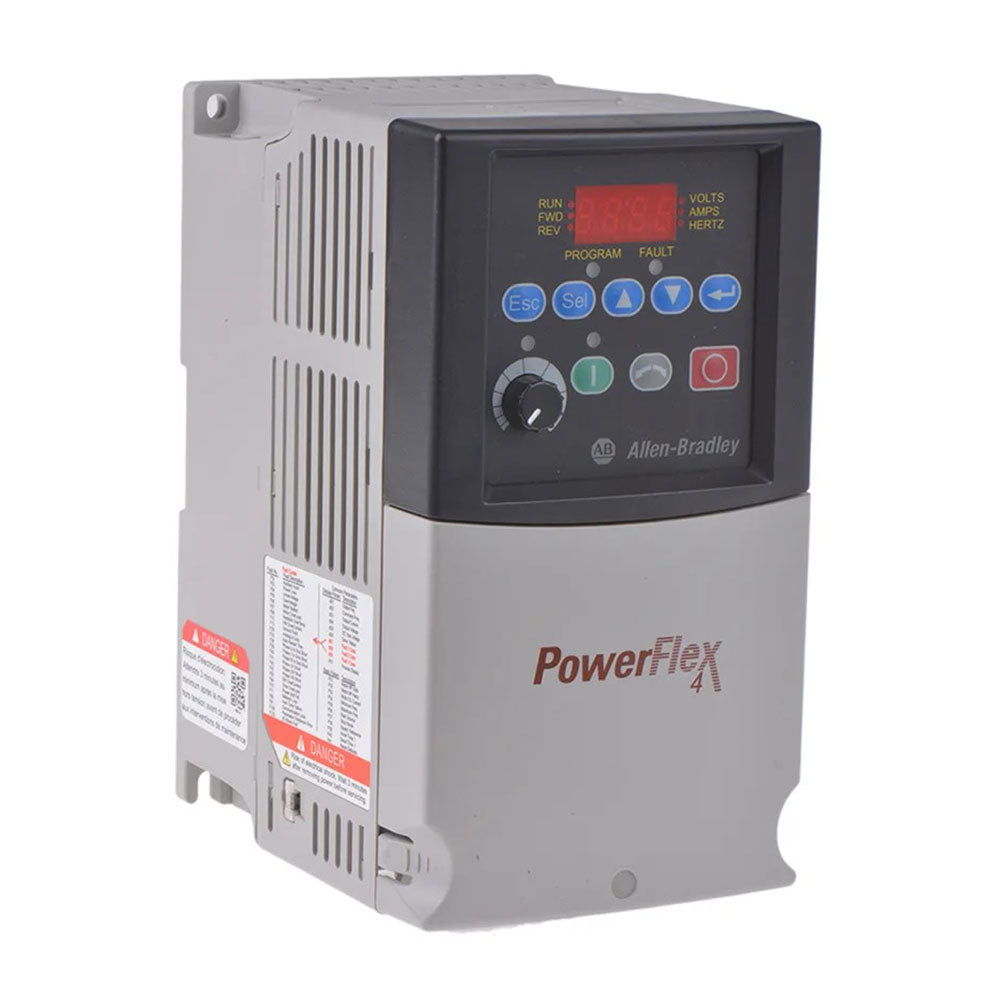

The Allen-Bradley 22A-D6P0H204 is a PowerFlex 4 low-voltage AC 3-phase brake drive. It comes with a 4-digit LED display, LED indicators, a fixed digital keypad, and a flash ROM. This drive has a 480V AC voltage rating, a 6 A output current, a 3 Hp rating, and a 2.2 kW rating. In particular, it has an input power of 380-480V AC and a line frequency of 50-60 Hz. Its operating temperature range is from 14-122 oF, while its storage temperature range is from -40-185 oF. The 22A-D6P0H204 also has a non-condensing relative humidity of 0-95% for both operation and storage. The operating shock of this drive is 15 g peak for 11 ms (+/- 1 ms) and its operating vibration is 1 g peak at 5-2000 Hz. It also has a NEMA/UL Type IP20 enclosure rating, but without the heatsink and an RS-485 communications port. The 22A-D6P0H204 brake drive also does not have a CE-compliant filter. The protective features of the 22A-D6P0H204 include over voltage protection, under voltage protection, over current protection, motor protection, a faultless power ride through function, and a control ride through function. Its frame size is Size A.
