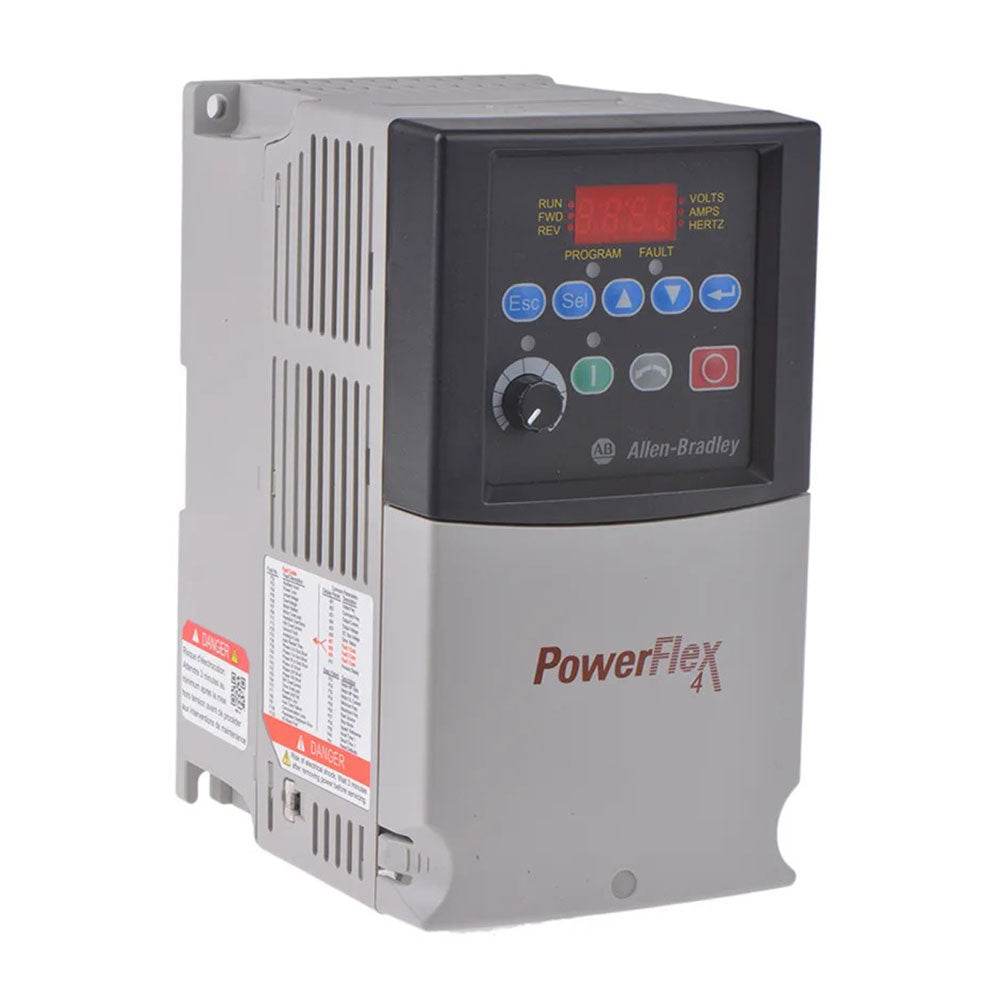

The 22A-D2P3H204 is a PowerFlex 4 adjustable frequency AC drive. This drive has a compact design that is especially compatible for installation in tight areas, contributing to space savings and cost-effectiveness. This drive comes with an integrated fixed keypad and Liquid Crystal Display (LCD) readout along with a local rotary potentiometer. These integral control modules allow users and operators to perform local configuration, monitoring, and control as well as carry out maintenance and troubleshooting locally. The 22A-D2P3H204 is a Frame A drive that supports DIN rail or direct panel mounting. It is also designed for zero stacking installations in applications where multiple similar drives are utilized. Zero stacking is permitted in installation areas with 40 Degree Celsius ambient temperature. With zero stacking, multiple drives can be installed with a minimum spacing in between units. The 22A-D2P3H204 is capable of the Volts / Hertz (V/Hz) control method and supports slip compensation. It is rated 380-480 VAC, 3-Phase, and input current of 3.2 Amperes. It has an output voltage of 0-460 VAC, 3-Phase, output current, and power of 2.3 Amperes and 1.0 HP or 0.75 kW, respectively. The drive’s programmable output frequency is 0-240 Hz with an operating efficiency of 97.5%. The built-in communication capability of the 22A-D2P3H204 is an RS485 communication interface. This port permits the daisy chain connection of multiple drives. Optional communication modules that support BACnet, ControlNet, DeviceNet, Ethernet I/P, LonWorks, and Profibus DP may be installed to this drive. In addition, the embedded I/O channels available to the 22A-D2P3H204 include Five (5) discrete inputs; One (1) unipolar analog input and One (1) N.O/N.C. dry contact output.

The 22A-D2P3H204 PowerFlex4 drive by Allen-Bradley with a motor rating of 0.75 kW (1 Horsepower), and with an output current of 2.3 Amps. It has an input rating with 340 to 528 Volts AC input voltage, a 3.2KVA apparent power, and a 3.2 Amps input current. For branch circuit protection, this drive is recommended to be installed with a 140M-C2E-B40 motor protector, and a 100-C09 contactor, with 6A, fuses. It has a power loss of 40W and 97.5% operational efficiency with a programmable 0 to 240 Hertz output control frequency. The 22A-D2P3H204 has a digital input, an analog input. and a programmable output control with a modulated frequency from 2-16 kHz. The digital input control can be set to a sink or a source mode through a DIP switch, and the analog input control has a 0-10 Volts DC at 100kVA input impedance. It has internal IGBT brakes and protection against an overcurrent at a 200% hardware limit for up to 60 seconds. It is also protected from motor overload at 150% for 60 seconds through a certified factory-built Class 10 protection, from over and under voltage at 200 to 240 Volts AC Input/ 575 Volts AC incoming line. The 22A-D2P3H204 is NEMA 1-certified for operating at an altitude of up to 1000 meters (3300 feet) without de-rating, and it has an ambient temperature in an IP20 open type enclosure. It has a 0 to 95% non-condensing operational relative humidity and a shock rating that peaks at 15G for a duration of 11 milliseconds with an operational vibration of 1G at 5 to 2000 Hertz. It has a dimension of 175 by 104.8 by 94.0 millimeters and a total weight of 0.91 kilograms.
