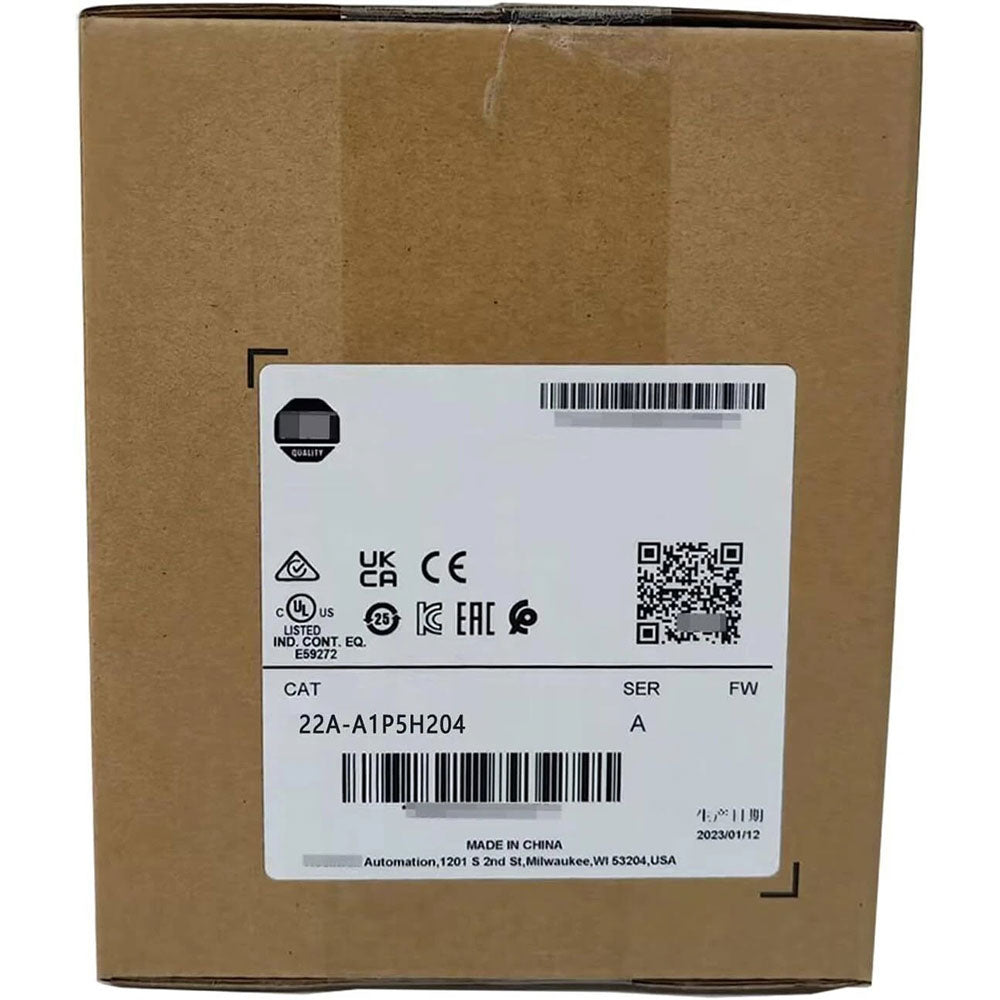

The Allen-Bradley/Rockwell Automation 22A-A1P5H204 drive is an AC-powered adjustable drive. It has been designed and manufactured as a member of the Allen-Bradley PowerFlex 4 series. The 22A-A1P5H204 AC drive operates with a 1-phase AC voltage rating of 240 Volts AC at 50 to 60 Hertz frequency. Its current rating is 1.5 Amps. The 22A-A1P5H204 AC drive does not come with a CE-compliant filter.
Technical specifications for 22A-A1P5H204
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 4 |
| Part Number | 22A-A1P5H204 |
| Weight | 3.00 lbs (1.36 kg) |
| Amperage | 1.5 |
| Enclosure Type | IP20 (Without Heatsink) |
| Filter | Without CE Compliant Filter |
| Phase | 1 Phase |
| Wattage | .2 Kilowatt |
| Input Type | Keypad |
| Display | Light-Emitting Diode (LED) |
| Horsepower | 1/4 Horsepower |
| Input Power | 200-240 Volts AC |
| Brake Drive | Brake Drive |
Description
The Allen-Bradley 22A-A1P5H204 is a PowerFlex 4 drive which provides speed control to conveyors, fans, material handling systems, machine tools, and pumps. It features an integral keypad with control keys and local potentiometer. This can be activated right out of the box because no programming is necessary. The 22A-A1P5H204 is designed to meet user needs and global OEM such as cost efficiency and simplicity. It is the smallest and the most cost-effective Allen-Bradley PowerFlex Drive.
The 22A-A1P5H204 features a serial module converter that provides and maintains connectivity. It also has integral RS-485 communication to any available controller with a DFI port. This product is known for having one of the best network solutions, versatility on communications, and programming. The 22A-A1P5H204 PowerFlex is compatible with any device that supports a master RTU, a command RTU, and support standard 03. The 22A-A1P5H204 PowerFlex 4 Drive has 200 to 240 Volts AC single-phase power at 50 to 60 Hertz, 0.2 kW, 0.25 Horsepower, and 1.5 Amps. It comes with several mounting options and an ambient temperature of up to 50 degrees Celsius. The 22A-A1P5H204 comes with a DIN rail mounting feature that makes installation easy on A and B drive frames. Panel mounting is also possible.
