The 1606-XLE240EE power supply module is a switched mode power supply module from Allen-Bradley. More specifically, this power supply module is part of the Allen-Bradley Bulletin 1606 series and it is an ?essential? type of switched mode power supply module that is as simple and compact as possible. The 1606-XLE240EE essential power supply module uses single-phase voltage, and its steady state input current rating is 2.2 Amps at 230 Volts AC and 4.3 Amps at 120 Volts AC single-phase voltage. Its output ratings include 10 Amps of output power, 240 Watts of output power, and its output voltage range is 24 to 28 Volts DC. The 1606-XLE240EE power supply module has been CE certified.
Technical specifications for 1606-XLE240EE
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Switched Mode Power Supply |
| Product Line | 1606 Switched Mode Power Supplies |
| Part Number | 1606-XLE240EE |
| UPC | 662074643912 |
| Weight | 0.75 lbs (0.34 kg) |
| Input Voltage | 180-264V AC |
| Output Power | 240W |
| Output Current | 10A |
| Terminals | Screw |
| Signal | DC-OK |
| Output Voltage | Adjustable |
| Size | Compact |
| Heat Generation | Minimal |
Description

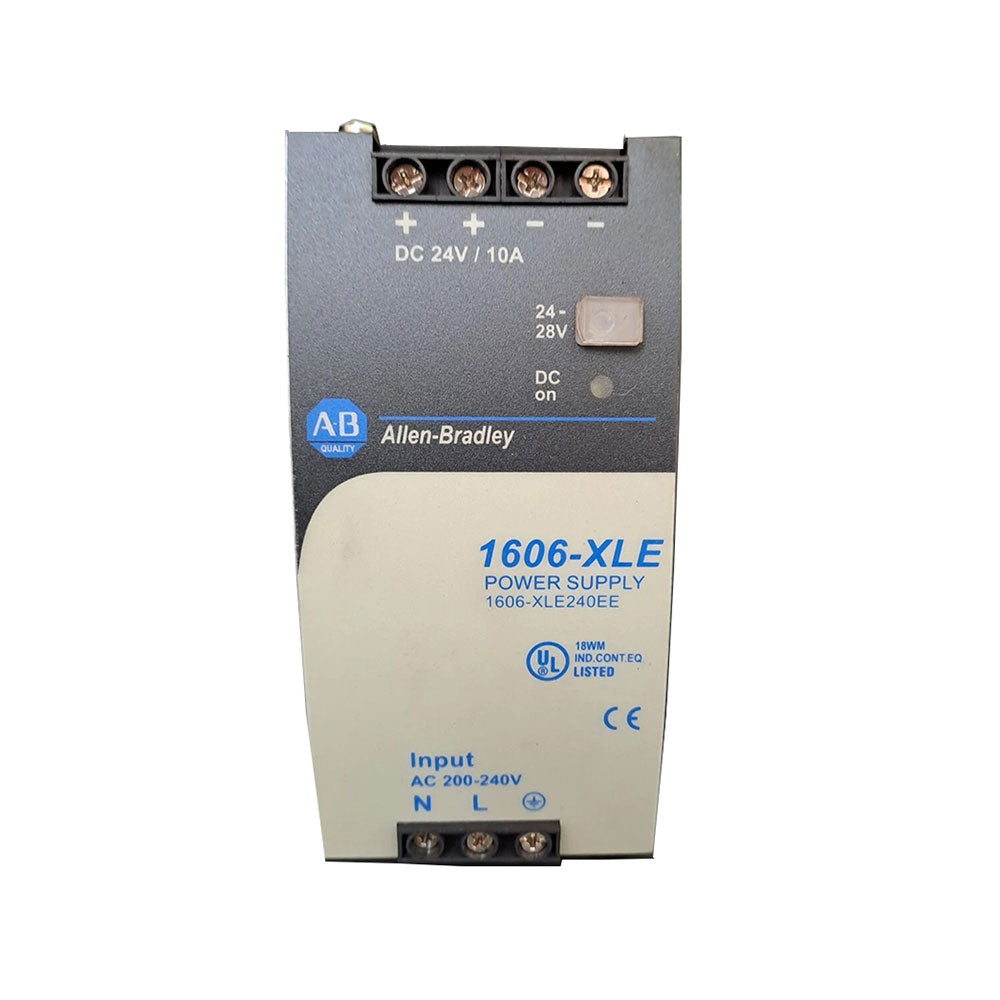

The 1606-XLE240EE 24 Volts DC switched-mode power supply is a reliable DC power supply unit manufactured by Allen-Bradley/Rockwell Automation. It is specialized to work with AC or DC voltage rated at 200 to 240 Volts AC or 210 to 375 Volts DC, respectively. The 1606-XLE240EE power supply is characterized by a high short-circuit current (48 Amps) that enables the reliable initial powering of loads that have unpredictable behavior. The rated output voltage and power of this power supply are 240 Watts and 24.1 Volts DC. It is a well-balanced device with high levels of power and flexibility. Furthermore, it can protect internal circuits and devices on the load side from short-circuits and overloads. If there is an internal defect that can cause a high output voltage, a redundant circuitry restricts the output voltage to 35 Volts DC. Due to its extremely slim construction (60 millimeters), the 1606-XLE240EE power supply can fit into the smallest of industrial automation systems.
The Allen-Bradley 1606-XLE240EE power supply features an ambient operating temperature range of 0 to 70 degrees Celsius, but its 240 Watts power rating is valid only at or below 60 degrees Celsius. For temperatures below 45 degrees Celsius, this power supply has approximately a 20% power reserve. If it is operated at lower temperatures, this device has a minimum of 75,000 hours of life expectancy. The rated efficiency of the unit at 230 Volts AC is 91.3%. The 1606-XLE240EE power supply switched-mode power supply is globally distributed and it has the CSA, c-UL-us, CE, and RCM certifications. The output terminals on the power supply are screw clamped, and there are dual terminals for each pole.
