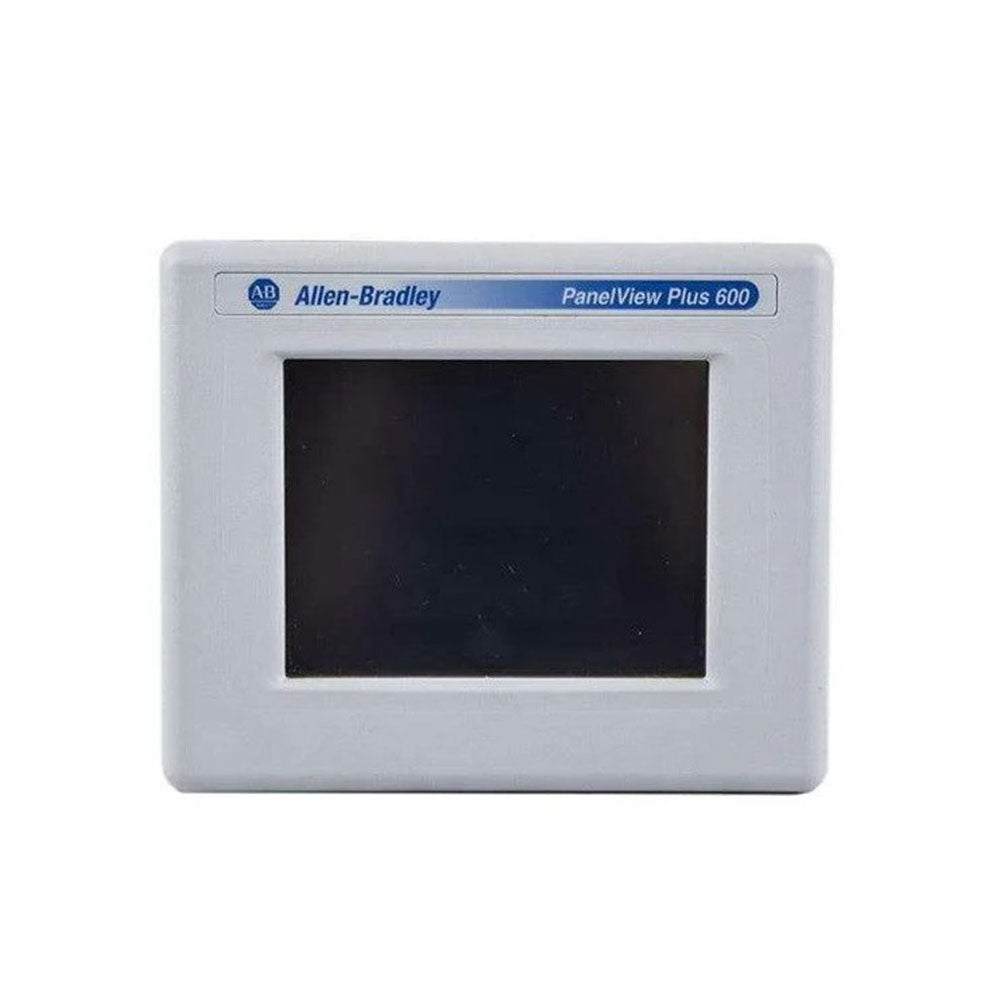

The Allen-Bradley/Rockwell Automation 2711PC-T6C20D terminal is a compact interface terminal in the Panelview Plus 6 Compact terminal series. It is designed to fit into smaller installation spaces than standard Allen-Bradley Panelview Plus terminals are usually able to. The 2711PC-T6C20D compact interface terminal’s 6-inch touchscreen supports color graphics. Its input power rating is 24 Volts DC. The 2711PC-T6C20D compact interface terminal’s memory includes 512 MB of nonvolatile memory and 256 MB of RAM.
Technical specifications for 2711PC-T6C20D
| Manufacturer | Allen Bradley |
|---|---|
| Category | Panelviews |
| Product Line | Panelview Plus 6 Compact |
| Part Number | 2711PC-T6C20D |
| UPC | 612598766079 |
| Weight | 2.06 lbs (0.94 kg) |
| Display Size | 5.5 in. |
| Product Family | PanelView Plus Graphic Terminals |
| Sub Category | PanelView Plus Compact Terminal |
| Operator Input | Touch |
| Display Type | Color active matrix, thin-film transistor (TFT) liquid crystal display (LCD) |
| Display Area | 112 x 84 mm (4.4 x 3.3 in.) |
| Resolution | 320 x 240 |
| Touch interface | Analog resistive |
| Operating force | 10…110 g |
| Actuating lifespan | 1 million presses |
| Terminal Memory | Series A: 5 MB Series B: 10 MB |
| Communication ports | Ethernet, RS-232, 1 USB |
| Power Supply Input Voltage range | 18-30VDC |
| Power Consumption | 25 W max (1.0 A at 24V DC) |
| No. of displays | 25 |
| No. of alarm messages | 200 |
| Display Color | Color |
| Input Type | Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 24V DC |
| Memory | 512 MB nonvolatile memory and 256 MB RAM |
| Enclosure Type | NEMA/UL Type 12, 13, 4X (indoor use only), and IEC IP66 |
Description
The 2711PC-T6C20D is an Allen-Bradley graphic operator terminal. It is specifically part of the PanelView Plus compact operator terminals which comes with a single USB port, Ethernet interface that supports 10/100 Mbps transmission rate, power input terminal and a single CompactFlash type 1 card slot installed at the terminals backpanel.
The 2711PC-T6C20D has specific capabilities. It can be configured to a maximum of 25 displays and 200 alarm messages. Only one connection to a controller is permitted using RSLinx enterprise 5.20 or KEPServer enterprise. Additionally, this operator terminal supports DF1 and DH-485 system protocols through the RS232 port and Ethernet I/P over the Ethernet communication interface.
The 2711PC-T6C20D has a 6-inch Color active matrix, thin-film transistor (TFT) liquid crystal display (LCD) screen with effective viewing area of 112 x 84 mm (4.4 x 3.3 in.), resolution of 320 x 240. It has a backlight with luminance of 200 cd/m2 Nits which is CCFL type with 50,000 operational lifespan. The touchscreen interface is made of an analog resistive touchscreen designed to be operated up to 1 million actuations when operated at a force of 10-110 g.
For communication, this operator terminal supports RSLinx enterprise version 5.20 or higher.
It displays the application status graphically and lets the user control and monitor the application with its Human Machine Interface (HMI). It has a specific functionality limit that requires up to 25 displays and up to 200 alarm messages. The 2711PC-T6C20D can be used with CompactLogix controllers. It has a 6-inch TFT color touchscreen with a resolution of 320 x 240 pixels. It has dimensions of 6.0 x 7.28 x 3.86 in., a weight of 1.74 lbs., 18 - 30V DC input power, and 256 MB RAM.
For communication, it supports an Ethernet port and an RS-232 serial port. External devices can be connected to it. It supports Panel Mounting with NEMA, UL, or IP rated enclosures. To read content documents, it has a built-in PDF viewer.
