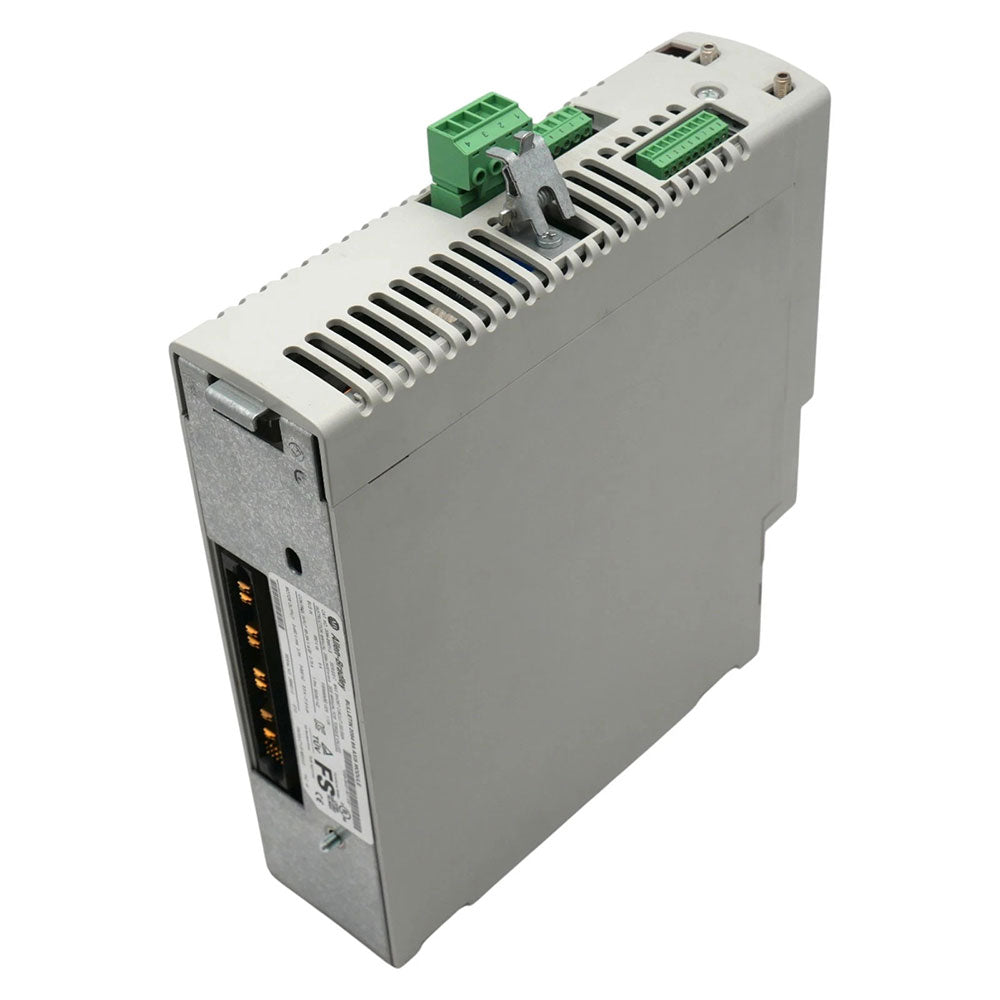

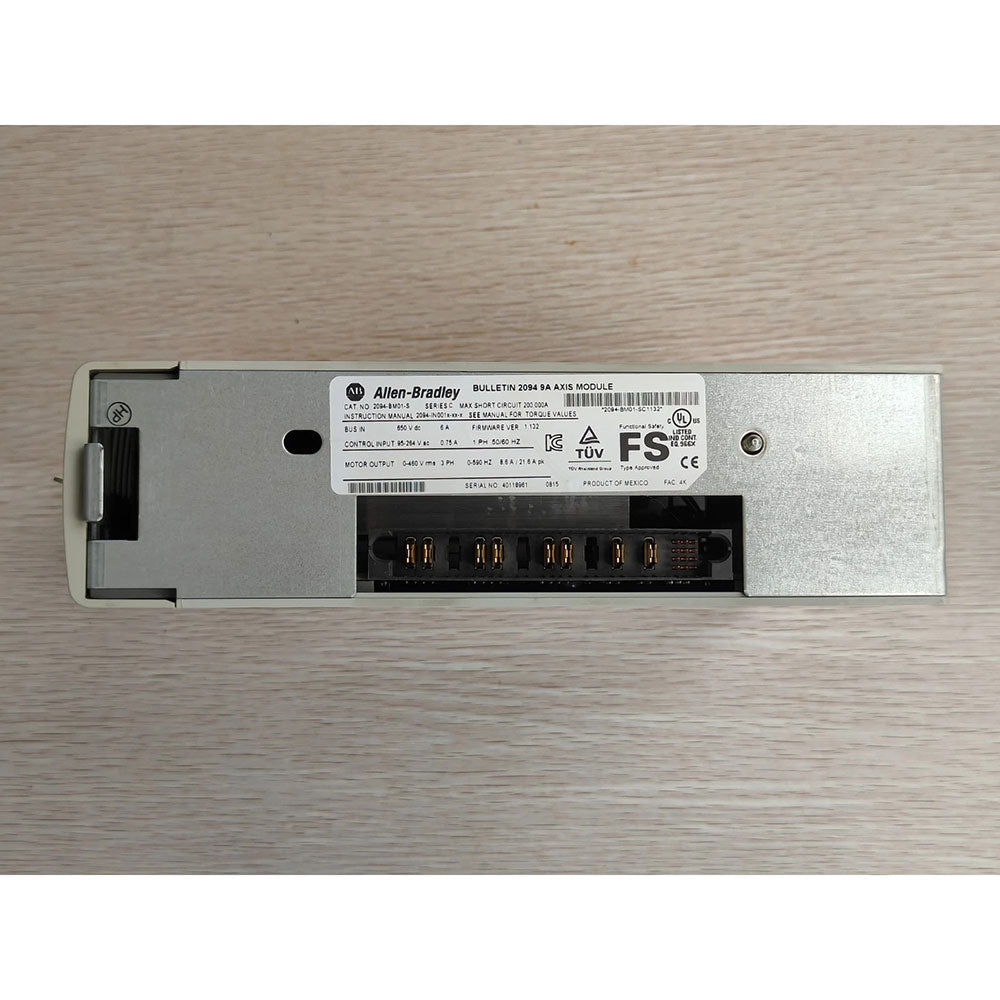

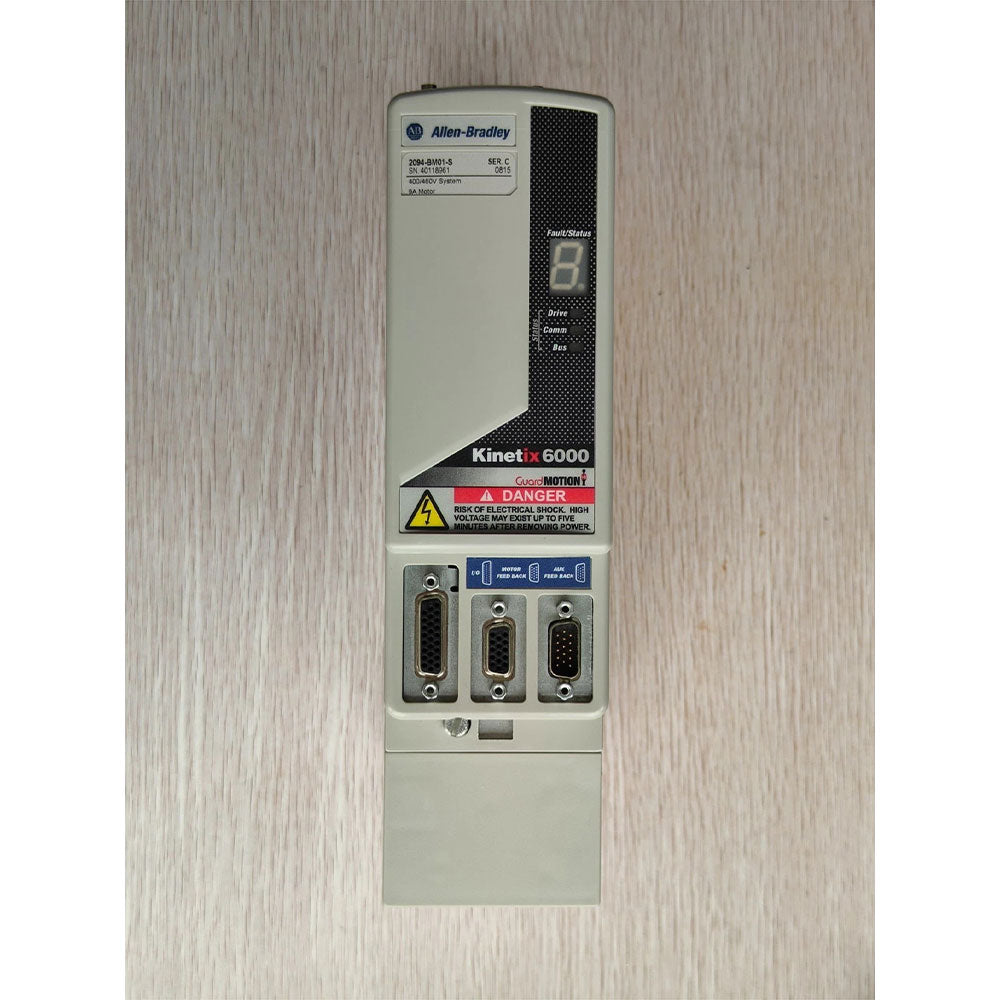

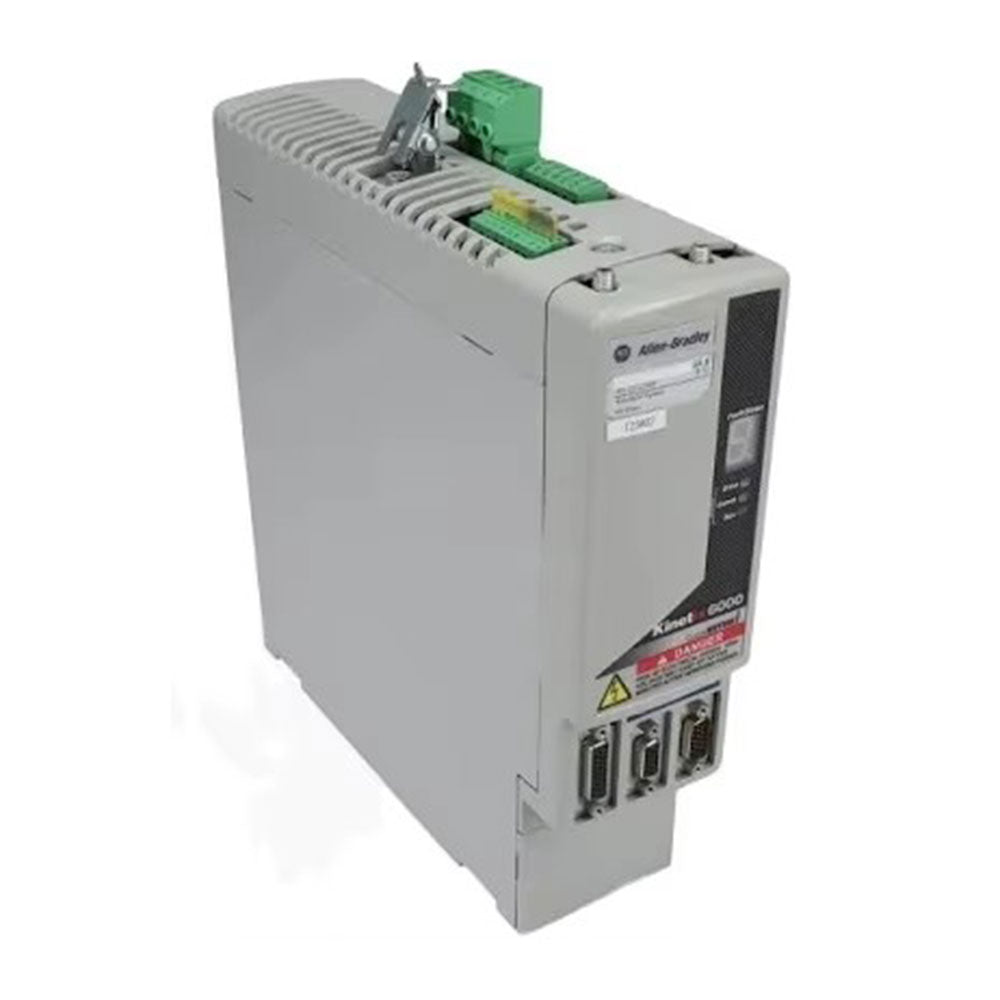

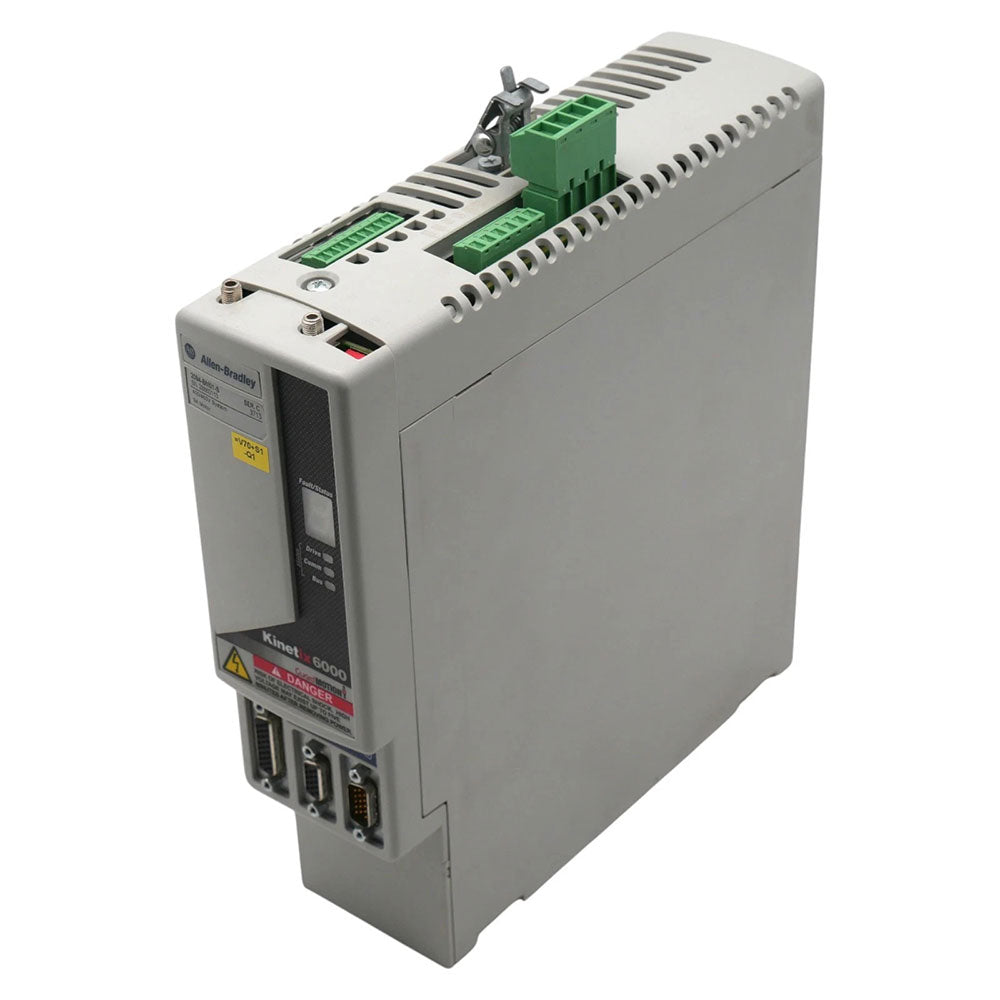

The Allen Bradley 2094-BM01-S axis module is engineered for integration within Kinetix 6000 systems. With a nominal input voltage of 650 volts DC, it provides substantial power output capabilities. The unit delivers continuous power output rated at 3.9 kW, with the ability to handle peak demands of 5.6 kW through its internal shunt feature.

Further examining its electrical specifications, the module's continuous RMS current is rated at 6.1 amps, which translates to a continuous peak current capability of 8.6 amps in sine wave form. For operation, it employs a PWM frequency of 8 kHz, ensuring efficient motor control. The device excels in terms of dynamic response, featuring a velocity loop bandwidth of 500 Hz and a current loop bandwidth reaching 1300 Hz.

Designed with an internal shunt resistor of 115 ohms, the module maintains thermal management with an effective continuous power dissipation of 50 watts. With an overall efficiency rating at an impressive 98%, this axis module serves as a robust solution for precise motion control applications, meeting extensive operational demands.
