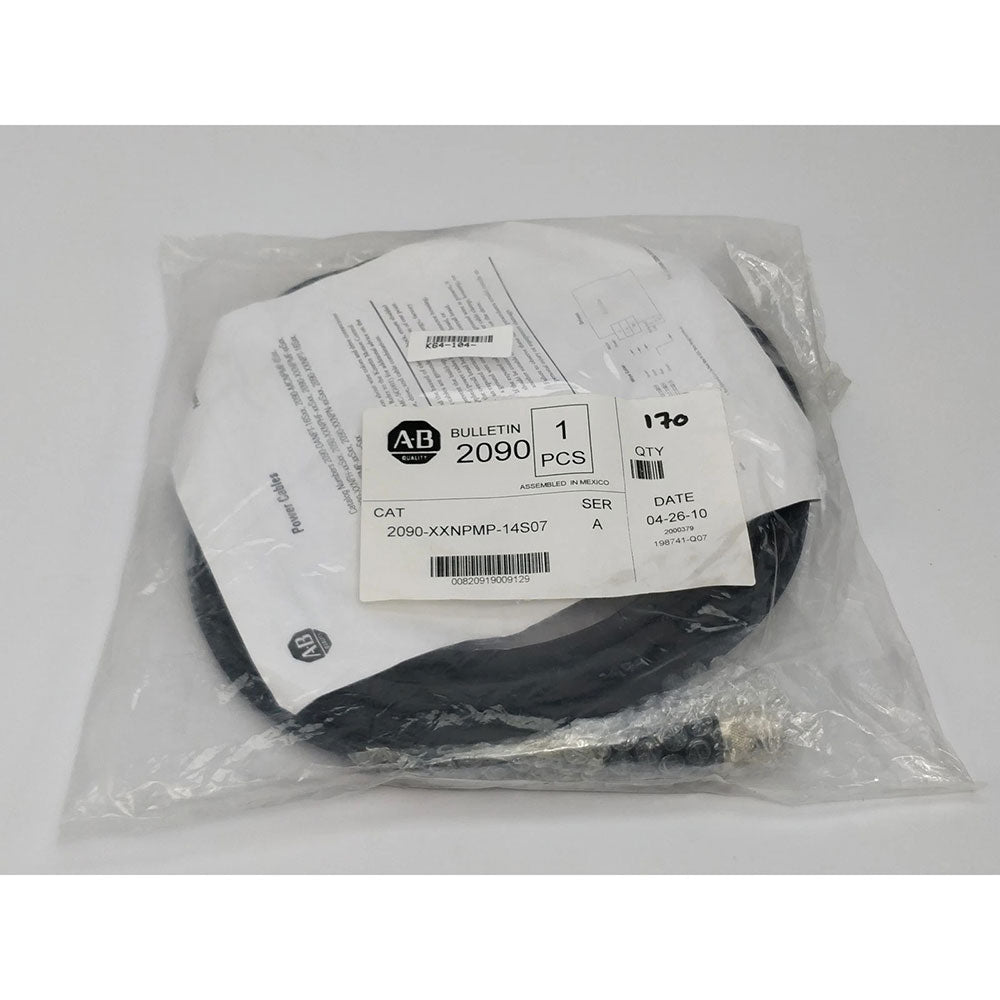

The 2090-XXNPMP-14S07 is a motor power extension cable from Allen Bradley's 2090 series, specifically designed for conveying power to motors. This cable measures 7 meters (22.9 feet) in length and is configured for both motor power and brake connections.
Technical specifications for 2090-XXNPMP-14S07
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Motor Power Extension Cable |
| Product Line | 2090 Cables |
| Part Number | 2090-XXNPMP-14S07 |
| Weight | 2.69 lbs (1.22 kg) |
| UPC | 820919009129 |
| Length | 7 Meters (22.9 Feet) |
| Cable Configuration | Motor Power and Brake |
| Wire Gauge (Power) | 14 AWG (2.5 mm²) |
| Flex Rating | Non-Flex (Static) |
| Connector A (Cable Side) | SpeedTec DIN Circular (Male Pins) |
| Connector B (Motor Side) | SpeedTec DIN Circular (Female Sockets) |
| Locking Mechanism | SpeedTec (1/4 Turn) |
| Pinout | Straight-Through |
| Brake Conductors | 18 AWG (Shielded Pair) |
| Jacket Material | Industrial TPE (Thermoplastic Elastomer), Orange color |
Description
The Allen Bradley 2090-XXNPMP-14S07 serves as a motor power extension cable intended for static installations. Its overall length is 7 meters (22.9 feet), which makes it convenient for various setups where additional reach is required. This cable supports a motor power configuration along with brake functionality to ensure efficient operation.
For power supply, this cable utilizes a 14 AWG (2.5 mm²) wire gauge, ensuring ample current capacity for motors while maintaining suitability for industrial applications. Additionally, the brake conductors consist of 18 AWG, utilizing a shielded pair for enhanced signal integrity. The jacket material is made from industrial-grade TPE (thermoplastic elastomer) and is distinctly orange in color, promoting visibility.
The cable ends feature SpeedTec DIN circular connectors, with the male pins located on the cable side and the female sockets present on the motor side. The locking mechanism operates with a 1/4 turn for a secure fit. Connections are arranged in a straight-through pinout, adhering to common standards in motor applications. This design provides the reliability and ease of use expected in modern industrial environments.
