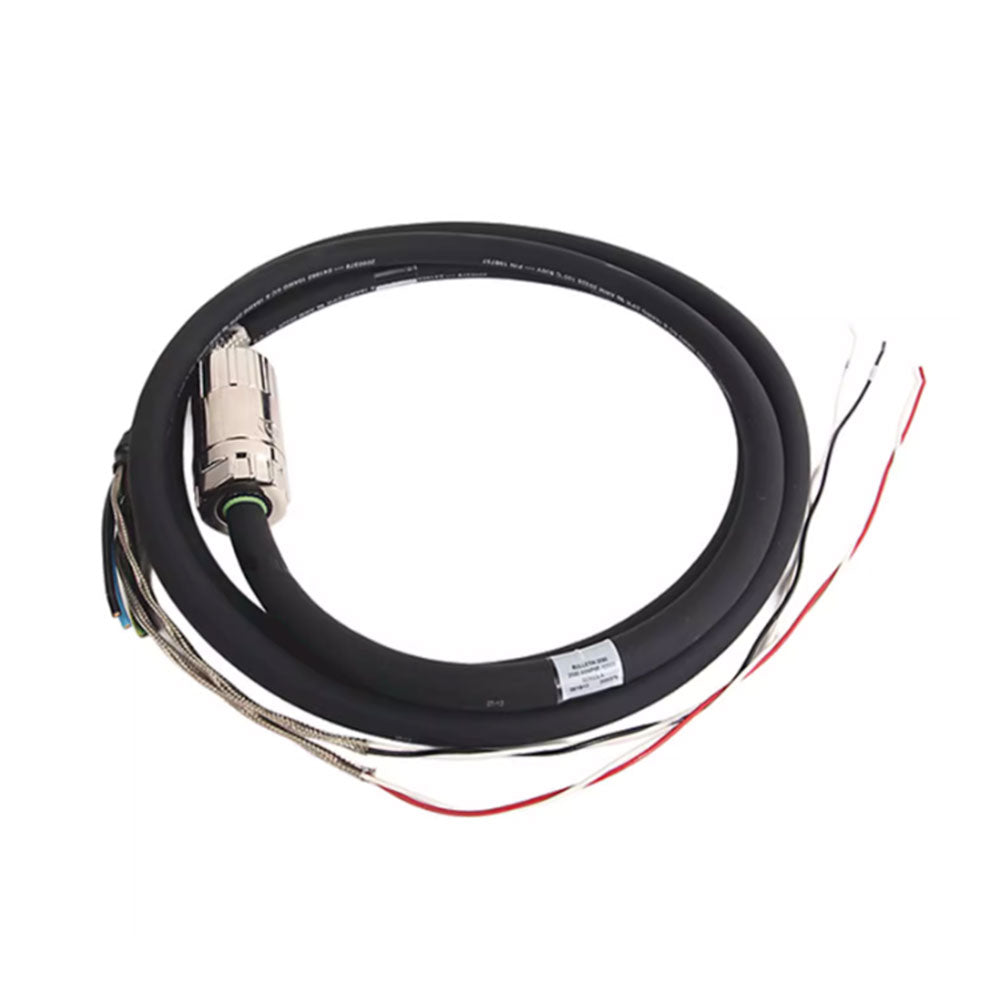

The 2090-XXNPMP-10S60 cable is a non-flex MP series motor power cable from Allen-Bradley. It has a length of 60 meters. The conductor size of the cable is 10 AWG. The shielded cable helps to connect older servo motor models with modern motors that are equipped with bayonet connectors. The shielded power cables should be properly grounded at a minimum of 1 point to prevent electrical shocks and injuries to the operators. The overall cable shield should be bonded to the connector house, and one section of the overall shield should be exposed for connection to the ground to prevent the buildup of hazardous electrical energy. The 2090-XXNPMP-10S60 cable shield should always be connected to a ground wire. The exposed cable braid should be connected to the power cable clamp or use another chassis.

The cable length between the drive and the motor should never exceed 50 meters for the Allen-Bradley Kinetix 5500 drives and 90 meters for the Allen-Bradley Kinetix 5700 drives. The 2090-XXNPMP-10S60 cable should never be tightly gathered or coiled together in order to prevent building up heat or electrical energy. During the installation process, the connecting motors should be properly disconnected from the power source. The cable comes with an IP 67 protection rating which helps to protect the cable against harsh environmental conditions. The 2090-XXNPMP-10S60 cable is also resistant to direct sunlight and oil. The cable is equipped with NFPA 79, UL, and IEC color coded conductors. It is manufactured using halogen-free material for mechanical and chemical durability. The 2090-XXNPMP-10S60 cable is rated to be suitable for 6.5 million flex cycles with a 10x bend radius.
