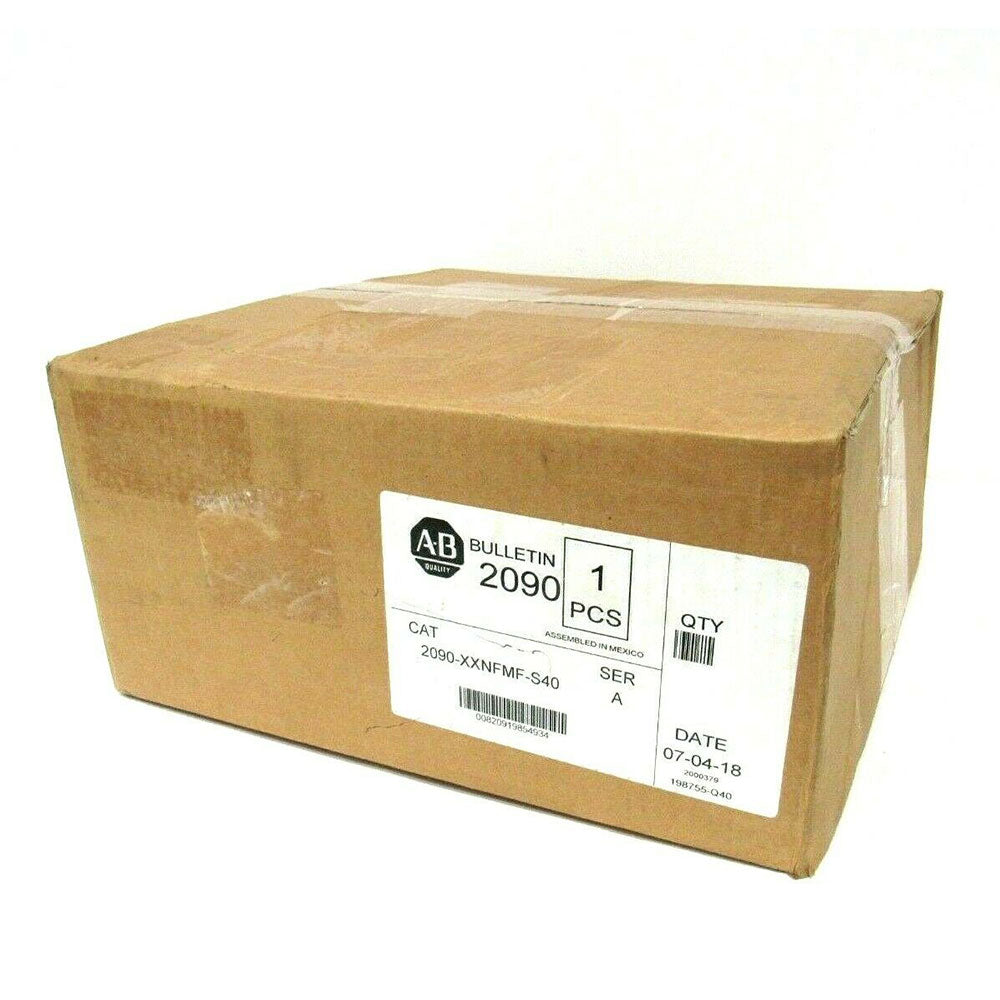

The 2090-XXNFMF-S40 cable is an Allen-Bradley cable and it comes with the DIN Type 4 connector. The non-flex cable features a length of 40 meters and it is black in color. The 2090-XXNFMF-S40 cable's conductor size is 28 AWG feedback, and 16 AWG power and 22 AWG power for 5 Volts and 9 Volts, consecutively. The 2090-XXNFMF-S40 cable has a cable diameter of 0.4 inches while the voltage rating is 30 Volts and the cable is made using industrial TPE material. The 2090-XXNFMF-S40 cable is made for high resolution or incremental applications and it is KC certified. The cable is meant for use with the RDD series direct-drive motors. The Allen-Bradley 2090 series motor cables feature the SpeedTec connectors. The motor cables are designed to deliver optimal performance with the Kinetix drives, ensuring the best in class features and standard compliance ratings.

The single cable design of the 2090-XXNFMF-S40 cable includes power, feedback, and brake conductors. The single motor cables feature 3 different cable materials. These are the TPE material for standard non-flex and continuous flex cables, the PVC material for standard cables, and the halogen-free PUR material for the continuous flex cable. The 2090-XXNFMF-S40 cable is a NFPA 70 compliant cable and it comes with a low capacitance design for ensuring maximum system power density. The 2090-XXNFMF-S40 cable is designed using the SpeedTec connection system and it comes with an encoder communication data pair with a state-of-the-art noise rejection system. When using the 2090-XXNFMF-S40 cable, clamp the exposed area of the cable braid and the shield or drain wires under the shield clamp. The clamp should be turned over where necessary to ensure that the cable achieves a proper ground connection.
