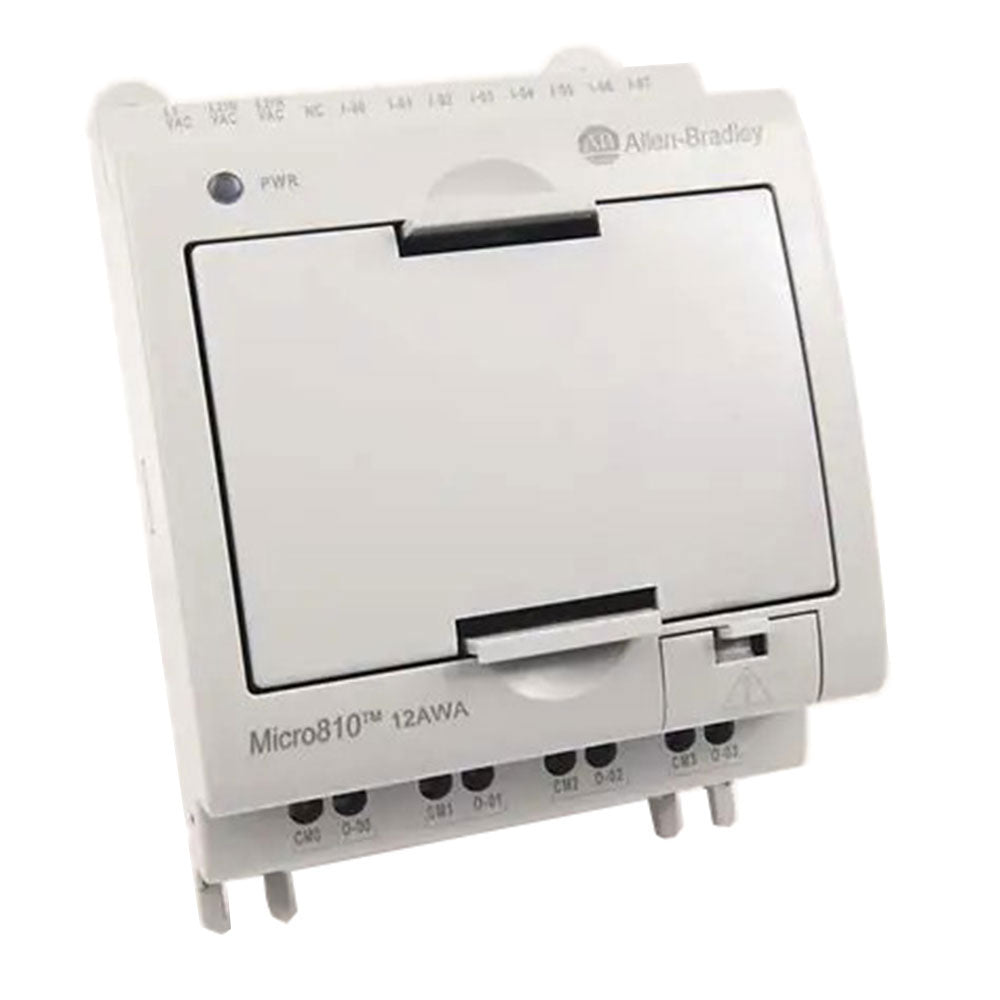

The Allen-Bradley/Rockwell Automation 2080-LC10-12AWA programmable logic controller or PLC is a 12-point programmable logic controller from the Allen-Bradley Micro 810 series. Its 12 I/O points are 4 relay outputs, 4 digital inputs, and 4 configurable inputs that can be digital or analog. The 2080-LC10-12AWA programmable logic controller has a nominal on-state voltage rating of 120/240 Volts AC and an on-state voltage range of 79 to 265 Volts AC at 47 to 63 Hertz. It has an IP 20 environmental protection rating and the North American Hazardous Location Approval rating. The 2080-LC10-12AWA programmable logic controller can support solid and stranded copper wire.
Technical specifications for 2080-LC10-12AWA
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Programmable Controller |
| Product Line | Micro 810 |
| Part Number | 2080-LC10-12AWA |
| UPC | 885630058047 |
| Weight | 2.25 lbs (1.02 kg) |
| Power | 120-240V AC |
| Number of I/O | 8 Input(4 digital, 4 analog/digital); 4 Output |
| Supply Voltage Range | 85-263V |
| Supply Frequency Range | 47-63 Hz |
| Voltage Range | 100-240V AC, 50/60 Hz |
| Input I/O Rating | 120-240V AC |
| On-state Voltage nom./min./max. | 120240V AC, 79V AC, 265V AC |
| Off-state Voltage max. | 40V AC |
| Off-state Current max. | 0.095 mA |
| Operating Frequency nom. | 50/60 Hz |
| Operating Frequency | 47-63 Hz |
Description
The Allen Bradley 2080-LC10-12AWA part is a Programmable Logic Controller belonging to the series Micro810 of controllers. It has a supply Voltage range of around 85 to 263 Volts, at a frequency between 47 and 63 Hertz. This module can be configured by way of an embedded LCD display, with no programming necessary for configuration. In addition to the LCD display, the 2080-LC10-12AWA supports a USB adapter. It cannot, however, support any Micro800 plug-ins.
This unit can be mounted by way of its DIN rail mounting latch. It has a total of eight (8) inputs, four (4) of which are digital, and four (4) of which are digital/analog configurable. It also contains four (4) relay type outputs. Its dimensions are approximated at 3.58 x 2.95 x 2.32 inches (or 91 x 75 x 59 millimeters), with a weight of 0.448 pounds (or 0.203 kilograms).
The 2080-LC10-12AWA controller has a voltage 120 to 240 Volts AC input on a frequency 50 or 60 Hertz and consumes around 5 Volts of power.
This unit should be wired with copper conductors only, sized at 22 to 14 AWG (0.32 to 2.1 millimeters squared) if the wire is solid copper, or 22 to 16 AWG (0.31 to 1.3 millimeters squared) if it is stranded copper wire. Both options must have insulation rated for 90 degrees Celsius (194 degrees Fahrenheit) maximum. There can be two wires on each signal port as well as on each power port. Its enclosure type meets the IP20 rating.
