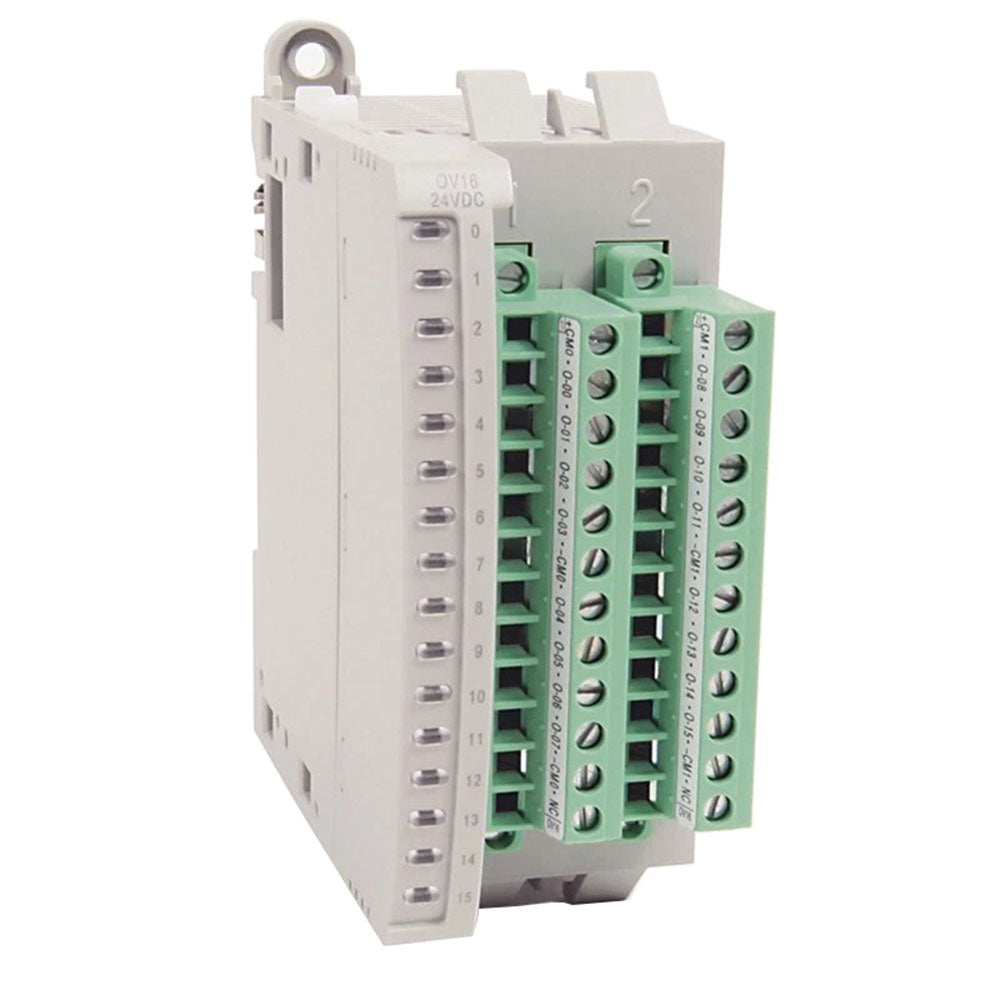

The 2085-OV16 output module is an Allen-Bradley expansion output module from the Micro 850 series. It is manufactured to add 16 outputs to an Allen-Bradley Micro 850 series controller. The 2085-OV16 expansion output module has 16 sink transistor outputs that support voltage ratings of 12/24 Volts DC. The operating voltage range supported by this output module is from 10 to 30 Volts DC. The 2085-OV16 expansion output module has an IP 20 environmental protection rating.
Technical specifications for 2085-OV16
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Expansion I/O Module |
| Product Line | Micro 850 |
| Part Number | 2085-OV16 |
| UPC | 885630082301 |
| Weight | 1.88 lbs (0.85 kg) |
| Inputs | N/A |
| Input Type | N/A |
| Outputs | 16 |
| Output Type | 12/24V DC Sink |
Description
The Allen Bradley model number 2085-OV16 is a 16-point, Discrete, Digital output expansion module with a 12 to 24 Volt DC Sink Transistor Output. It belongs to the Micro 800 expansion I/O modules series, that is compatible with the Rockwell Micro850 controllers.
The 2085-OV16 Micro850 discrete expansion output module provides On/Off actuation to the connected loads (for example relay coil, Solenoids, Alarm/pilot lamps, horns, and more). This unit’s on-state voltage has a range of about 10 to 30 Volts DC, and it can sink up to 0.5 A at 30 Volts DC per each output channel and 8 A per the entire (16 channel) module. The maximum on-state voltage drop is 1.0 Volts DC at 0.5 A and the maximum off-state leakage current is 1 mA at 30 Volts DC. For additional protection against surge and overvoltage fault conditions, The Micro850 2085-OV16 can achieve a continuous isolation for voltages up to 50 Volts, and up to 720 Volts AC to channel to the system bus isolation for a 60-second duration before damage.
The Micro850 2085-OV16 discrete O/P module has a yellow status LED to indicate the On/Off state of each one of the 16 output channels available, which simplifies fault isolation and Troubleshooting Procedures.
