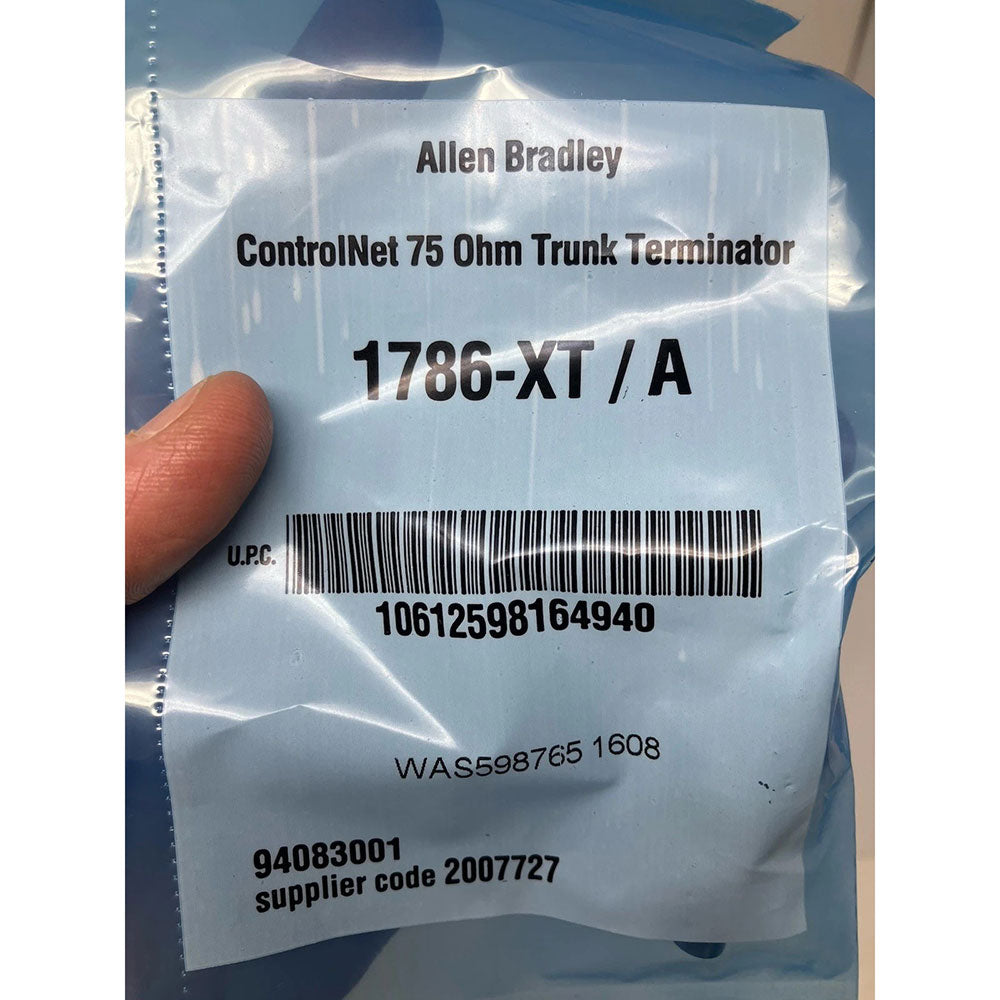

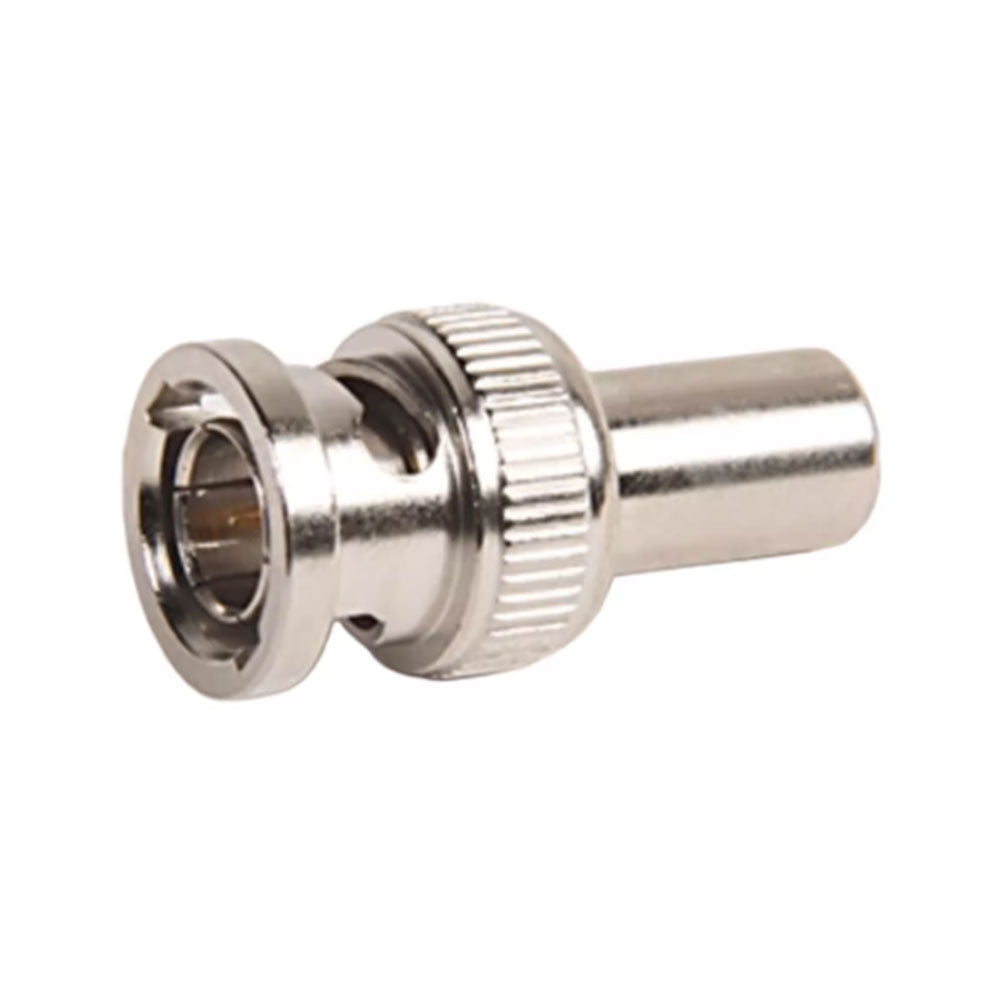

The 1786-XT from Allen Bradley is a specialized connector in the Bulletin 1786 series. Designed primarily for ControlNet communication, it features a coaxial BNC plug with a terminal resistor and maintains a 75-ohm impedance for reliable signal transmission.
Technical specifications for 1786-XT
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Connector |
| Product Line | 1786 Repeaters |
| Part Number | 1786-XT |
| UPC | 612598164943 |
| Weight | 3.00 lbs (1.36 kg) |
| Connector Type | Coaxial BNC Plug, Terminal Resistor |
| Communication Option | ControlNet |
| Impedance | 75 ohms |
| IP Rating | IP 20 |
| Required Operating Locations | Nonhazardous Locations |
| Compatible Media Systems | ControlNet Media Systems |
| Marine Certified | Yes |
| Storage Temperature | -20 to 80 degrees Celsius |
Description
The 1786-XT connector, crafted by Allen Bradley, is part of the Bulletin 1786 product line, which specializes in enhancing communication capabilities for ControlNet systems. This connector utilizes a coaxial BNC plug design paired with a terminal resistor, delivering a consistent impedance of 75 ohms. This design ensures effective signal integrity within networking configurations.
Intended for deployment in nonhazardous locations, the 1786-XT connector has an IP rating of IP 20, indicating a level of protection against solid objects but not against water ingress. Its certification for marine applications speaks to its reliability and durability in demanding conditions. Furthermore, this connector model supports a diverse range of environmental scenarios with a storage temperature capacity extending from -20 to 80 degrees Celsius, accommodating a variety of usage situations. Designed for compatibility with ControlNet media systems, the 1786-XT connector enables robust automated communication.
