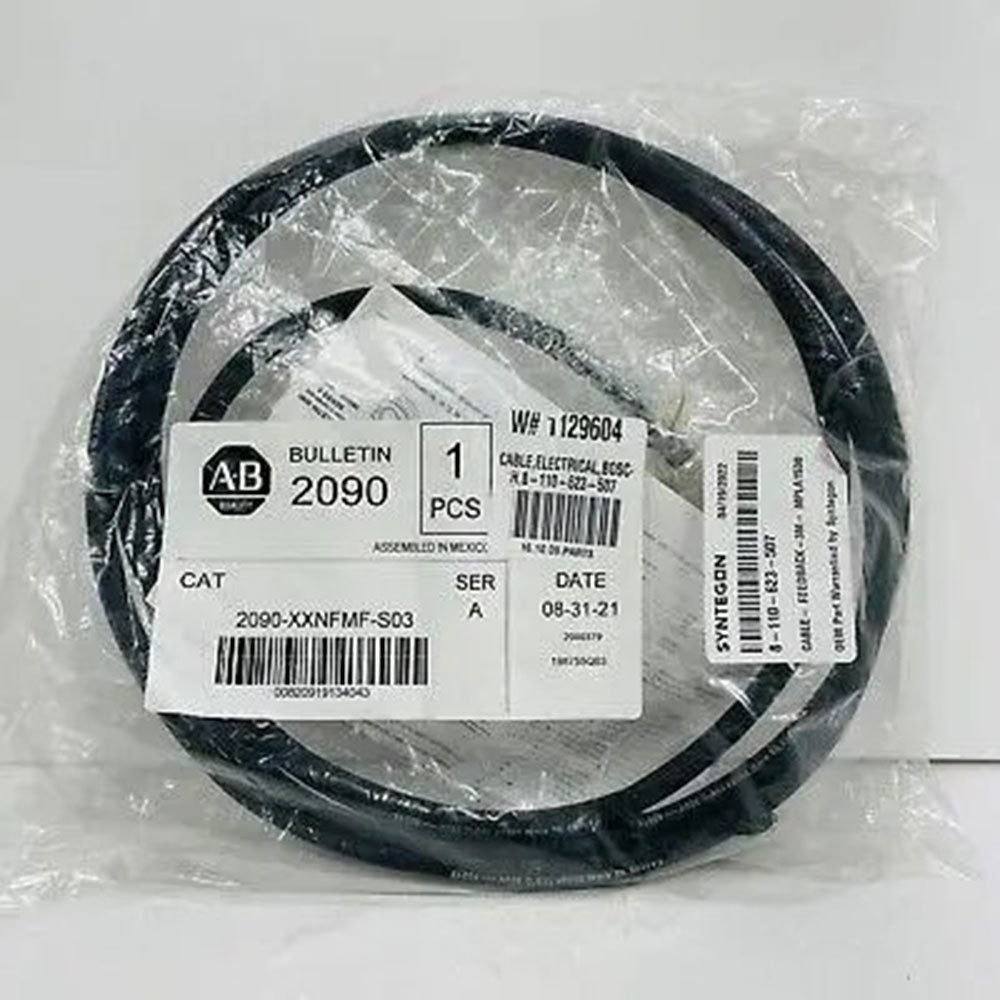

The 2090-XXNFMF-S03 is an actuator cable manufactured by Allen Bradley, designed specifically for feedback applications. With a length of 3 meters, it provides reliable connectivity with threaded DIN connectors and flying leads at the drive end.
Technical specifications for 2090-XXNFMF-S03
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Actuator Cables |
| Product Line | 2090 Cables |
| Part Number | 2090-XXNFMF-S03 |
| Weight | 1.25 lbs (0.57 kg) |
| UPC | 820919134043 |
| Cable Type | Feedback cable |
| Connector Type | Threaded DIN |
| Drive‑end Connection | Flying leads |
| Cable Length | 3 m |
| Flexibility Type | Non‑flexible |
| Cable Jacket Material | Thermoplastic Elastomer |
| Cable Jacket Color | Black |
| Bend Radius | 70 mm |
| Wire Size | 28 AWG |
| Conductor Size | 0.081 mm² |
Description
The Allen Bradley 2090-XXNFMF-S03 is classified as an actuator cable, tailored for feedback mechanisms in various industrial scenarios. Spanning 3 meters in length, this cable incorporates a threaded DIN connector for secure attachments.
At the drive end, it utilizes flying leads, allowing for straightforward connections in complex setups. Constructed with non-flexible materials, the thermoplastic elastomer jacket adds a layer of protection, colored black to withstand environmental conditions.
It accommodates a bend radius of 70 mm, optimizing installation procedures, while the wire size is set at 28 AWG, highlighting its suitability for various applications without compromising performance. The conductor measures 0.081 mm², making it efficient for transmitting signals required in precise actuator functions. This cable’s robust construction and specific design enable seamless integration into actuator systems.
