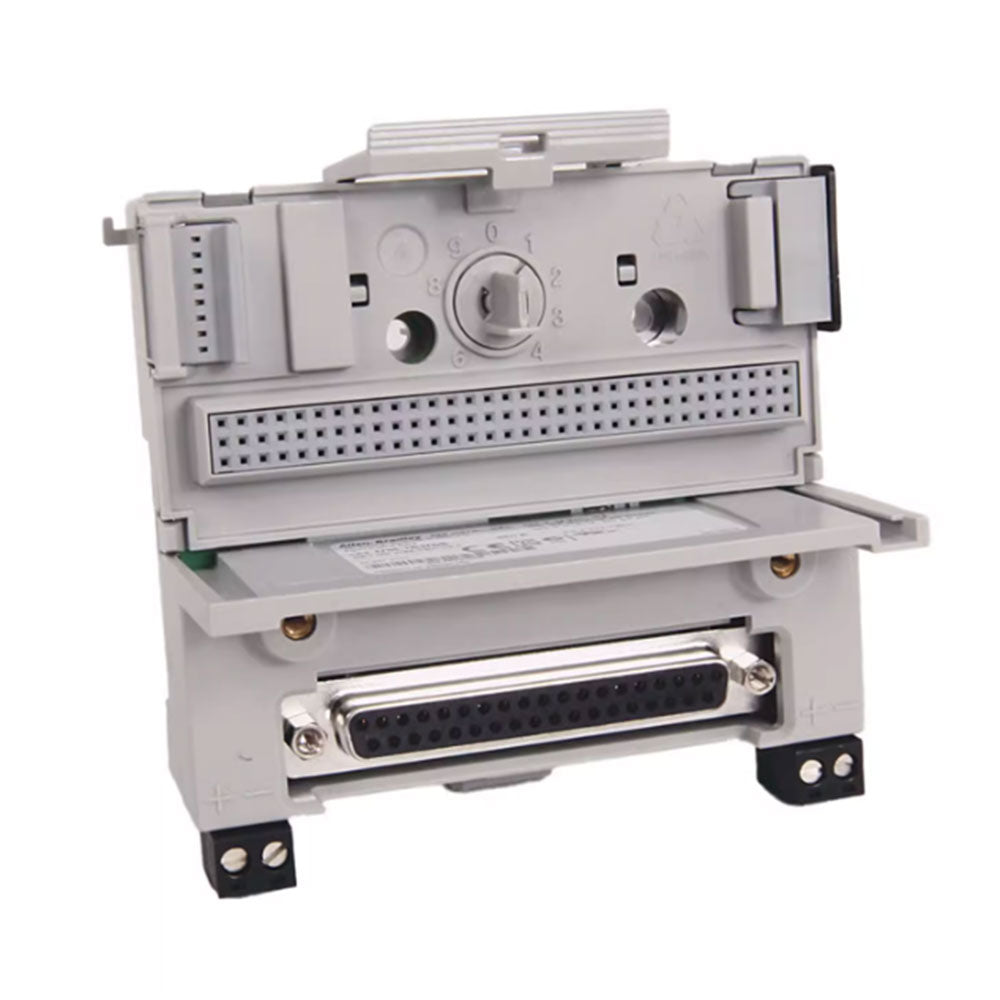

The 1794-TB37DS by Allen-Bradley is a terminal base designed for versatile applications. This unit utilizes a D-shell termination type and supports a maximum current capacity of 10 amperes per module, with individual pin capacities of up to 5 amperes.
Technical specifications for 1794-TB37DS
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Terminal Base |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-TB37DS |
| UPC | 612598318582 |
| Weight | 3.00 lbs (1.36 kg) |
| Description | D-shell terminal base unit |
| Termination Type | D-Shell |
| Current Capacity per Module | 10 Amps maximum |
| Current Capacity per Pin | 5 Amps |
| Mounting Option | DIN Rail |
| Connection Options | 37-pin digital and analog connections |
| Enclosure | Open Style |
| Operating Temperature | 0 to 55 degrees Celsius (32 to 131°F) |
| Relative Humidity | 5 to 95%, non-condensing |
Description
The Allen-Bradley 1794-TB37DS serves as a terminal base unit within the Flex I/O 1794 series. This model is built with a D-shell termination type, facilitating easy connections. The 1794-TB37DS terminal base can accommodate a maximum current of 10 amps across its modules, while each pin can handle up to 5 amps. It is designed to mount directly onto DIN rails, optimizing installation efficiency in panel setups.
The 1794-TB37DS terminal base unit's connection capabilities include a 37-pin arrangement designated for digital and analog I/O. The unit is crafted in an open-style enclosure, presenting flexibility and ease of access for wiring. The 1794-TB37DS terminal base can operate in temperatures ranging from 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit), making it suitable for varied environments. Additionally, it is designed to function effectively in conditions with relative humidity levels maintained between 5% and 95% without the risk of condensation impacting performance.
