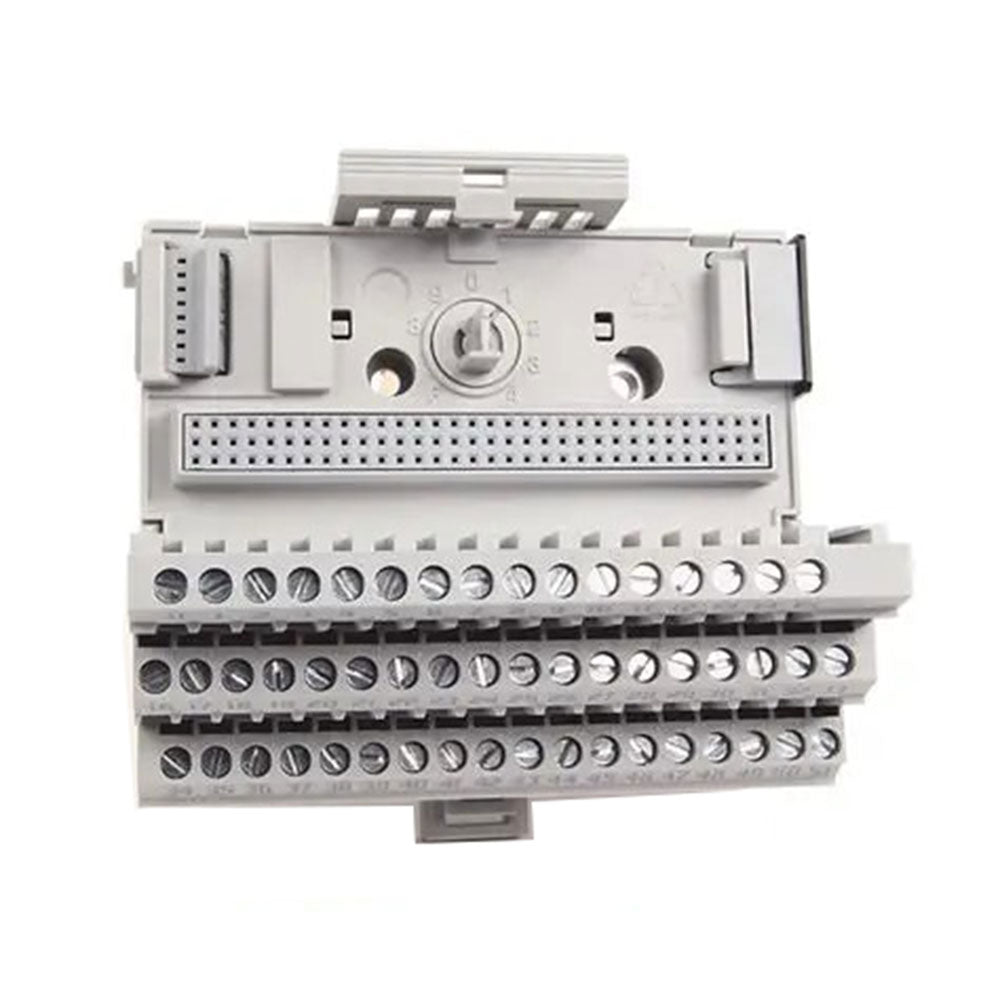

The 1794-TB3K is a terminal base from Allen Bradley's Flex I/O series, designed to accommodate 16 input connections. This model features cage clamp terminals and operates within a temperature range of -20 to 70 degrees Celsius.
Technical specifications for 1794-TB3K
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Terminal Base |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-TB3K |
| UPC | 612598317172 |
| Weight | 3.00 lbs (1.36 kg) |
| Terminal Type | Cage Clamp |
| Number of Input Connections | 16 |
| Terminal Screw Torque | 0.56 to 0.79 Nm |
| Maximum FlexBus Supply Voltage Rating | 5V DC, 640 mA |
| Maximum I/O Terminal Supply Voltage Rating | 2 A |
| Maximum V/COM Terminals Supply Voltage Rating | 125V AC/DC, 50/60 Hertz, 10 A, or 60V AC, 50/60 Hertz and 75V DC (ATEX/UKEX/IECEx) |
| Continuous Isolation Voltage | 125V with Basic Insulation |
| North American Temperature Code | T4A |
| Approximate Dimensions with Module Installed | 94 x 94 x 69 mm |
| Operating Temperature | -20 to 70 degrees Celsius |
| Operating Shock | 30 g |
| Non-Operating Shock | 50 g |
Description
The 1794-TB3K, produced by Allen Bradley, serves as a terminal base specifically within the Flex I/O 1794 series. Engineered for reliable performance, it features a cage clamp terminal type, providing secure connections for multiple input lines. This terminal base supports a total of 16 input connections, allowing it to efficiently manage various signal transmissions within industrial setups.
With an operational temperature range from -20 to 70 degrees Celsius, the 1794-TB3K is suitable for a range of environments. It can handle a maximum FlexBus supply voltage rating of 5V DC and a supply current of up to 640 mA. The terminal base also supports a terminal supply voltage rating of 2 A, offering adequate power for connected devices.
The maximum voltage ratings for V/COM terminals include ratings of 125V AC/DC at 50/60 Hertz with a current capacity of 10 A, or 60V AC at 50/60 Hertz/ and 75V DC for specific compliance standards (ATEX, UKEX, IECEx). Continuous isolation voltage is maintained at 125V using basic insulation, ensuring safe operation in varied conditions.
In terms of dimensions, this terminal base measures approximately 94 x 94 x 69 mm when a module is installed. For environmental resilience, the 1794-TB3K can withstand operational shock ratings up to 30 g, as well as non-operational shock ratings of 50 g. This combination of features makes it a robust choice for applications in industrial automation environments.
