The 1783-US4T1H is a switch with 4 Fast Ethernet RJ45 Ports, 1 Fast Ethernet Singlemode Preinstalled Fiber SFP Module SFP Ports, 1.69 A Max Inrush Current, and a 24V (12
Technical specifications for 1783-US4T1H
| Manufacturer | Allen Bradley |
|---|---|
| Category | PLCs |
| Product Line | Stratix 2000 |
| Part Number | 1783-US4T1H |
| UPC | 885630533971 |
| Weight | 3.00 lbs (1.36 kg) |
| Total Ports | 5 |
| RJ45 Ports | 4 Fast Ethernet |
| SFP Ports | 1 Fast Ethernet Singlemode Preinstalled Fiber SFP Module |
| Max Inrush Current | 1.69 A |
| Power Input | 24 V (12-48 V DC, 18-30 V AC, 50/60 Hz), SELV |
| Max Power Consumption | 3.4 W |
| Nom Current | DC 180 mA; AC 360 mA |
| Max Current | DC 380 mA; AC 750 mA |
| Wire Size: Ground Connection | 2.5 mm2 (14 AWG) Copper Wire Suitable for 187 degree F (86 degrees C) Above Surrounding Ambient Temperature Outside the Enclosure, with Suitable Ring Terminal |
| Wire Size: DC Power Connection | 4.5 x 5.0 in -lb (0.50 x 0.56 N - m) |
| Power Terminal Screw Torque | 8.05 in -lb |
| Max Ground Terminal Screw Torque | Open-Style/None |
| Enclosure Type Rating | 4.51 x 3.02 x 1.17 in (114.5 x 76.8 x 29.6 mm) |
Description

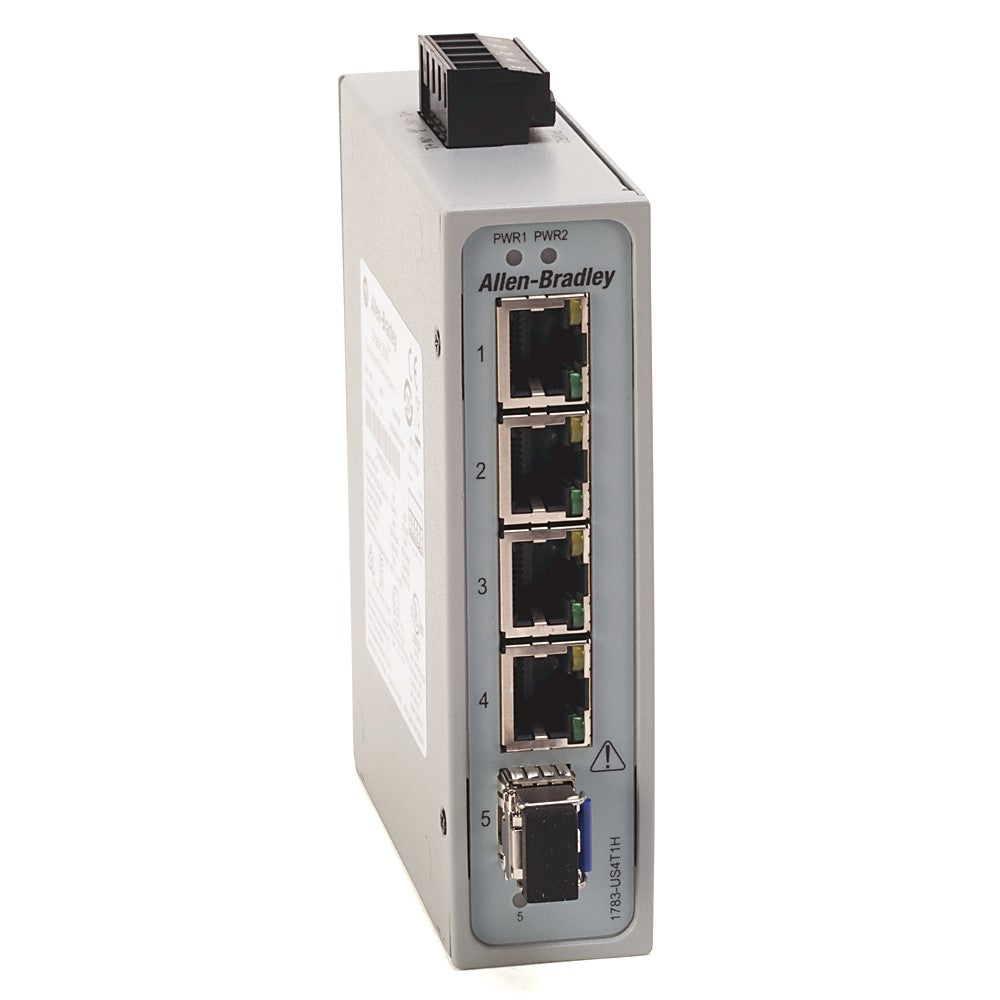

The 1783-US4T1H by world-class manufacturer Allen Bradley is an unmanaged industrial Ethernet switch used for networking. Using this switch increases the network’s elasticity and performance, and eases any network traffic problems in addition to having full protection.This switch has four (4) fast RJ45 Ethernet ports and one (1) fast SFT (Single-mode Fiber Pre-installed) Ethernet port giving it a total of five (5) ports. With flash memory (SD) and a compact design, this unit is made to maximize storage space.
This unit has an average temperature range that extends from -40 degrees Celsius to 70; its input voltage can range between 12 and 48 Volts DC or 18 to 30 Volts AC, at between 50 and 60 Hertz, and it can be mounted on a DIN-rail. Its Nominal AC/DC current is around 360/180 mA respectively, while its Maximum DC current is 380 mA, its Maximum AC current being 750 mA. At maximum, it consumes 3.4 Watts of power.
The 1783-US4T1H unit requires a specific type of wire with a size of 2.5 square millimeters (14 AWG) made of copper, which must be able to withstand temperatures up to 187 degrees Fahrenheit (86 degrees Celsius) for its ground connection. Its power terminal screw has a torque of 8.05 inches per pound, with an Open-Style ground terminal screw.
The 1783-US4T1H has reduced the problem of unwanted traffic by adding a protection system to control the unit’s daily traffic and make the network communication path more open. This type of switch also uses AOP (CIP) and real-time diagnostics to approach solutions to the presented problems. Adding power inputs can increase the input capacity and minimize time in harsh environments. This module meets the ROHS material restriction standards, increasing its durability and compatibility, and has dimensions of 4.51 x 3.02 x 1.17 inches (114.5 x 76.8 x 29.6 millimeters).
