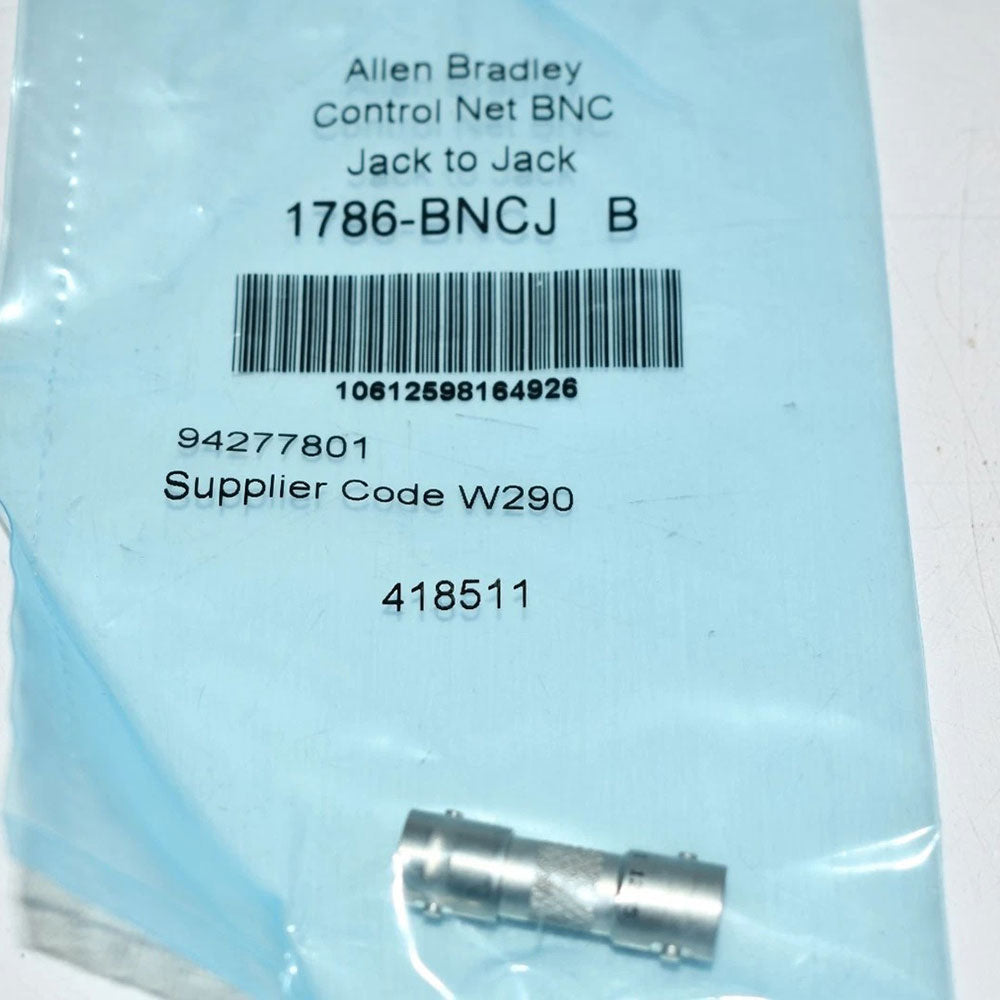

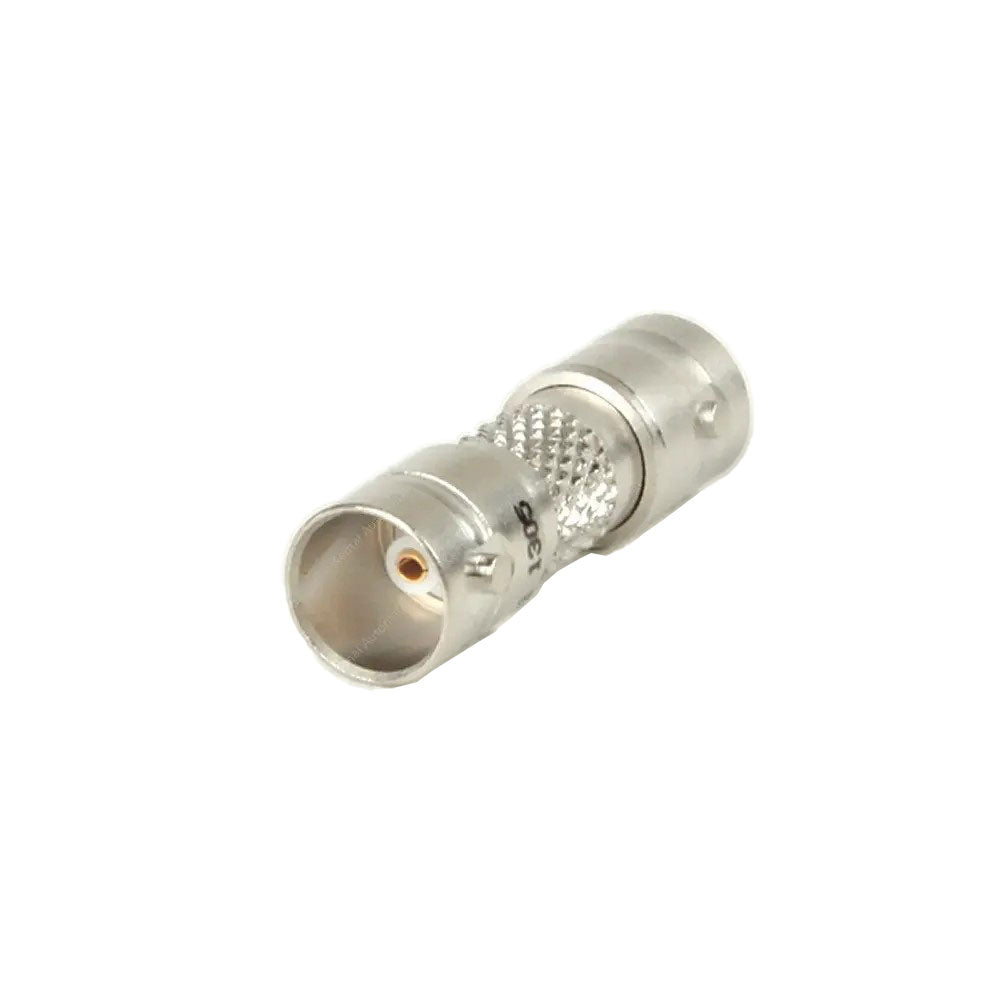

The Allen Bradley 1786-BNCJ is a coax bullet connector that serves as a reliable inline coupler for signal transmission. Designed with a BNC jack-to-jack configuration, this component facilitates easy connections using RG-6 coaxial cable. With its impedance rating of 75 Ω, it ensures compatibility with a variety of communication systems.

This connector features a female-to-female connection style, ideal for joining two cables together inline. Moreover, the design is compact and tailored for effortless installation in confined spaces. The lock-fit retention mechanism secures the connection, reducing the risk of signal interruptions. The shielding in the signal path enhances the integrity of the signal, providing reliable performance in diverse operational environments.

Constructed with a PTFE dielectric, the 1786-BNCJ is robust and effective at carrying signals across frequencies typically encountered in the ControlNet band. Its contact plating is nickel, ensuring durability and reliable conductivity over time. The IP20 rating denotes that this device is appropriate for indoor applications, providing sufficient protection against dust and other debris. Overall, the Allen Bradley 1786-BNCJ is engineered for reliable performance in various coaxial cable applications, delivering efficiency and stability in signal transmission.
