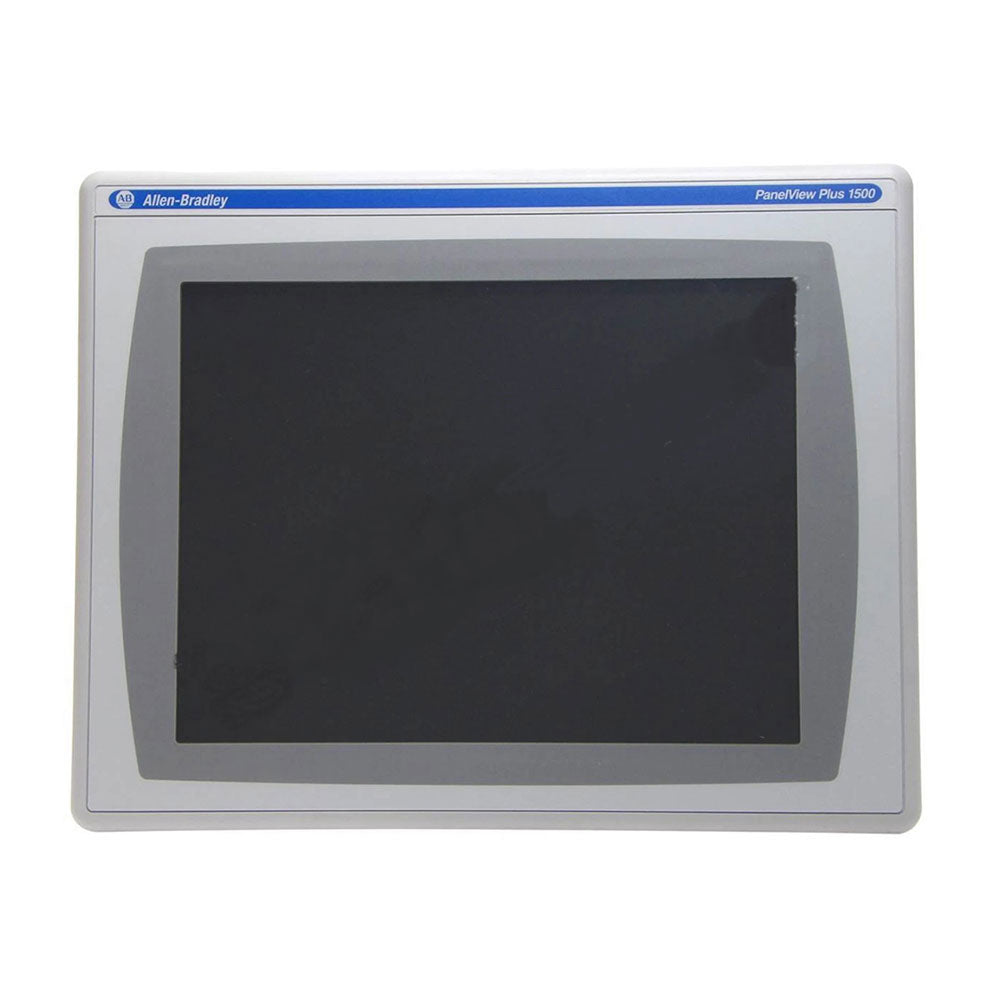

The Allen-Bradley 2711P-T15C4D8 is a Panelview Plus 6 1500 Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 15.0-inch colored display with embedded Ethernet, RS232, and Two (2) USB communication port. This operator terminal has a touchscreen input interface.
Technical specifications for 2711P-T15C4D8
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | PanelView Plus 6 1500 Operator Terminals |
| Product Line | Panelview Plus 6 |
| Part Number | 2711P-T15C4D8 |
| UPC | 612598876785 |
| Weight | 7.00 lbs (3.18 kg) |
| Backlight | CCFL, 50,000 hours min at 25 ° C (77 °F), field replaceable |
| Display Type | Color active-matrix TFT |
| Display Size | 15.0 inches |
| Product Family | PanelView Plus 6 Operator Terminals |
| Operator Input | Touch |
| Lifecycle status | End of life |
| Display Area | 304 x 228 mm (12.0 x 9.0 in.) |
| Resolution | 1024 x 768, 18-bit color graphics |
| Touch | 1 million presses |
| Internal memory | 512MB Flash Memory / 512 MB Random Access Memory |
| Integrated ports | Ethernet, RS-232, 2 USB host |
| Input Voltage range | 18-30VDC |
| Input Type | Touchscreen |
| Communication | Ethernet and RS-232 ports |
| Input Power | 18 to 32 Volts DC |
| Memory | 512 MB RAM |
| Communication Cable | 2711-NC13 |
| Series | Series A and Series B |
| Enclosure Rating | NEMA/UL Type 12,13, 4X and IEC IP54, IP65 |
| Display Module | 2711P-RDT15C |
| Logic Module | 2711P-RP8D |
| Mounting Hardware | 2711P-RTMC |
Description
The PanelView Plus 6 operator terminal with catalog number 2711P-T15C4D8 is an Allen-Bradley manufacture visualization hardware. This operator terminal specifically belongs to the sub-category PanelView Plus 6 1500.
The 2711P-T15C4D8 is generally referred to as Human Machine Interface (HMI) device. Via the analog resistive touchscreen with actuation lifespan of 1 million presses. This touch interface permits interaction and initiation of commends without the need to use HMI keypads.
The 15-inch screen with resolution of 1024 x 768 in 18-bit color graphics with effective viewing area of 304 x 228 mm (12.0 x 9.0 in.). The screen comes with a field-replaceable backlight with expected lifespan of 50,000 hours min at 25 ° C (77 °F).
The 2711P-T15C4D8 is designed for installations identified as Class I, Div 2, Groups A, B, C and D, Class II, Div 2 Groups F and G and Class III Hazardous Locations. This operator terminal is flush mounted to an enclosure with applicable protection ratings of NEMA/UL Type 12, 13, 4X (indoor use only), and IEC IP54, IP65 rated enclosures. Create a panel cutout with dimension of 154 (6.08) H x 220 (8.67) W.
The user is able to control the operator interface via the Touchscreen to input information and data. This unit is powered using an 18 to 32 Volt DC power input. This 2711P-T15C4D8 unit has a 512 MB of RAM and 512 MB non-volatile internal memory. The approximate shipping weight and dimensions of this unit are 13 pounds and 20 x 14 x 8 inches. This operator terminal has an Ethernet port that connects to a controller on an Ethernet/IP network. This port can work with application transfers and printing as well. The Ethernet/IP screen displays and allows the user to modify some of the Ethernet/IP communication settings for a PanelView terminal.
