The Allen-Bradley 5069-L320ER controller is a standard type of CompactLogix 5069 and 5380 industrial controller. The 5069-L320ER standard controller has 2 MB of user memory but no safety memory. It can handle 1000 programs per task and it can handle 32 tasks at a time. The 5069-L320ER standard controller can be used in star, linear, and device level ring Ethernet network topologies.
Technical specifications for 5069-L320ER
| Manufacturer | Allen Bradley |
|---|---|
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-L320ER |
| UPC | 889508071251 |
| Weight | 1.00 lbs (0.45 kg) |
| Programming Languages | Sequential Function Chart, Function Block Diagram, Structured Text, and Ladder Diagram |
| Communication Ports | 1 Type B 2.0 Full-Speed USB and 2 Ethernet/IP Ports |
| Supported Ethernet/IP Network Topologies | Device Level Ring, Star, and Linear |
| Application Memory | 2 Megabytes |
| Module Type | CompactLogix Controller |
| Non-volatile memory | 2 GB via 1784-SD2 (ships with the controller) |
| Local I/O modules | 16 I/O modules |
| Communication rate, Ethernet | 10 Mbps / 100 Mbps / 1 Gbps |
| No. of Ethernet nodes | 40 |
| No. of supported sockets | 32 |
| Communication rate, USB | 12 Mbps |
| Ethernet/IP Nodes | 40 Ethernet/IP Nodes |
| I/O Expansion | 16 I/O |
| Motion Axes | 0 Motion Axes |
| Pulse Latching Supported | Yes |
| Pattern Matching Supported | Yes |
Description

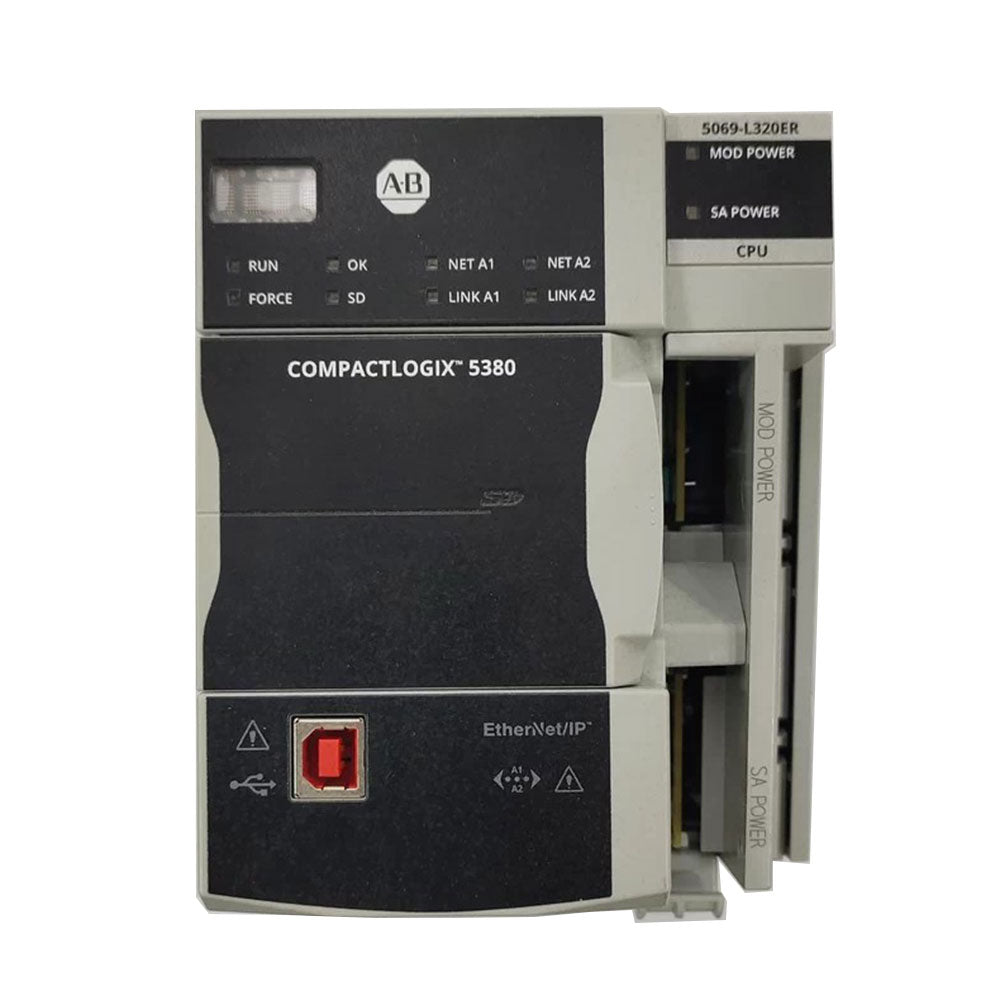

The Allen-Bradley 5069-L320ER is a Standard controller from the 5380 CompactLogix product family. This controller is categorized as a Programmable Automation Controller (PAC) that is used in industrial automation requirements. This controller features modern connectivity capabilities and supports direct communication with visualization systems, controllers and other devices.
The 5069-L320ER mainly features 2 MB user memory and 2GB non-volatile memory provided by the 1784-SD2 Secure Digital (SD) card that ships with the controller. The non-volatile memory is expandable up to 32GB with the use of 1784-SDHC32, 32 GB SD card. Other compatible memory cards for use with this controller includes 1784-SD1 (1 GB), 1784-SDHC8 (8 GB) and 9509-CMSDCD4 (4 GB) CodeMeter CmCard card.
This controller uses the Compact 5000 I/O modules. It may serve as local I/O module wherein up to Sixteen (16) I/O modules may be installed. Distributed I/O architecture is also supported with the use of an Ethernet I/P communication adapter. Communication with Ethernet I/P adapters are accomplished via the built-in Two (2) Ethernet communication interface that supports liner, star and Device Level Ring (DLR) topologies. Supported communication rates are 10 / 100 / 1000 Mbps in full duplex mode.
Each task may handle up to 1000 programs using all event triggers.
The maximum number of EtherNet/IP nodes supported by this module is 40. The maximum socket interfaces that are supported in this module is 32 sockets. The Ethernet performance of this module is 10 Mbps, 100 Mbps, and 1 Gbps with full-duplex only. The capacity of this module is 2 MB. The Module Power bus voltage of the Allen-Bradley 5069-L320ER is from 18 to 32V DC. If you connect or disconnect the cable while the field side power is on, an electrical arc can occur. This may cause an explosion in hazardous locations. The Allen-Bradley 5069-L320ER measures 5.67 x 3.86 x 5.39 in. The weight of this module is around 1.693 lb. The operating temperature of this module is 32 to 140 °F, the storage temperature is -40 to 185 °F, and the maximum surrounding air temperature is 60 °C. The relative humidity of this module is from 5 to 95% without condensation. The Allen-Bradley 5069-L320ER has an operating shock of 30 g (3 pulses, 11 ms) and a nonoperating shock of 50 g (3 pulses, 11 ms). The enclosure type of this module is None (open-style enclosure).
