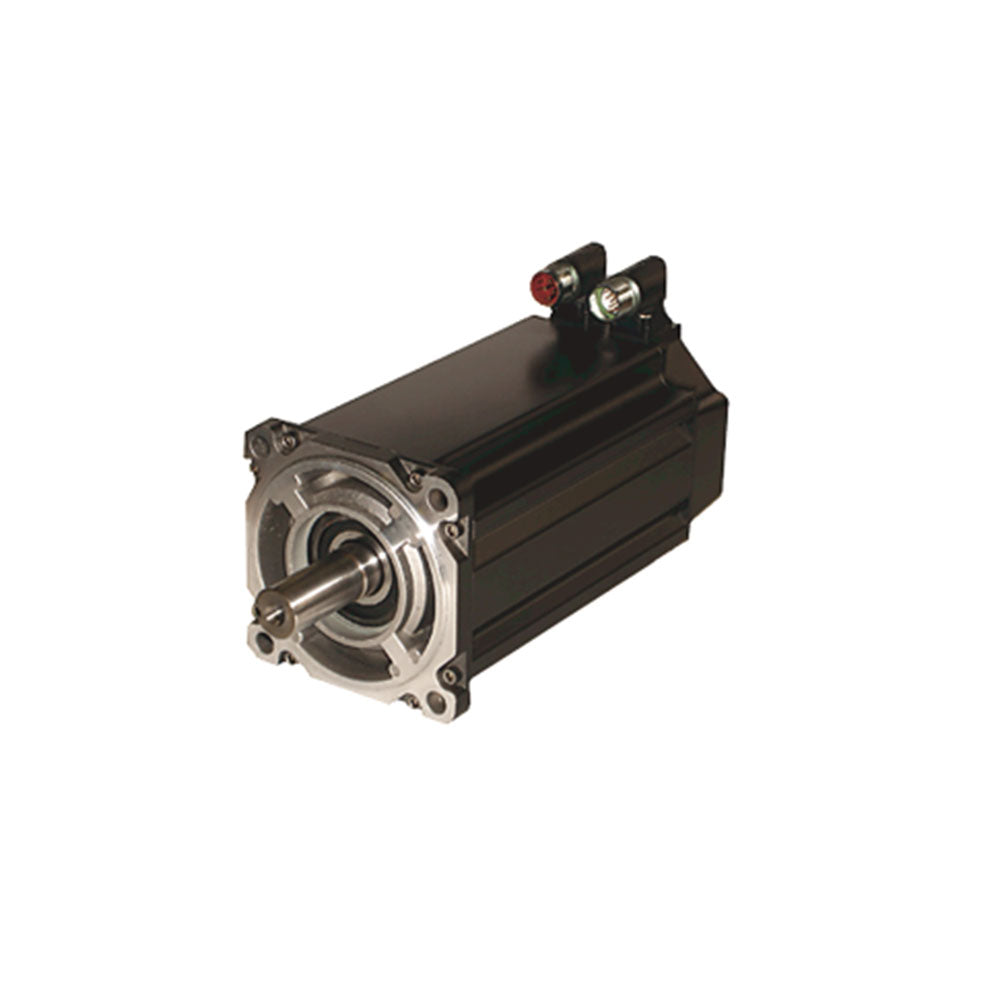

This MP low inertia synchronous servo by Allen Bradley/Rockwell Automation is a 5000 rpm rated compact servo. This MPL Series AC motor has a hall incremental encoder installed in the servo. This low rotor inertia motor has a length of 1 in. This motor is a 100 mm frame size motor and comes w/o braking capability in the motor. In addition, it can be connected by DIN style (circular) cable connectors which are pre-installed on this high quality motor.
Technical specifications for MPL-A310P-HJ72AA
| Manufacturer | Allen Bradley |
|---|---|
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-A310P-HJ72AA |
| UPC | 820919978791 |
| Weight | 6.31 lbs (2.86 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 200 Volts AC |
| Frame Size | 100 millimeters |
| Magnetic Stack Length | 1 inches |
| Rated Speed | 5000 rpm |
| Feedback | 2000-line encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Brake | No brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
Description
The Allen-Bradley MPL-A310P-HJ72AA brushless servo motor is a premium magnet rotary servo motor from the Allen-Bradley MP series of servo motors that are built to provide considerably high torque in a very compact design. These motors are built for the stringent demands of industrial motion systems, and they are used with the Allen-Bradley Kinetix servo drives families (the 6500, 300, 6200, 350, and 6000 families). The MPL-A310P-HJ72AA servo motor has a base rotor speed of 5000 rpm, with a rated power output of 0.7 kilowatts, and it belongs to the 200 Volts AC voltage class motors, with a 230 Volts AC nominal rating. This motor is capable of delivering a continuous torque rating of 14 pounds on an inch at 4.9 Amps of current, and a peak torque value of 32 pounds on an inch at 14 Amps of peak stall current. The MPL-A310P-HJ72AA servo motor does not come with a 24 Volts braking option, but it has a 2000-line encoder board that is capable of providing enhanced feedback for smooth and precise control.
The MPL-A310P-HJ72AA servo motor can retain its motor identity via an onboard memory, which is designed to automatically upload the motor identity to any connected motion control system at the start-up. It offers flexible connectivity, via its circular DIN right angle connector, which is capable of 180-degree rotation, and it comes with a shaft key option for easy use. The MPL-A310P-HJ72AA servo motor has a 100 millimeters (IEC 72-1) frame mounting size and an IEC mounting flange, and a standard IP51 enclosure rating. The MPL-A310P-HJ72AA servo motor is designed for use within a 0 to 95% non-condensing relative humidity range, and a 0 to 40 degrees Celsius operating temperature range.
