Allen-Bradley |1746-BAS SLC 500 BASIC Module
Allen-Bradley |1746-BAS SLC 500 BASIC Module
Regular price
$300.00 USD
Regular price
$350.00 USD
Sale price
$300.00 USD
Unit price
/
per
Technical Specifications for 1746-BAS
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 1746-BAS |
Series | SLC 500 |
Module Type | SLC BASIC Module |
Communication Ports | PRT1:RS-232/423, -422, -485, PRT2:RS-232/423, -422, -485; DF1 PRT3:DH485 |
Backplane Current (5 Volts) | 150 milliamps |
Indicators | ACT; 485; PRT1; PRT2; FAULT; BAT LOW; LED 1; LED 2 |
Backplane Current (24 Volts) | 40 milliamps |
Noise Immunity | Standard NEMA |
Operating Temperature | 32 to 140 degrees Fahrenheit |
Communication | RS-232/423, RS-422, RS-485, DH-485 |
Memory | 24 KB, RAM |
Clock/Calendar Accuracy | ±1 minute/month at 25 °C (77 °F) +0, -6 minute/month at 60 °C (140 °F) |
UPC | 10611320312291 |
Vibration | Displacement: 0.015 in., peak-to-peak at 5...57 Hz Acceleration: 2.5 g at 57...2000 Hz |
UPC | 10662468250037 |
Operating Shock | 30 g |
About 1746-BAS

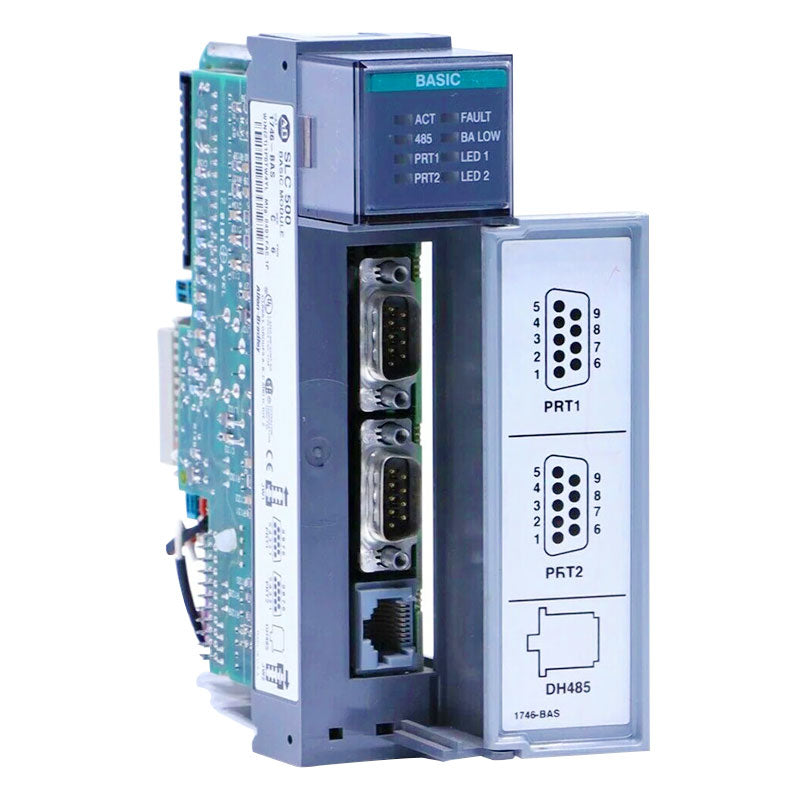

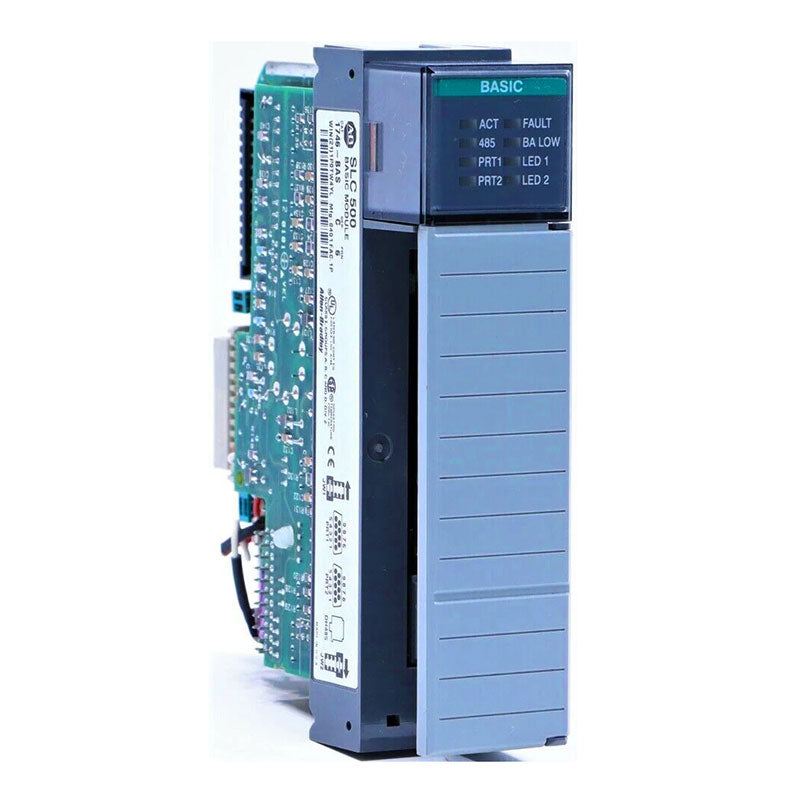

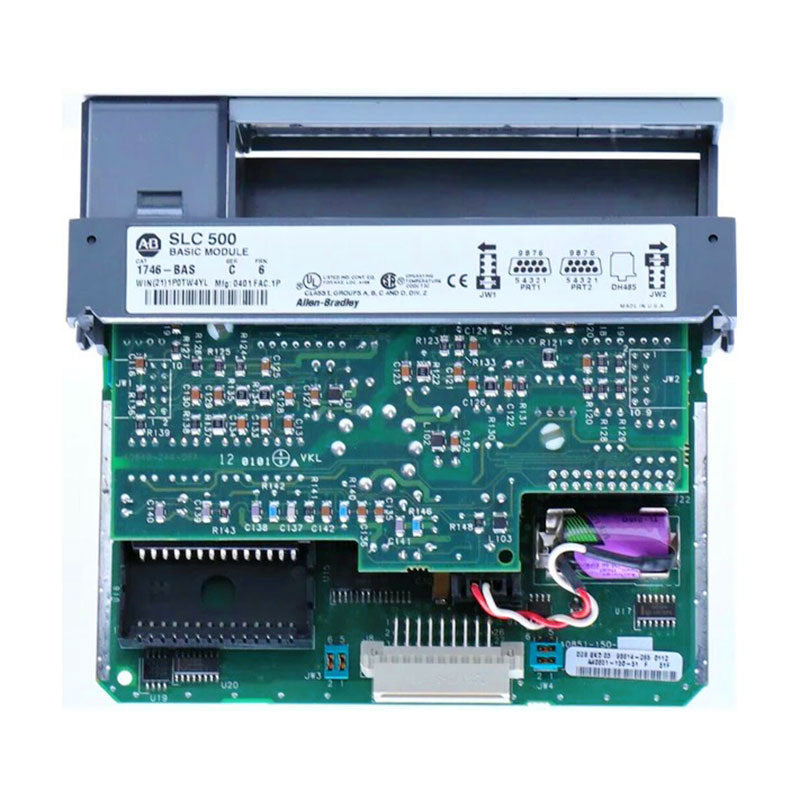

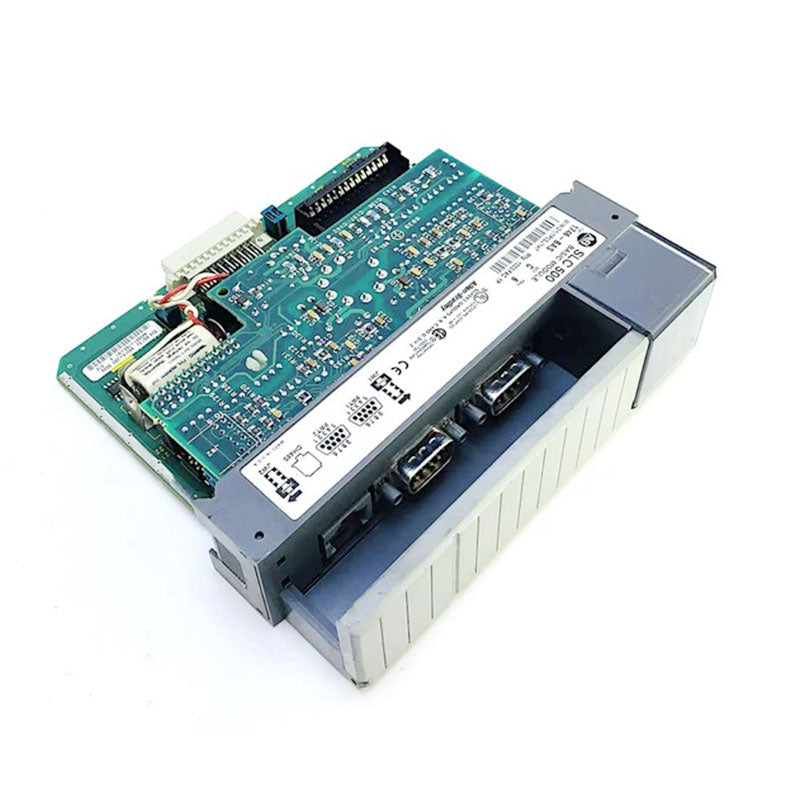

The 1746-BAS is a single slot module used in SLC 500 modular or fixed style hardware. This module is a Basic Language Module used for interfacing with Human Machine Interface (HMI), printers, modems and other devices for implementing machine level data collection and integration,
The 1746-BAS module features communications ports such as PRT1, PRT2 and DH485 communication interfaces. PRT 1 is exclusive used for interfacing the BAS module to user devices via transmission speeds of 300, 600, 1200, 2400, 4800, 9600 and 19200 Baud Rate in full duplex mode. This port may be configured for RS232,423 / 422, 485 modes. PRT 2 may also be used with user devices and also for interfacing modem using DF1 protocol. It is also capable of RS232 / 423, RS422 / 485 communication modes with same Baud Rates as PRT1. The DH485 communication terminal is used for DH485 network. It is a non-isolated port and requires the use of 1747-AIC to connect the port to DH485 network. It is important to remember that when PRT2 is configured as DF1 or used for interfacing to a modem, the DH485 communication port is disabled.
The Allen Bradley 1746-BAS is a Basic Language Module of the SLC 500 system. It enhances the capability of any SLC 500 system by adding report generation and data collection. It can be connected to modems, printers, operator interface terminals and other external devices through two configurable channels. The 1746-BAS-T module is an identical higher-speed version of this module with different optional memory modules. The 1746-BAS module has a memory size of 24 KB with battery-backed RAM. It has a power supply loading function of 0.150 at 5 Volts DC and 0.040 at 24 Volts DC. For communication, it uses RS-232/423, RS-422, RS-485 and DH-485 ports with a maximum communication distance of 1230 meters.
It has a standard data transfer rate of 8 input words and 8 output words for SLC 5/01 processors and higher. The 1746-BAS module provides easy data collection and an integrated program debugging environment. It has flexible data storage options with an operator interface capability. Its user interface provides easy access to editor functions and has a high-level programming environment; additionally, the 1746-BAS provides extensive online help to the user. It has other features like clock, calendar, advanced text editor, and 8 LED indicators for module diagnostics and operator interface, among others. It has a NEMA standard noise immunity and 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) of operating temperature.
The 1746-BAS module features communications ports such as PRT1, PRT2 and DH485 communication interfaces. PRT 1 is exclusive used for interfacing the BAS module to user devices via transmission speeds of 300, 600, 1200, 2400, 4800, 9600 and 19200 Baud Rate in full duplex mode. This port may be configured for RS232,423 / 422, 485 modes. PRT 2 may also be used with user devices and also for interfacing modem using DF1 protocol. It is also capable of RS232 / 423, RS422 / 485 communication modes with same Baud Rates as PRT1. The DH485 communication terminal is used for DH485 network. It is a non-isolated port and requires the use of 1747-AIC to connect the port to DH485 network. It is important to remember that when PRT2 is configured as DF1 or used for interfacing to a modem, the DH485 communication port is disabled.
The Allen Bradley 1746-BAS is a Basic Language Module of the SLC 500 system. It enhances the capability of any SLC 500 system by adding report generation and data collection. It can be connected to modems, printers, operator interface terminals and other external devices through two configurable channels. The 1746-BAS-T module is an identical higher-speed version of this module with different optional memory modules. The 1746-BAS module has a memory size of 24 KB with battery-backed RAM. It has a power supply loading function of 0.150 at 5 Volts DC and 0.040 at 24 Volts DC. For communication, it uses RS-232/423, RS-422, RS-485 and DH-485 ports with a maximum communication distance of 1230 meters.
It has a standard data transfer rate of 8 input words and 8 output words for SLC 5/01 processors and higher. The 1746-BAS module provides easy data collection and an integrated program debugging environment. It has flexible data storage options with an operator interface capability. Its user interface provides easy access to editor functions and has a high-level programming environment; additionally, the 1746-BAS provides extensive online help to the user. It has other features like clock, calendar, advanced text editor, and 8 LED indicators for module diagnostics and operator interface, among others. It has a NEMA standard noise immunity and 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) of operating temperature.
FAQ for 1746-BAS
What are this module’s communication options?
The Allen Bradley 1746-BAS has several options for communication, including RS-232/423, RS-422, RS-485, and DH-485.
What type of memory does this unit have?
The 1746-BAS has a memory of 24 KB, along with battery-backed RAM memory.
Can this module be purchased with a warranty?
Yes, the 1746-BAS comes with a free one-year warranty from DO Supply, Inc.
Where can I send the 1746-BAS to be repaired?
DO Supply, Inc. offers a variety of repair services for the 1746-BAS.
Technical Description of 1746-BAS
The Allen-Bradley 1746-BAS is a SLC 500 SLC BASIC Module with 1746 Backplane Communication.
