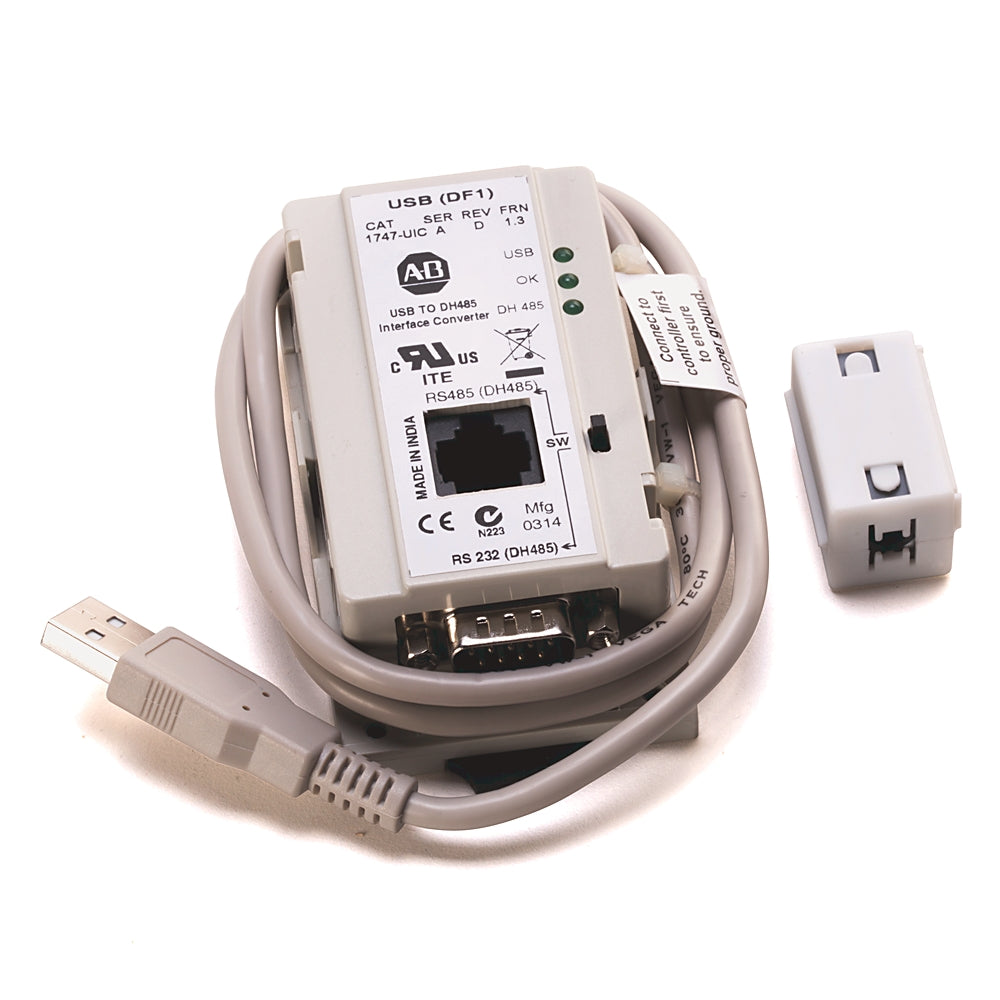

The Allen-Bradley 1747-UIC is a SLC 500 USB to DH-485 Interface Converter. This USB to DH-485 Interface Converter has USB and DH-485 Communication Ports and a Communication Rate of 19200 bits/second.
Technical specifications for 1747-UIC
| Manufacturer | Allen Bradley |
|---|---|
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1747-UIC |
| UPC | 662073052722 |
| Weight | 0.63 lbs (0.28 kg) |
| Module Type | USB to DH-485 Interface Converter |
| Communication Ports | USB and DH-485 |
| Communication Rate | 19200 bits/second |
| Current Load | Powered by Computer's USB Port |
| Backplane Current (5 Volts) | 600 milliamps |
| Backplane Current (24 Volts) | 90 milliamps |
| Operating Temperature | 0-60 Celsius |
| Chassis Module Slots | 30 |
| Communication | Ethernet, RS-232 |
| Backup Memory | Flash |
Description
The 1747-UIC SLC 500 USB-to-DH-485 Interface Converter by Allen-Bradley is an interface converter which gives computers USB ports, direct connection to the SLC 500, MicroLogix and ControlLogix controllers, and PanelView terminals with DH-485 ports. The 1747-UIC comes with two switch-selectable DH-485 ports, an RJ-45 (Ethernet) port for direct connection to the SLC 500, 5/01, 5/02, 5/03, AIC, and PanelView, and a single RS-232 DB9 port. It is powered by the USB port of a connected device and provides 500V DC circuit isolation between the power and the DH-485 common. The 1747-UIC has a Universal Serial Bus (USB) transfer speed of 12 Mbps with < 100 mA power consumption at the USB port and a converter overall Baud rate of 19.2 Kbps. The 1747-UIC’s operational temperature ranges between 0 and 60 °C (32 and 140 °F) and it has net dimensions of 109mm x 50.6mm x 31mm (4.29in x 1.99in x 1.22in).
