The 2711P-T7C22D9P-B operator interface terminal is a brandless Allen-Bradley Panelview Plus 7 series operator interface terminal that the users can label. Its operating temperature range is from 32 to 131 degrees Fahrenheit and its storage temperature range is from -13 to 158 degrees Fahrenheit. The 2711P-T7C22D9P-B operator interface terminal operates with an input voltage rating between 18 and 30 Volts DC. This terminal is controlled by a touchscreen which is 7 inches wide and which supports color graphics. The 2711P-T7C22D9P-B operator interface terminal supports 1 GB of RAM and 512 MB of storage.
Technical specifications for 2711P-T7C22D9P-B
| Manufacturer | Allen Bradley |
|---|---|
| Category | Panelviews |
| Product Line | Panelview Plus 7 |
| Part Number | 2711P-T7C22D9P-B |
| UPC | 885630844770 |
| Weight | 3.75 lbs (1.70 kg) |
| Input Type | Touchscreen |
| Display Size | 6.5 in. |
| Display Color | Color |
| Memory | 512 Mb |
| Input Voltage | 24 VDC |
| Backlight | LED |
Description

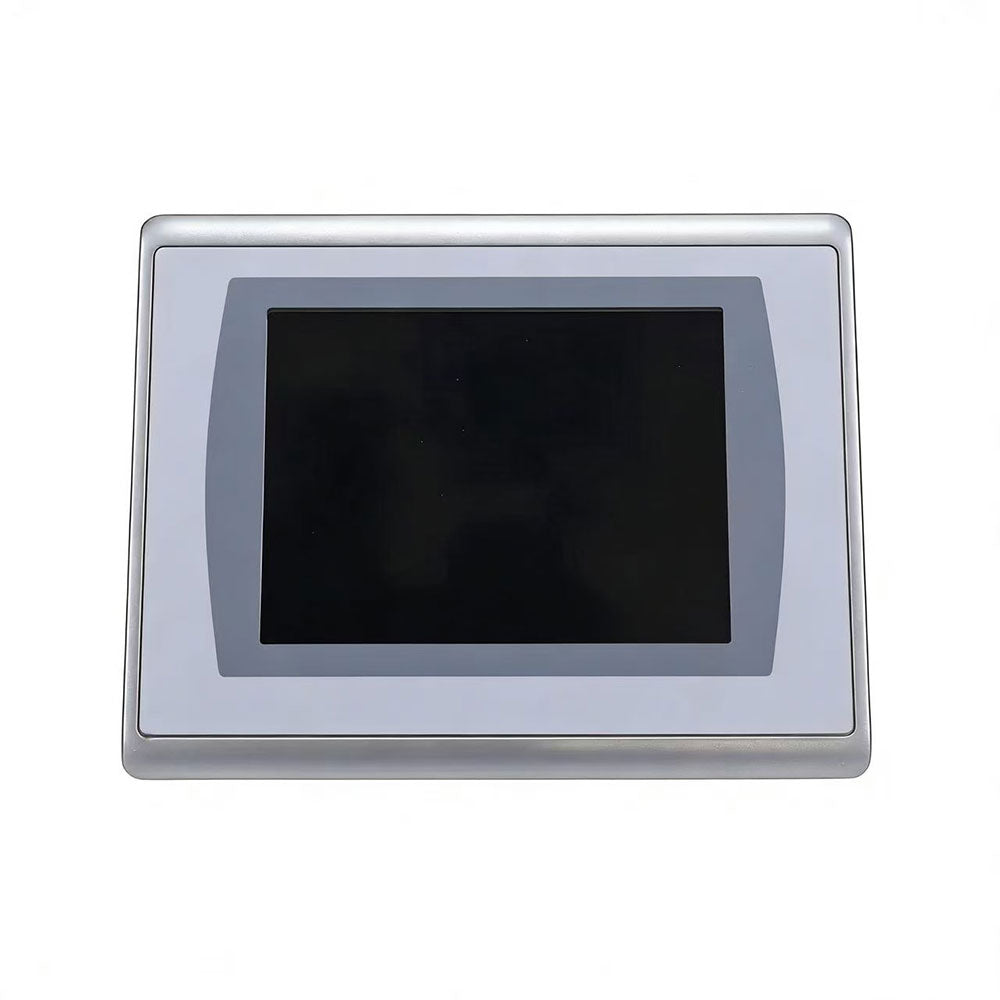

The 2711P-T7C22D9P-B is an Allen-Bradley, touchscreen PanelView Plus 7. This Operator Interface is a standard model; its touchscreen is 6.5 inches diagonally and has VGA TFT Color Display capabilities. The 2711P-T7C22D9P-B has an embedded Switch/Device Level Ring (DLR) with an input voltage of 24 Volts DC. The Allen-Bradley 2711P-T7C22D9P PanelView Plus 7 Standard is a Human-Machine Interface, provided with a visual and control interface through its TFT Liquid Crystal Display (LCD) color screen with analog resistive touch and an anti-glare display surface, which doubles as the aforementioned touchscreen input type. The VGA 640 x 480 resolution of this module’s native TFT Liquid Crystal Display has a viewing area of 132 x 99 millimeters with 18-bit color graphics and a 4:3 aspect ratio. The 2711P-T7C22D9P has a display luminance of 300nits and the panel has a built-in clock for real-time backup with an accuracy of +/-2 minutes per month; the Backup battery life is four (4) years. The PanelView Plus 7 can process and store applications in its 512-MB (RAM) system memory and 512 MB nonvolatile memory (approximately 80-MB free for user memory). The device is also equipped with a single 10/100 Base-T Ethernet port for controller communication that supports Device Level Ring (DLR) network topology, a single USB 2.0 high-speed host for removable flash drives, and a single high-speed 1.0, which supports connections to a host computer.
The 2711P-T7C22D9P has an operating voltage range of 18 to 30 Volts DC with a maximum power consumption of 50 Watts at 2.1A at 24 Volts DC. The AC power supply has a range of 85 to 265 Volts AC at a 47 to 63 Hertz DIN-rail power supply source. Its operational temperature ranges between 32 and 131 degrees Fahrenheit at 5% to 95%. The Panel dissipates 15 Watts of maximum heat when operational. The 2711P-T7C22D9P PanelView Plus 7 weighs approximately 0.85 kilograms (1.86 pounds), and it has net dimensions of 170 x 212 x 56.5 millimeters (6.69 x 8.35 x 2.22 inches). The Allen-Bradley 1784-SD1 (1GB) memory card or the Allen-Bradley 1784-SD2 (2GB) memory card can be used in an external SD card slot, and the Allen Bradley 2711P-T7C22D9P PanelView Plus 7 can be used with ControlLogix 5570 and ControlLogix® 5370 controllers for control and process monitoring.
