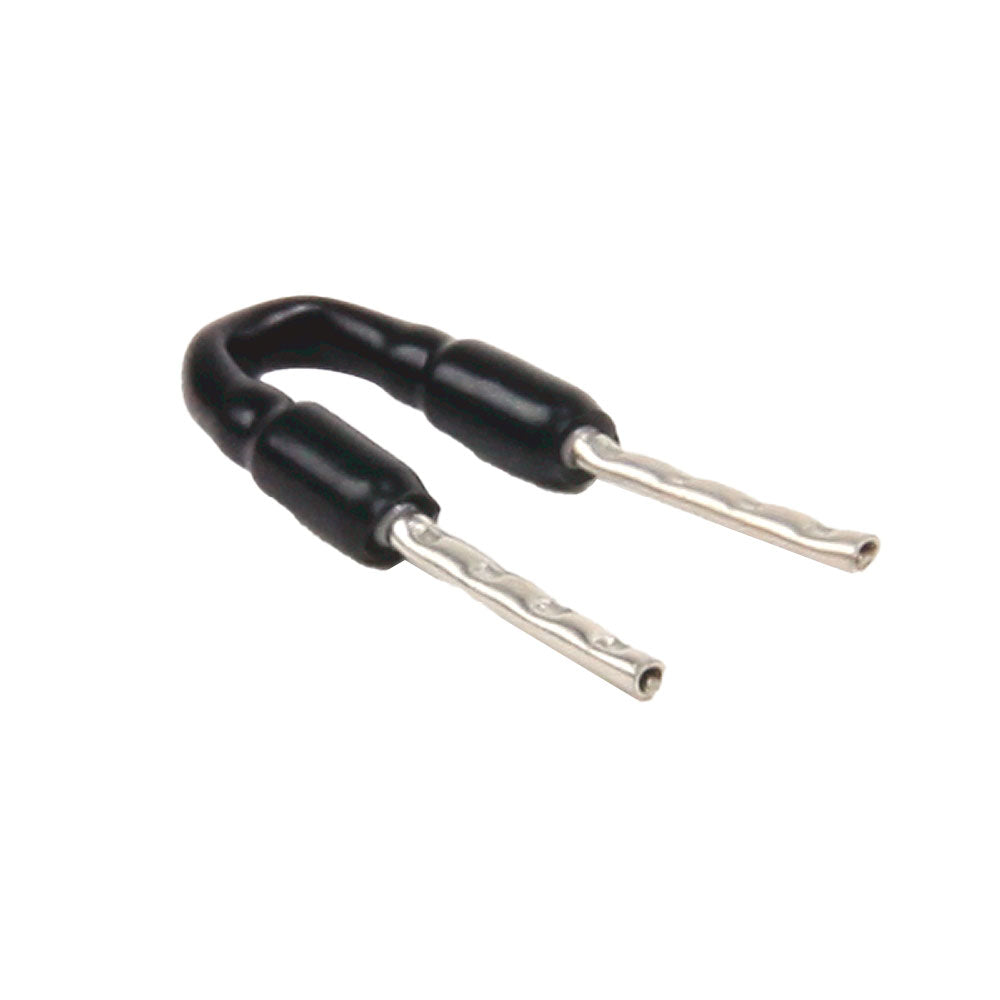

The 1769-CJC from Allen Bradley is a cold junction compensation temperature sensor designed for industrial applications. Its configuration allows for simple mounting directly onto the module and accommodates two sensors per module.
Technical specifications for 1769-CJC
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | CJC Temperature Sensor |
| Product Line | CompactLogix |
| Part Number | 1769-CJC |
| Weight | 0.19 lbs (0.09 kg) |
| Mounting | Direct to module |
| Quantity per Module | 2 |
| Use Case | Cold Junction Compensation |
| Sensor Type | Thermocouple reference |
| Certification | CE, UL compliant |
| Connection | Plug-in type |
| Material | Standard KC type |
| Environment | Industrial use |
| Signal Type | Analog |
| Efficiency | 0.98 |
| Compatible Modules | 1769-IT6 thermocouple modules |
Description
The Allen Bradley 1769-CJC is specifically tailored for accurate temperature measurement in automated systems. As a cold junction compensation temperature sensor, it plays a critical role in compensating for voltage errors that occur due to temperature variations at connection points. Each module supports two of these sensors, making it efficient for integrated systems.
This sensor is designed to mount directly to the module, simplifying the installation process. Its plug-in type connection enhances ease of use while ensuring stable and secure integration. Constructed from standard KC type material, the 1769-CJC robustly meets the demands of industrial settings.
With an analog signal type, this sensor effectively transmits temperature data for processing. The 1769-CJC holds CE and UL certifications, confirming its compliance with safety and performance standards. Notably, its efficiency sits at an impressive 0.98, ensuring reliable performance under various conditions. This sensor is fully compatible with the 1769-IT6 thermocouple modules, providing seamless functionality within the CompactLogix system.
