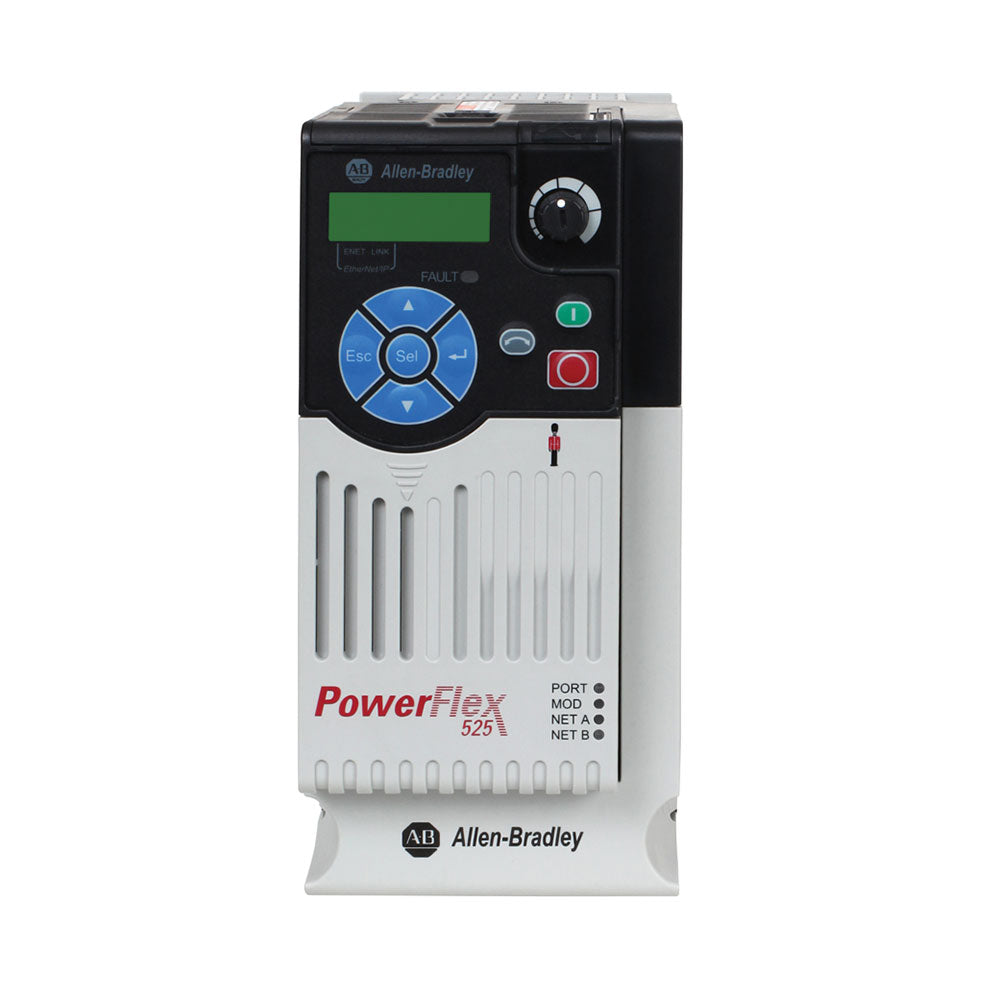

The Allen-Bradley/Rockwell Automation 25B-A011N114 drive is an adjustable frequency drive from the PowerFlex 525 series. It operates with 200 to 240 Volts AC 1-phase input voltage and with 0 to 230 Volts AC 3-phase output voltage. The 25B-A011N114 adjustable frequency drive comes with a built-in EMC filter as well as a standard interface module and a Size B frame. Its maximum output current rating is 11 Amps. The 25B-A011N114 adjustable frequency drive can generate 2.2 kilowatts or 3 Horsepower of output in normal duty applications and heavy-duty applications.
Technical specifications for 25B-A011N114
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 525 |
| Part Number | 25B-A011N114 |
| UPC | 884951885677 |
| Weight | 3.00 lbs (1.36 kg) |
| Series | PowerFlex 525 Drive |
| Voltage | One Phase, 240VAC |
| Output Current | 11 Amperes |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame B |
| EMC Filtering Options | Filter |
Description
The 25B-A011N114 is a PowerFlex 525 AC drive which is manufactured by Allen-Bradley. The drive has an input voltage rating of 240 Volts AC single-phase line voltage. It has an output current of 11 Amps and the power output of the drive is 3 Horsepower or 2.2 kW. The drive is enclosed in an IP20 NEMA enclosure and it comes with a standard interface module. It has an EMC filter installed which prevents any noise due to electromagnetic interference. The 25B-A011N114 has a standard braking module. The drive has various control methods like sinusoidal PWM, volts per hertz control, sensorless vector control, SVC motor control, closed loop velocity control, and surface mounting.
The 25B-A011N114 has an output voltage range of zero to the maximum rated voltage of the motor. The efficiency of the drive is 97.5%. The drive must be operated in a temperature between -20 and 50 degrees Celsius and the storage temperature range of the drive is -40 to 85 degrees Celsius. The relative humidity of the environment in which the 25B-A011N114 drive is operated should be between 5 and 95%. The drive has UL certification, and RCM, CE, TUV, ATEX, KCC, EAC, AC 156, SEMI F47, and RoHS certification and compliance. The size of the drive is 3.43 inches in width, 7.09 inches in height, and 6.77 inches in depth. The approximate shipping weight of the drive is 1.6 kilograms. While installing the drive, care must be taken to consider the mounting considerations specified by the manufacturer.
