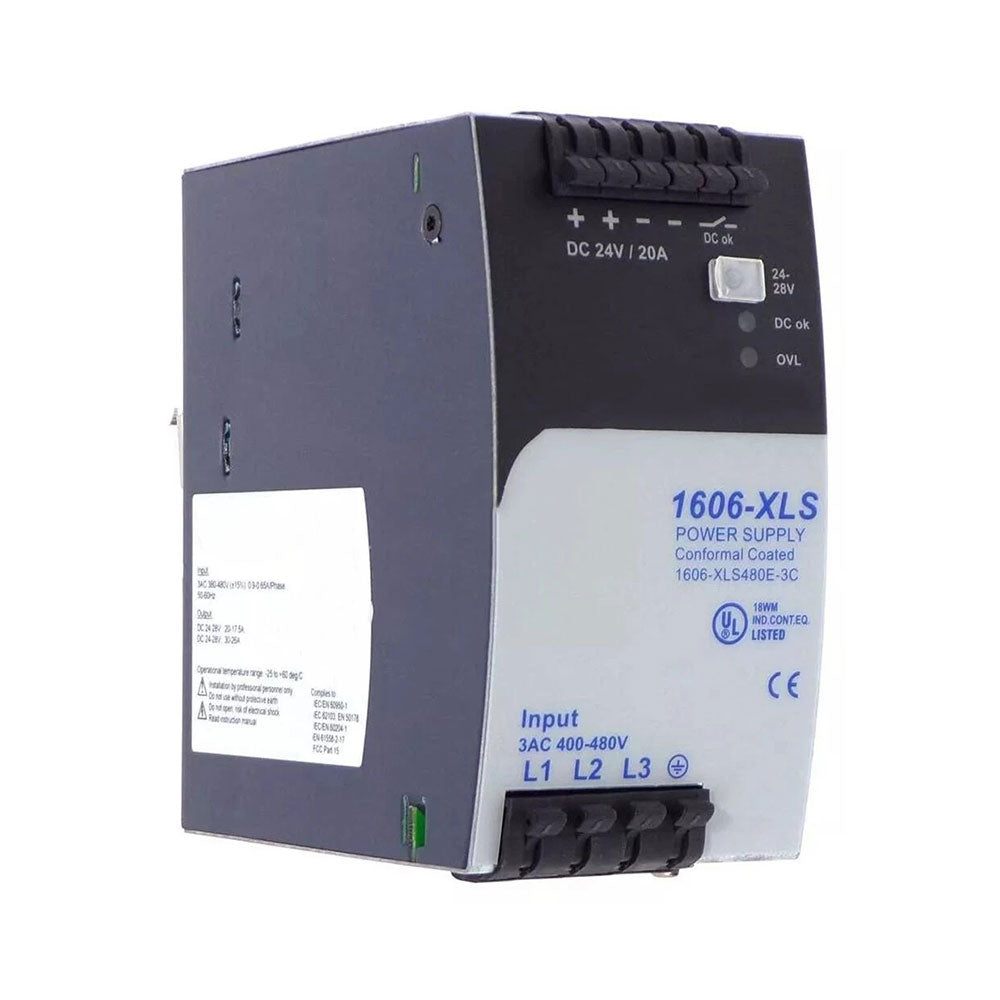

The Allen-Bradley/Rockwell Automation 1606-XLS480E-3C power supply is a small power supply and it has an extra-low inrush current. This component is extremely efficient due to its synchronous rectification and unique design. The unit’s large built-in output capacitors and capability of reaching 150% of its power peak ensure better starting for the motors, better absorption of reverse energy, and quicker charging of the capacitors. Also, it should be mentioned that due to these features, it is not uncommon for a lower wattage power supply is used. The 1606-XLS480E-3C power supply can be used in different environments thanks to great protective features and tolerance to low electromagnetic emissions. The unit is made according to all the relevant regulations and it complies with standards such as the UL, CE, EN 50178, and the IEC 60068-2 standards.

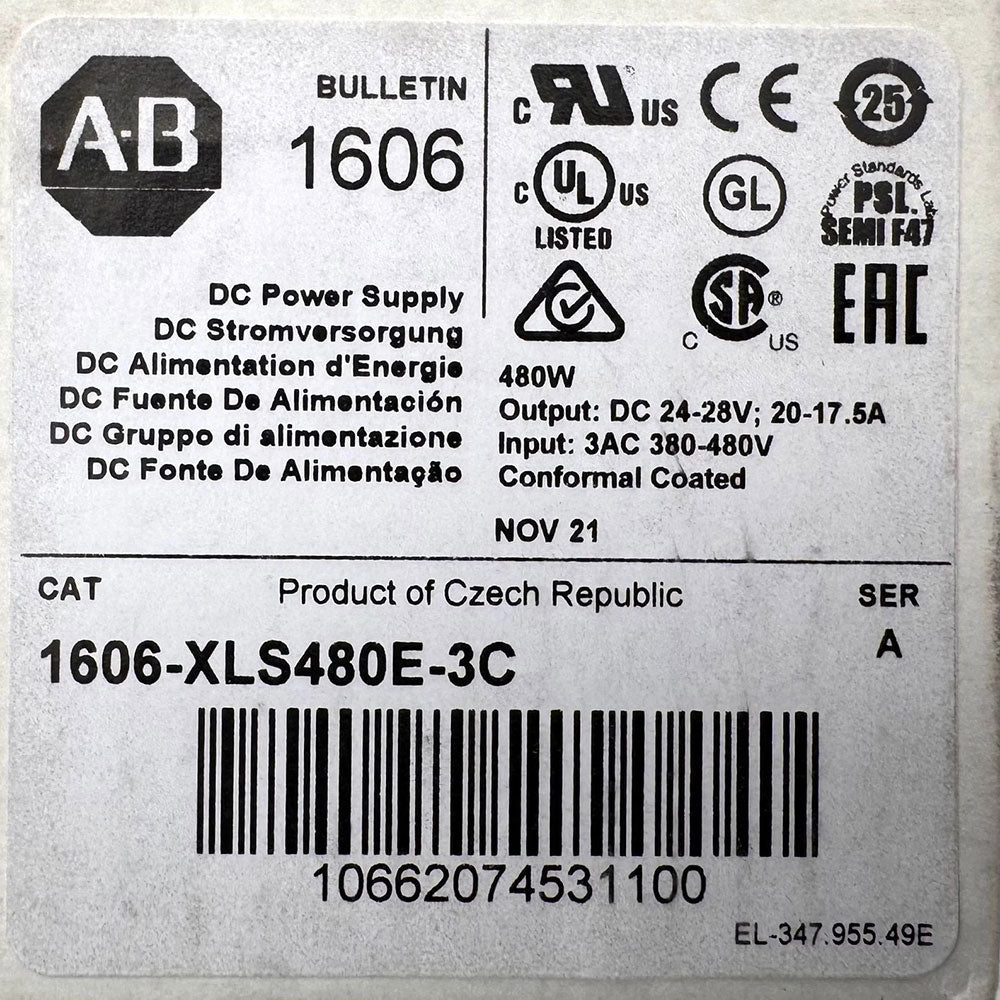

The 1606-XLS480E-3C power supply requires 3-phase input and it has an output voltage of 24 Volts DC. In addition to that, the unit has a 24 to 28 Volts DC adjustment range and an output current rating of 20 to 30 Amps. It has a power output of 480 to 720 Watts and an input voltage range of 380 to 480 Volts AC. The line frequency of the unit is 50 to 60 Hertz. The power factor of the unit is between 0.94 and 0.95 while its AC inrush current is typically at a peak value of 3 Amps. In addition to that, the current of an AC input is 0.79/0.65 Amps. The 1606-XLS480E-3C power supply unit has a width of 65 millimeters, A height of 124 millimeters, and a depth of 127 millimeters. It is advised to store the power supply in facilities with a temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). This unit is conformally coated and it operates within a temperature range of -25 to 70 degrees Celsius.
