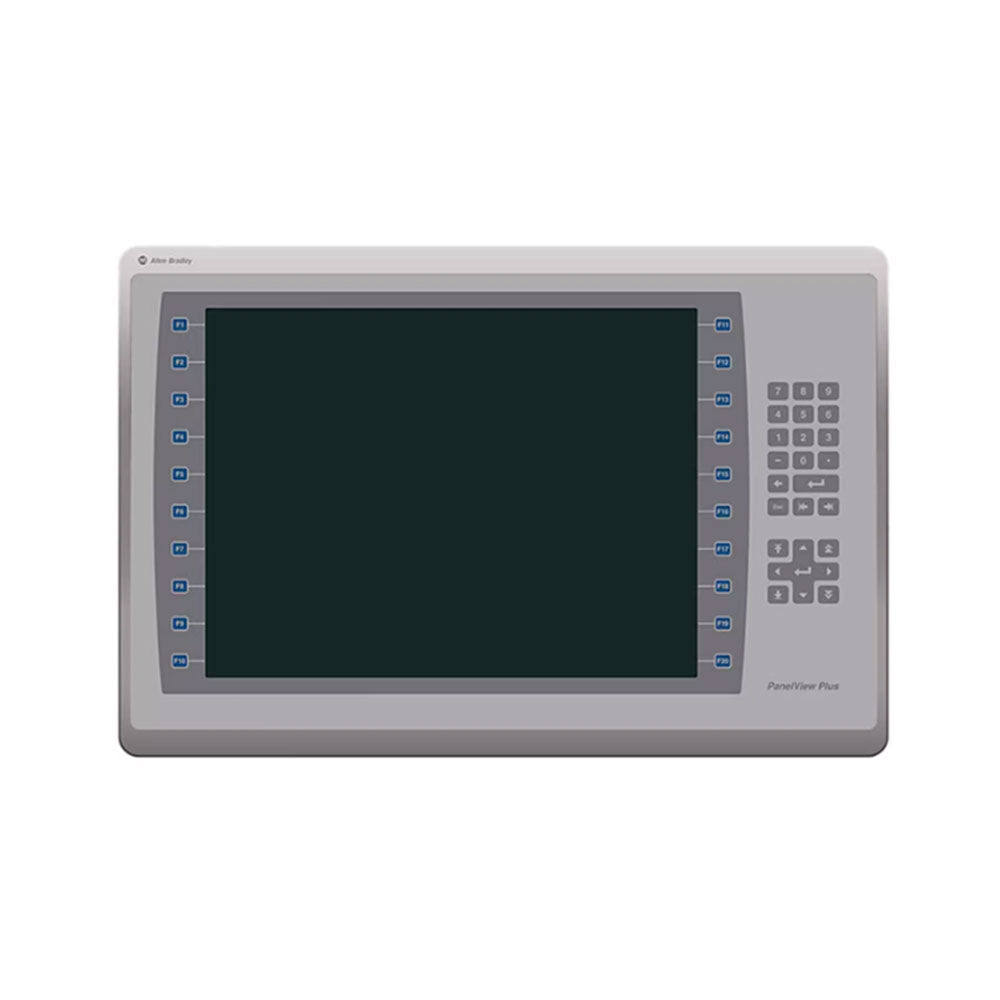

The 2711P-B15C22D9P-B terminal is a color display terminal with an integrated keypad. This is a display module used in industrial automation. The terminal has been manufactured by Allen-Bradley. The module is a 15-inch terminal which runs on 24 Volts DC voltage. It comes with a dual-port Ethernet adapter. This terminal has support for video playback which helps the operators of the module with advanced user help capabilities. The display has 512 MB of storage memory to store data and information. The 2711P-B15C22D9P-B terminal comes with single or DLR embedded Ethernet ports for connectivity for better performance. The embedded PDF viewer in the terminal can display the user manual and installation guide stored in its memory. The resolution of the display terminal is 1024 x 768 XGA with 18-bit color graphics and it has an aspect ratio of 4:3.

The 2711P-B15C22D9P-B terminal should be installed in a clean and dry environment that is free from dust/dirt and other harmful chemicals. Other heat-generating devices should be kept away from the display terminal. Electromagnetic noise should also be avoided because it reduces the performance of the display terminal. The temperature in the installation area should be maintained between 0 and 55 degrees Celsius. The 2711P-B15C22D9P-B terminal uses the DLR network which is a single fault-tolerant ring network which is mainly used for the interconnection of automation devices. It helps the operators to configure the startup options, load and run the HMI, and adjust other terminal settings.
