The 1606-XLE240EP power supply is a single-phase AC power supply module that has been manufactured by Allen-Bradley/Rockwell Automation. This power supply is available from the Allen-Bradley Bulletin 1606 series of different power supply modules and specifically from the Bulletin 1606-XLE subseries of compact ?essential? power supply modules. The Bulletin 1606-XLE essential power supplies like the 1606-XLE240EP essential power supply module only come with basic features because they are manufactured to be as compact and cost effective as possible. At 230 Volts AC, the steady state input current rating of the 1606-XLE240EP power supply is 2 Amps, and at 120 Volts AC, the steady state input current rating is 4.34 Amps.
Technical specifications for 1606-XLE240EP
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Switched Mode Power Supply |
| Product Line | 1606 Switched Mode Power Supplies |
| Part Number | 1606-XLE240EP |
| UPC | 662074643899 |
| Weight | 0.75 lbs (0.34 kg) |
| Input Voltage | 200-240V AC |
| Output Power | 240W |
| Output Current | 10A |
| Terminals | Screw |
| Signal | DC-OK |
| Output Voltage | Adjustable |
| Size | Compact |
| Heat Generation | Minimal |
Description

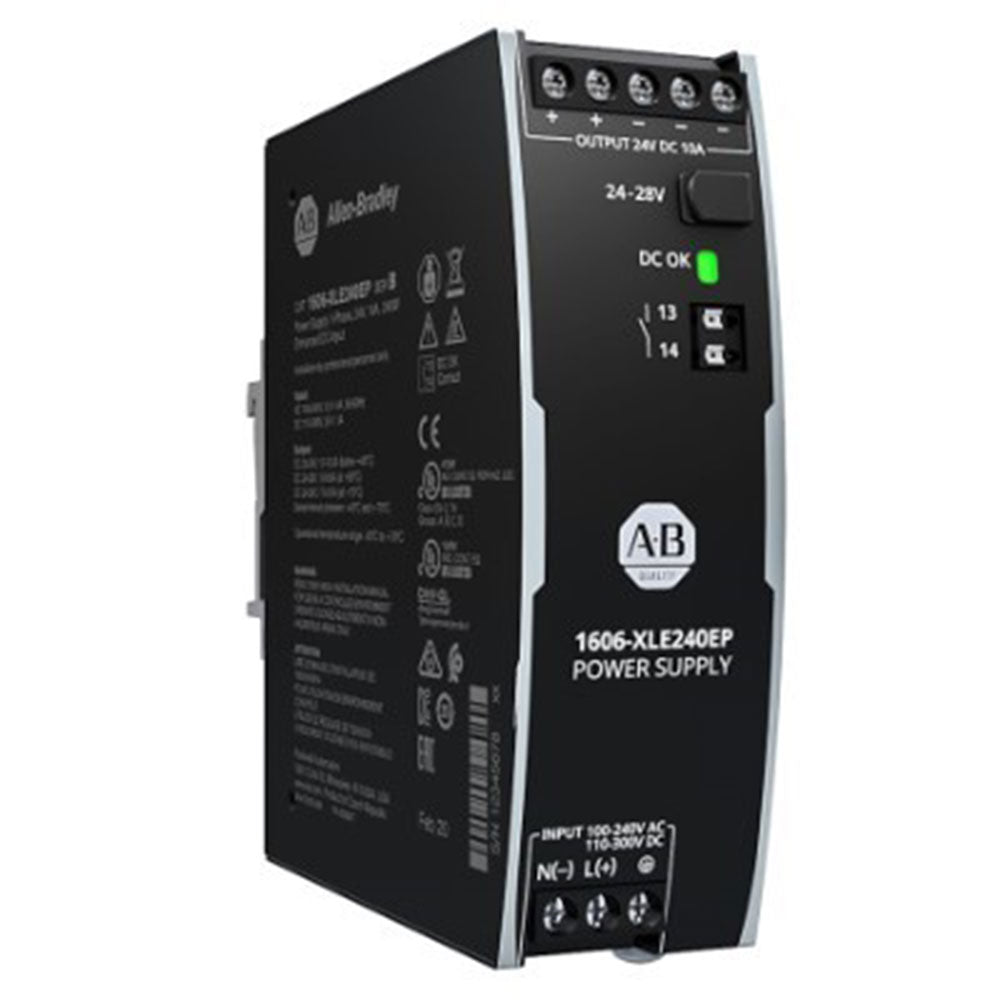

The 1606-XLE240EP module is a power supply module designed and manufactured by Allen-Bradley. It runs with 120 to 240 Volts AC input voltage. It generates 240 Watts of output power. It is a single-phase unit. It comes with a power factor correction feature. The module is manufactured in an ultra-small size and it operates with extra-low inrush current. The unit comes with superior efficiency and temperature ratings. The 1606-XLE240EP module comes with the DC-OK feature and it has an overload LED. This LED alerts the users when the module detects an overload. The current rating of the power unit is 10 Amps. The adjustment voltage range of the unit is 24 to 28 Volts. The power unit comes with approval ratings like the UL, cUS, and the CE ratings. Allen-Bradley has manufactured the module to be cost-effective without compromising its reliability and output quality. This Allen-Bradley module is part of the XLE power supply module family. The compactly manufactured power supply module has dimensions of 60 x 124 x 117 millimeters.
The 1606-XLE240EP module comes with an input inrush current. It has active inrush limitation circuitry which limits the input inrush current after turning on the input voltage. The minimum short circuit current of the device is 14 Amps and the maximum short circuit current is 18 Amps. The power unit is 91.2% efficient when it is powered with 230 Volts AC input voltage. The 1606-XLE240EP module is built using an input fuse and an input filter, PFC inductor, input rectifier, power converter, and an output filter. The module has a rated lifetime expectancy of 15 years. The terminal is screw clamped on the outer side of the power unit. With minimal heat generation, the module offers robust performance for modern industrial needs. It has an LED indicator on the front to alert the users.
