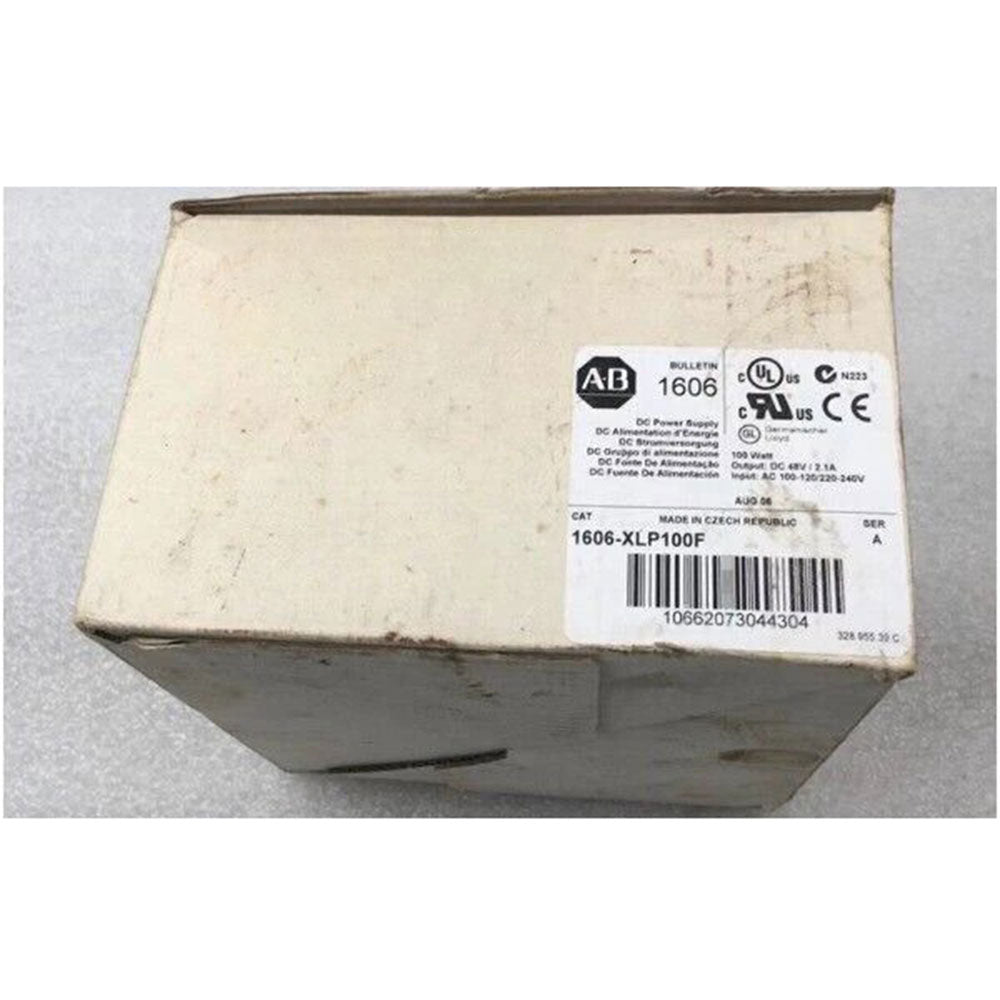

The Allen-Bradley 1606-XLP100F module is a compact type of switching mode power supply module from the Allen-Bradley Bulletin 1606-XLP series of compact switching mode power supply modules. It normally operates in a parallel mode, but the operators can use a jumper to switch it to operating in a single mode. The single-phase input voltage ranges that are supported by the 1606-XLP100F compact power supply module are 100 to 200 Volts AC, 200 to 240 Volts AC, and 220 to 375 Volts DC. The rated steady state input current for this module is 2.1 Amps at 120 Volts AC and 1 Amp at 230 Volts AC. The 1606-XLP100F compact power supply module has output power ratings of 2.1 Amps, 100 Watts, and 48 to 56 Volts DC.
Technical specifications for 1606-XLP100F
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Switched Mode Power Supply |
| Product Line | 1606 Switched Mode Power Supplies |
| Part Number | 1606-XLP100F |
| UPC | 662073044307 |
| Weight | 1.06 lbs (0.48 kg) |
| Input Voltage | 380-480V AC |
| Output Power | 90W |
| Output Current | 3.75A |
| Terminals | Screw/Spring Clamp |
| Signal | DC-OK |
| Output Voltage | Adjustable |
| Size | Compact |
| Heat Generation | Minimal |
Description
The 1606-XLP100F power supply is a compact power supply from Allen-Bradley/Rockwell Automation. It belongs to the 1606 series of power supplies from Allen-Bradley. Power supplies in this family, including the 1606-XLP100F power supply, have low inrush currents, a PFC choke, and a superior overload design that allows for continuous current with no hiccups, and they belong to the NEC Class 2 limited power option category. The 1606-XLP100F power supply meets global safety standards. This power supply has its output power rated at 100 Watts. For the output voltage, the 1606-XLP100F power supply can be used with applications that have a minimum input voltage rating of 48 Volts DC and a maximum input voltage rating of 56 Volts DC.
The Allen-Bradley 1606-XLP100F power supply measures 2.87 inches by 2.95 inches by 4.06 inches for its width, height, and depth, respectively. The power supply supports the same wire gauge for its inputs and outputs. For instance, the 1606-XLP100F power supply can use either solid or stranded wires. However, solid wires should have a size between 26 and 12 AWG. When stranded wires are used, they should have the same size as solid wires. Note that when the size is measured in millimeters, the solid wires should not exceed a size of 4 millimeters squared and not be less than 0.3 millimeters squared. For stranded wires, the size should not exceed 2.5 millimeters squared and not fall below 0.3 millimeters squared. The 1606-XLP100F power supply, like other power supplies in the same series, has superior efficiency and temperature ratings. Additionally, this power supply is compliant with the SEMI F47, CE, and ATEX standards, among others.
