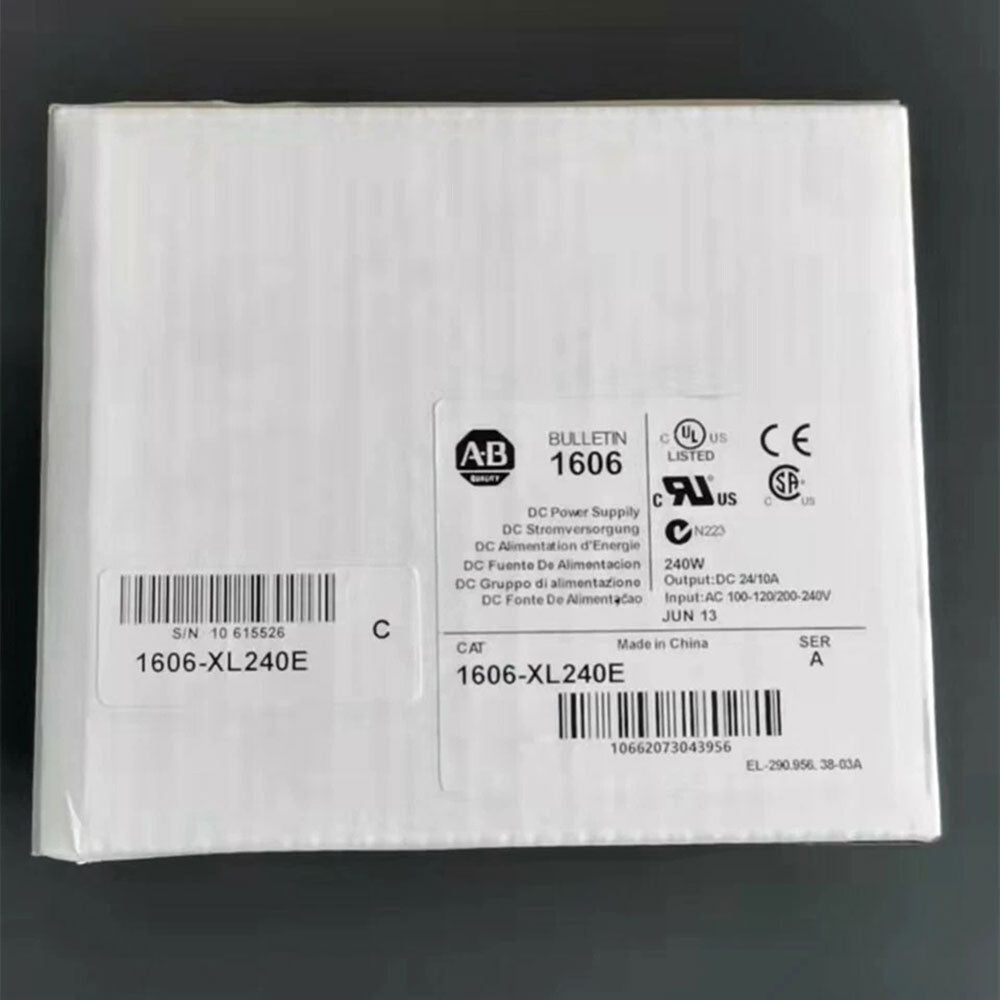

The Allen-Bradley/Rockwell Automation 1606-XL240E power supply module is a compact power supply module from the Bulletin 1606 product line of switched mode power supplies. Because it is compact, it is easy to install a wide range of industrial systems and it can be used in a wide range of applications. The 1606-XL240E power supply module has also been approved by a variety of global industrial standards such as the CE and UL standards. This power supply module can support up to 5 parallel operations in a system at a time. This module can operate at up to 60 degrees Celsius without derating, and it can operate at up to 70 degrees Celsius if it is derated.
Technical specifications for 1606-XL240E
| Manufacturer | Allen Bradley |
|---|---|
| Category | PLCs |
| Product Line | 1606 Switched Mode Power Supplies |
| Part Number | 1606-XL240E |
| Weight | 2.13 lbs (0.96 kg) |
| Description | Power supply unit |
| Power | 288 watts |
| Voltage | 480 Volts AC |
| Potentiometer preset | 24.5 volts |
| Temperature | 0-70 degrees Celsius |
| Life electrolytes | 105 degrees Celsius |
| Overvoltage voltage | 36-39 Volts |
| Current | 10 Amperes |
| UPC | 10662073043956 |
Description
The Allen-Bradley 1606-XL240E power supply is a compact power supply manufactured by Allen-Bradley. It offers a power boost feature rated at up to 288 Watts. It comes with a separate primary fuse and it has switchable operating modes that are the single and parallel modes. It is a three-phase power unit with a voltage rating of 480 Volts AC. It is a Series A device and it supports both AC and DC power supplies. It can be mounted by using a DIN Rail mounting base. The output current rating of the unit is 10 Amps. It supports up to five parallel operations. The 1606-XL240E power supply is equipped with a front panel potentiometer with a preset level of 24.5 volts with a guaranteed adjustable range. The ambient operating temperature range of the supply unit ranges between 0 and 70 degrees Celsius.
The Allen-Bradley 1606-XL240E power supply can regulate voltage which is more than 2% overall with the jumper in the single mode position. The ripple/noise rating has a 20 MHz bandwidth. This power supply offers an overvoltage protection voltage range from 36 Volts minimum up to a maximum of 39 Volts. The power back immunity of the power supply has a minimum rating of 34 Volts. Front panel indicator lights are included on the module and they are green and red LEDs. The power supply unit can handle transients for all load conditions. The 1606-XL240E power supply has rugged electronic components that are rated for 105 degrees Celsius. The start-up delay of the unit is 100 milliseconds and the rise time falls between 5 and 20 milliseconds depending on the load.
