2711P-RDT12C | Allen Bradley PanelView Plus Display Module AB

2711P-RDT12C | Allen Bradley PanelView Plus Display Module AB

Regular price $1,714.00 USD
Regular price $2,228.00 USD Sale price $1,714.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Technical Specifications for 2711P-RDT12C

Description: Display Module
Actuation force: 10-110 g
Touch interface lifespan: 1 Million actuations
Touch Input: 8-wire analog resistive
Anti-Glare overlay: not included
Input interface: Touch
Luminance: 300 cd/m2 (Nits)(3)
Display colors: 18-bit color graphics
Resolution: 800 x 600
Display Area: 246 x 184 mm (9.7 x 7.2 in.)
Display Size: 12.1 inches
Display Type: Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)
Compatibility: PanelView Plus 1000 / PanelView Plus 6 Touch terminals
Part Number: 2711P-RDT12C
Product Family: PanelView Plus Graphic Terminals
Manufacturer: Rockwell Automation / Allen-Bradley
Brand Allen-Bradley
Part Number/Catalog No. 2711P-RDT12C�
Product Line PanelView Plus 6
Input Type Touchscreen
Display 12.1 in (Color)
Memory 128 MB
Communication Ethernet, RS-232, and USB
Marine Certification No
UPC 10611320817130

About 2711P-RDT12C

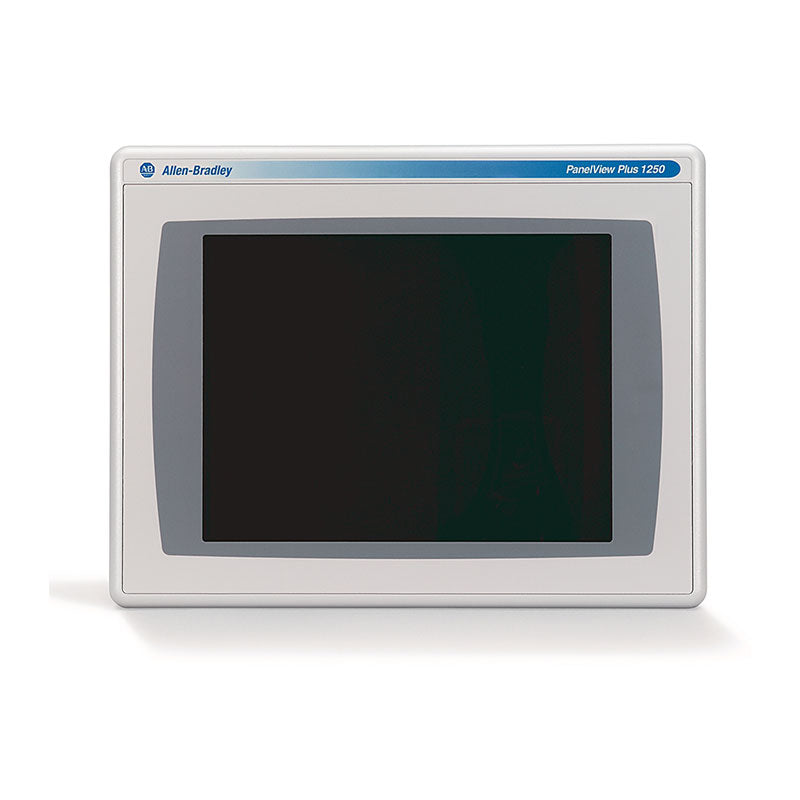

The Allen-Bradley 2711P-RDT12C is a replacement unit for the pre-installed display module of PanelView Plus and PanelView Plus 6 1250 Touch operated terminals. Not only that it provides colored graphic display, but this component also comes with an embedded 8-wire analog resistive touch interface with an actuation lifespan of up to 1 million presses at 10-110 g of actuation force.

The 2711P-RDT12C has a display screen that measures 12.1-inches. It is capable of displaying colored static displays and animations. This display module has a resolution of 800 x 600 pixels and effective display area of 246 x 184 mm (9.69 x 7.25 in).

The main function of the 2711P-RDT12C display module is to provide the visualization and input capability to the system. The operator monitors through this module and enters control commands and modification by interacting directly to the touch sensitive screen.

To maximize the operation lifespan of the 2711P-RDT12C display module, maintain the unit by wiping off any contaminant build-up on the surface. Use a soft cloth that is slightly wetted with water and mild soap mixture or isopropyl alcohol. Wipe the contaminants slightly. Additionally, use a gloved finger when operating and interacting with the display module. If glove is not available, actuate the terminal using a finger free of contaminants.

Install this module when the process is not operational. Ideally, remove supply power when installing this display module. This way, unwanted actuation caused by handling of the unit will not cause unintended operation or machine behavior. Do not place this display module on uneven surfaces and ungrounded areas.



FAQ for 2711P-RDT12C

Is the 2711P-RDT12C marine certified or conformal coated?

No, the 2711P-RDT12C is neither marine certified nor conformal coated.

Does the 2711P-RDT12C come with a built-in anti-glare overlay?

No, 2711P-RDT12C does not have a built-in anti-glare overlay.

Can this module be purchased with a warranty?

Yes, the 2711P-RDT12C comes with a free one-year warranty

Where can I send the 2711P-RDT12C to be repaired?

we offers a variety of repair services for the 2711P-RDT12C.

What is the screen size of the 2711P-RDT12C?

The 2711P-RDT12C has 12.1-inch display screen with resolution of 800 x 600 pixels and effective display area of 246 x 184 mm (9.69 x 7.25 in).

Does the 2711P-RDT12C compatible for marine applications?

No. If marine certification is required, use 2711P-RDT12CK display module.

Does this module come with a keypad?

No. This is a touch operated display module.

Technical Description of 2711P-RDT12C

The Allen-Bradley 2711P-RDT12C is an Allen-Bradley display module that is compatible with PanelView Plus and PanelView Plus 6 1250 Touch operated terminals. It has 12.1 inch screen and supports colored graphic display and animations.
