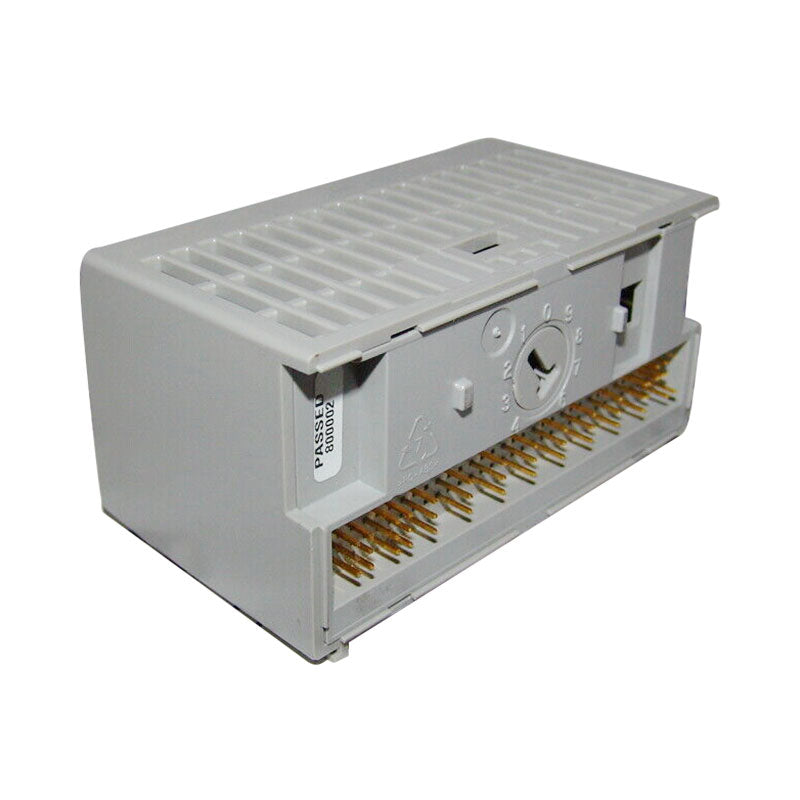

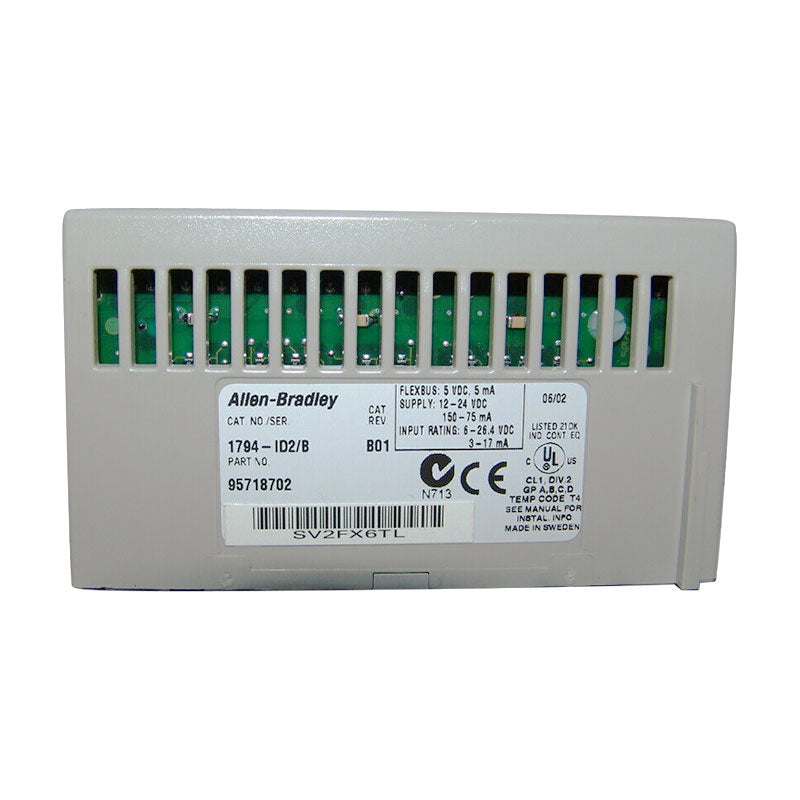

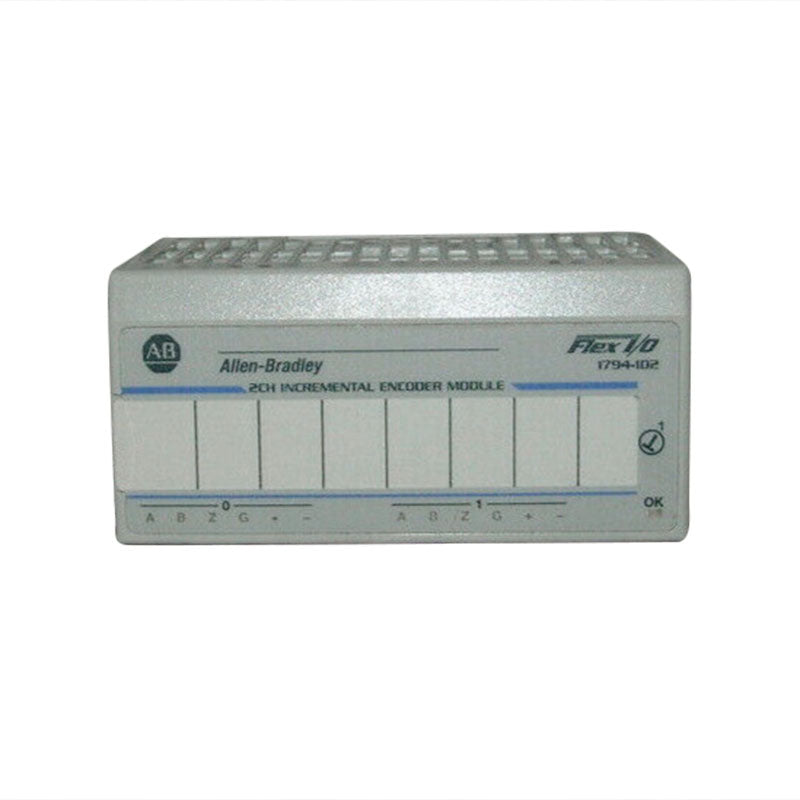

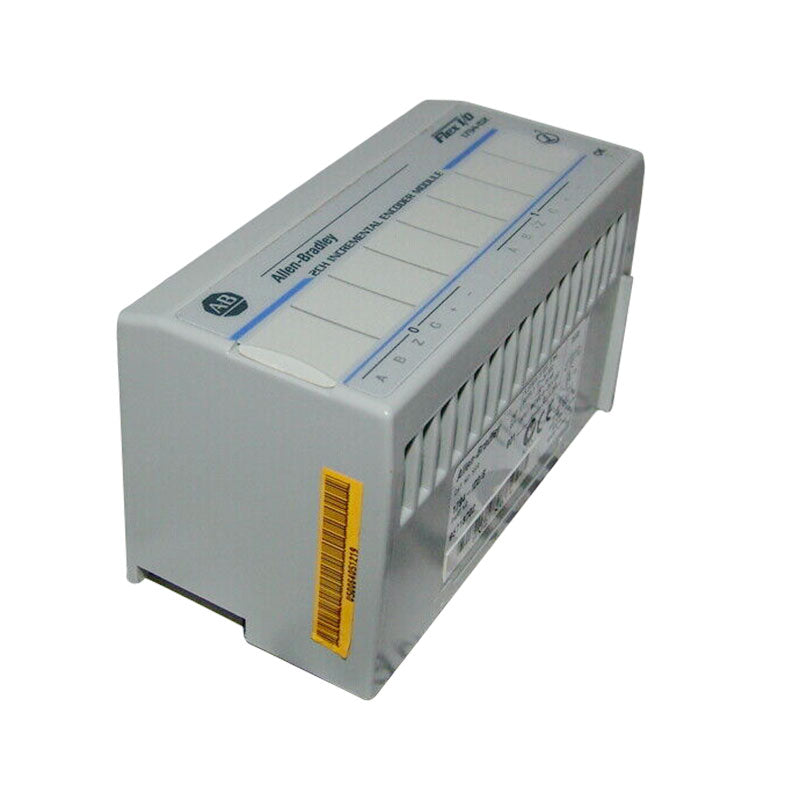

1794-ID2 Allen-Bradley | Flex 2 Point Distributed I/O Comb Module

1794-ID2 Allen-Bradley | Flex 2 Point Distributed I/O Comb Module

Regular price $642.00 USD
Regular price $834.00 USD Sale price $642.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

 Technical Specifications for 1794-ID2

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1794-ID2
Product Type Channel Incremental Encoder Module
Inputs per Counter 4
On-state Voltage min. 6V DC
On-state Voltage max. 26.4V DC
On-state Current min. 3mA @ 6V DC
On-state Current max. 15mA @ 24V DC
Off-state Voltage max. 3V DC
Counting Frequency 100kHz max.
Isolation Voltage 500V AC
Flexbus Current 5mA @ 5V DC
Power Dissipation 17.1 BTU/hr. @ 26.4V DC max.
UPC 10612598179913
UPC 10612598184252

About 1794-ID2

The 1794-ID2 by Allen Bradley is an Input/output module deployed for applications that require high-speed pulse counting. It includes 2 basic inputs which also act as pulse transmitter interfaces with 4 inputs per counter (also known as optocoupled inputs). There are a variety of processes that are aided by this module, including high-speed calculations, positioning, and quantity counting. Additionally, it contains independent –ve and +ve inputs which are basically complementary and non-complementary signals.


Event triggering in the 1794-ID2 generally takes place with 1 or 2 pulse trains, each of them being individually programmable; it has an operating voltage ranging between 12 to 24 Volts DC and supports an open style enclosure with dimensions of 46 x 94 x 53 millimeters. There are 13 indicators for process identification (1 green/red and 12 yellow); this module’s interfacing capabilities work with an I/O adapter to support communication with external devices. Basic errors with this module include transmission errors, removal from the terminal base, and incorrect module insertion.

The 1794-ID2 comes with easy screw mounting and supports DIN rail mounting as well. Installation and maintenance are quite easy with proper instructions to re-assemble parts after every maintenance. Remove field-side power before inserting this module as the electric arc generated can cause damage to property or personnel.
