1794-IB16D | Allen Bradley Flex I/O Input Module

1794-IB16D | Allen Bradley Flex I/O Input Module

Regular price $191.00 USD
Regular price $248.00 USD Sale price $191.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Technical Specifications for 1794-IB16D

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1794-IB16D
Product Type Flex I/O Digital Input Module w/ Diagnostics
Inputs 16 Sinking Current
On-state Voltage nom. 24V DC
On-state Current max. 1.5mA
Nominal Input Impedance 3.1 k?
Sensor Power Current 50mA max.
Sensor Power Voltage Drop 2.2V DC max.
Isolation Voltage 50V Continuous
Flexbus Current 30mA @ 5V DC
Power Dissipation 8.5W @ 31.2V DC max.
Thermal Dissipation 29 BTU/hr. @ 31.2V DC max.
UPC 10612598305954

Weight: 0.09kg



About 1794-IB16D

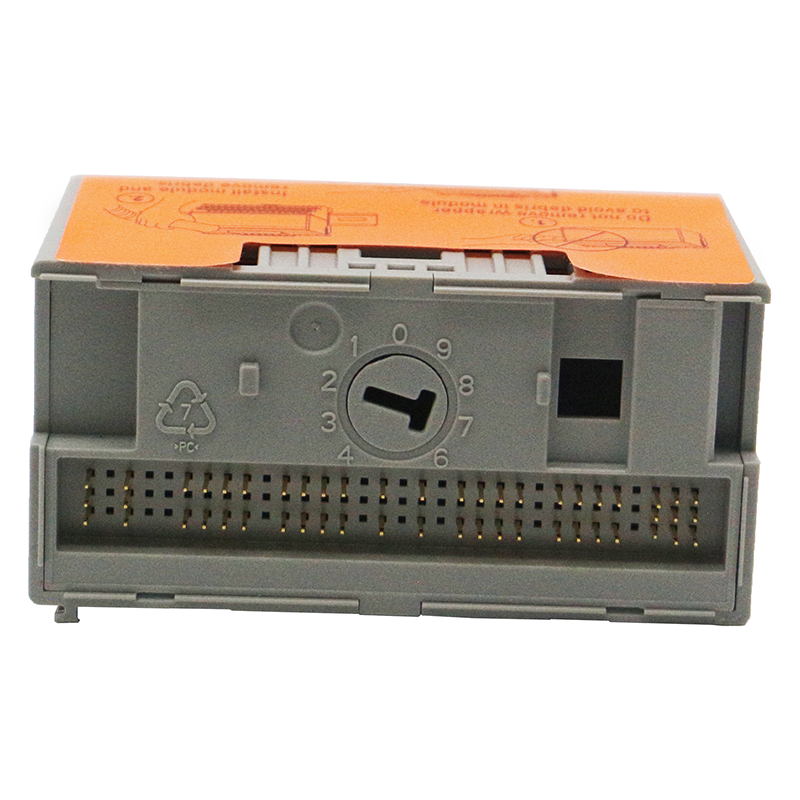

The Allen-Bradley/Rockwell Automation 1794-IB16D module is a FLEX I/O digital input module with diagnostics capabilities. FLEX series input diagnostic modules like this one are specially constructed to help the users diagnose issues with field devices, open or shorted connections to the field devices, and issues with the power supply. The FLEX I/O system is modular, so having modules like the 1794-IB16D module can reduce industrial automation system commissioning time and also the time needed to correct errors. The 1794-IB16D input module can be mounted on a 1794-TB32 or a 1794-TB32S terminal base. Before the users seat the module in the terminal base unit, they must set a keyswitch on the terminal base to Position 4 and push the Flexbus connector all the way to the left to connect with the adjacent terminal base.

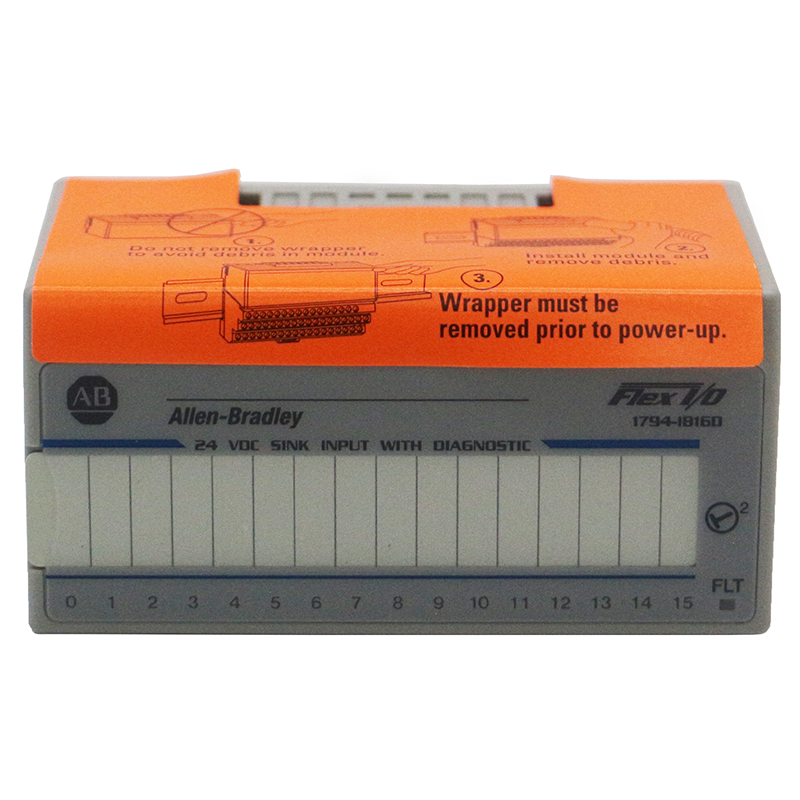

The main advantage of the Allen-Bradley 1794-IB16D input module is its ability to detect disconnected wires, open input field device circuits, shorted input wiring, and reversed “+” and “-“ connectors on the DC power supply or the open power supply circuit. For all 16 inputs, the on-stage mode is declared to be at 24 Volts DC, but it is detected anywhere between 10 and 32 Volts DC. The digital signal can be filtered by this FLEX I/O module and the filtering time can be adjusted by the users. The approximate dimensions of the unit are 45.7 millimeters x 94 millimeters x 53.3 millimeters (1.8 inches x 3.7 inches x 2.1 inches) and it weighs 0.09 kilograms. The 1794-IB16D module has 33 indicator lights, 16 red diagnostic status indicators, 16 yellow ON/OFF status indicators, and 1 red module fault indicator.
