1784-CF128 | Allen-Bradley CompactFlash Card
1784-CF128 | Allen-Bradley CompactFlash Card
Regular price
$136.00 USD
Regular price
$156.00 USD
Sale price
$136.00 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Technical Specifications for 1784-CF128
| Manufacturer | Rockwell Automation |
| Memory Size | 128 MB |
| Module Type | CompactFlash Card |
| Part Number/Catalog No. | 1784-CF128 |
| Brand | Allen-Bradley |
| Supported secondary functions | File opening, File closing, File printer setting, Checksum calculations, Checksum verifications, Data parsing and Error handling |
| Supported Basic Functions | Create, Write, Read, Delete files |
| Compatible Controllers | ControlLogix 5560 |
| Maximum data size | 450 Bytes (read / Write) |
| Removal and Insertion under Power | Not supported |
| No. of open files | One (1) |
| No. of files | 250 Files |
| Memory Format | FAT 16 |
| Memory Type | Non-Volatile |
| Series | ControlLogix |
| Application | ControlLogix L6 Controllers |
| Memory | 128 Megabytes |
| UPC | 10612598349897 |
About 1784-CF128

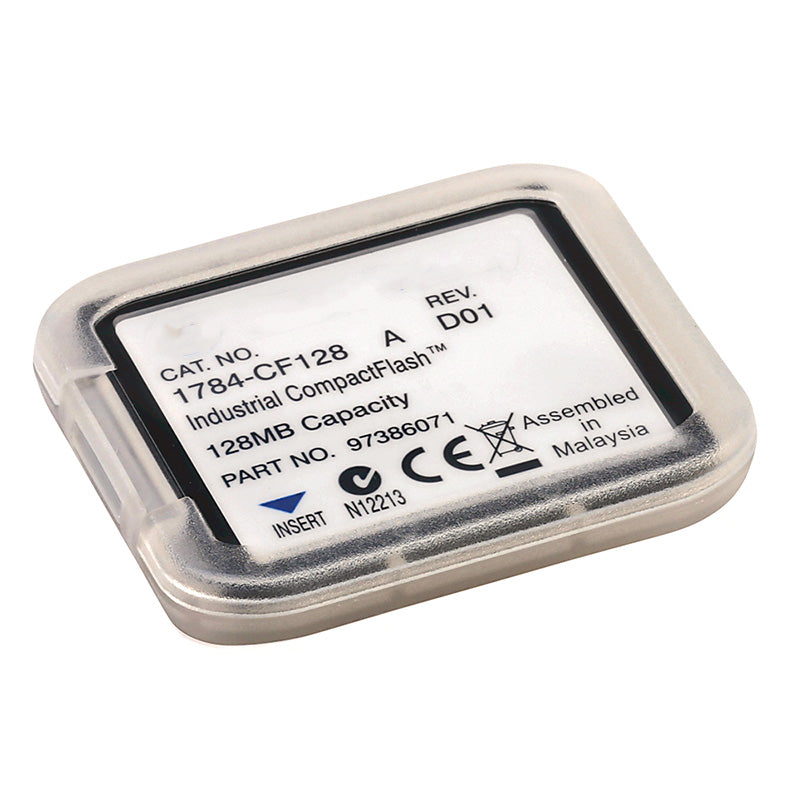

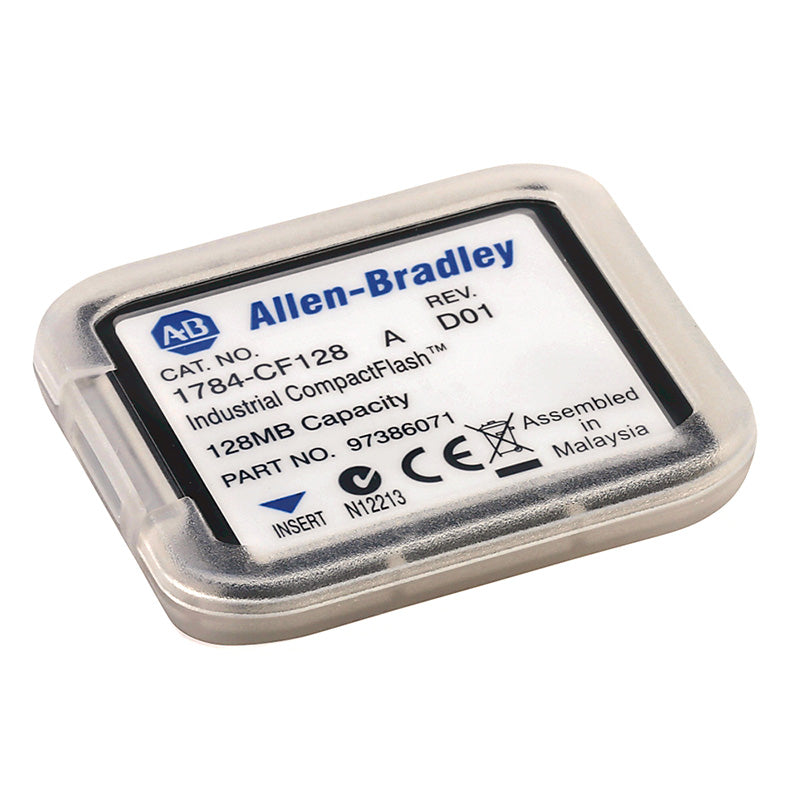

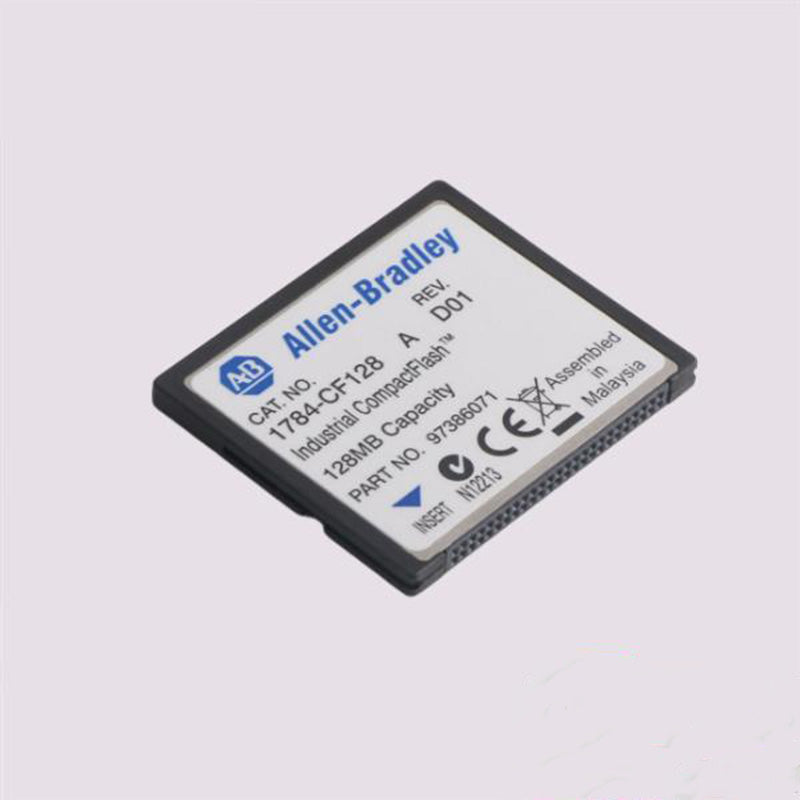

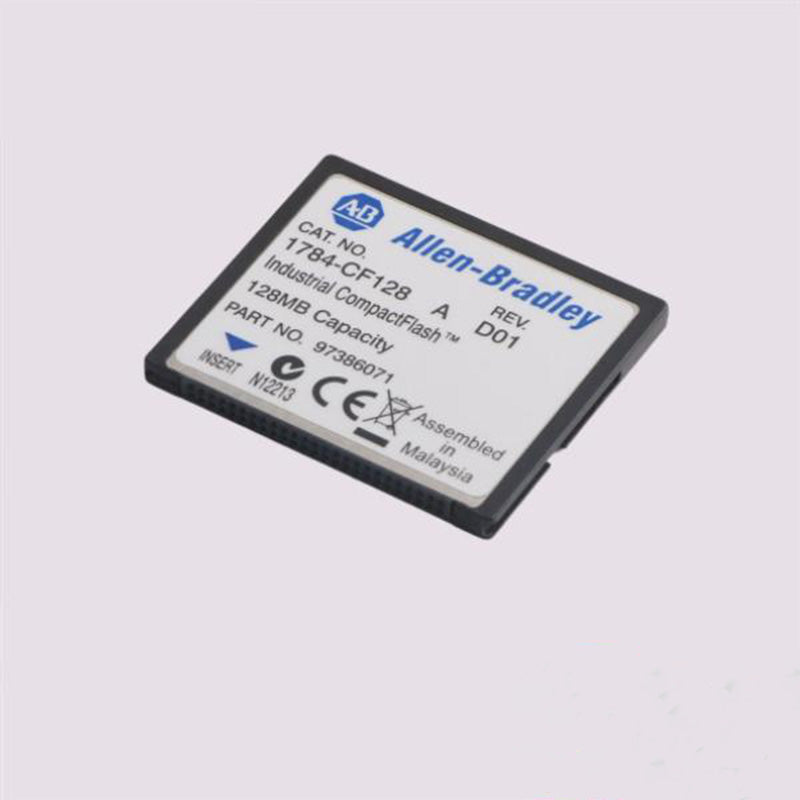

The 1784-CF128 is an Allen-Bradley manufactured CompactFlash Card. This memory module features an integrated non-volatile memory amounting to 128 MB.
The 1784-CF128 is compatible with 1756-L6X or 5560 ControlLogix controllers. It serves as an additional user program and program data memory which supports basic functions such as create, write, read and delete controller files.
The memory module may be used to backup data from the controller’s volatile memory. ControlLogix 5560 Controllers may be configured to automatically load program from the 1784-CF128 which contributes to increasing the machine availability as unwanted controller shutdown due to program deletion may be prevented.
The 1784-CF128 also supports other functionalities, related to the basic functions supported by the memory module. These functionalities include opening a file, closing a file, Setting of file printer, Checksum calculations, Checksum verifications, Data parsing and Error handling. This memory module supports up to 4500 bytes of application code which may be optionally expanded.
The 1784-CF128 has a limited lifespan. To maximize operation of this memory device, configure the controller to write or save data to the module when necessary or through a triggered event. Writing of data every program scan significantly lessens the module’s lifespan. The 1784-CF128 supports FAT16 format wherein, up to 250 files may be saved on the root directory.
The 1784-CF128 is compatible with 1756-L6X or 5560 ControlLogix controllers. It serves as an additional user program and program data memory which supports basic functions such as create, write, read and delete controller files.
The memory module may be used to backup data from the controller’s volatile memory. ControlLogix 5560 Controllers may be configured to automatically load program from the 1784-CF128 which contributes to increasing the machine availability as unwanted controller shutdown due to program deletion may be prevented.
The 1784-CF128 also supports other functionalities, related to the basic functions supported by the memory module. These functionalities include opening a file, closing a file, Setting of file printer, Checksum calculations, Checksum verifications, Data parsing and Error handling. This memory module supports up to 4500 bytes of application code which may be optionally expanded.
The 1784-CF128 has a limited lifespan. To maximize operation of this memory device, configure the controller to write or save data to the module when necessary or through a triggered event. Writing of data every program scan significantly lessens the module’s lifespan. The 1784-CF128 supports FAT16 format wherein, up to 250 files may be saved on the root directory.
FAQ for 1784-CF128
Does the 1784-CF128 support Removal and Insertion Under Power (RIUP)?
No, it does not support RIUP.
What is the minimum file size or resolution?
Minimum file size is 450 Bytes.
What are the controllers supported by the 1784-CF128?
The 1784-CF128 supports ControlLogix 5560 controllers.
Technical Description of 1784-CF128
The Allen-Bradley ControlLogix 1784-CF128 is an Industrial Compact Flash Card with 128 Megabytes.
