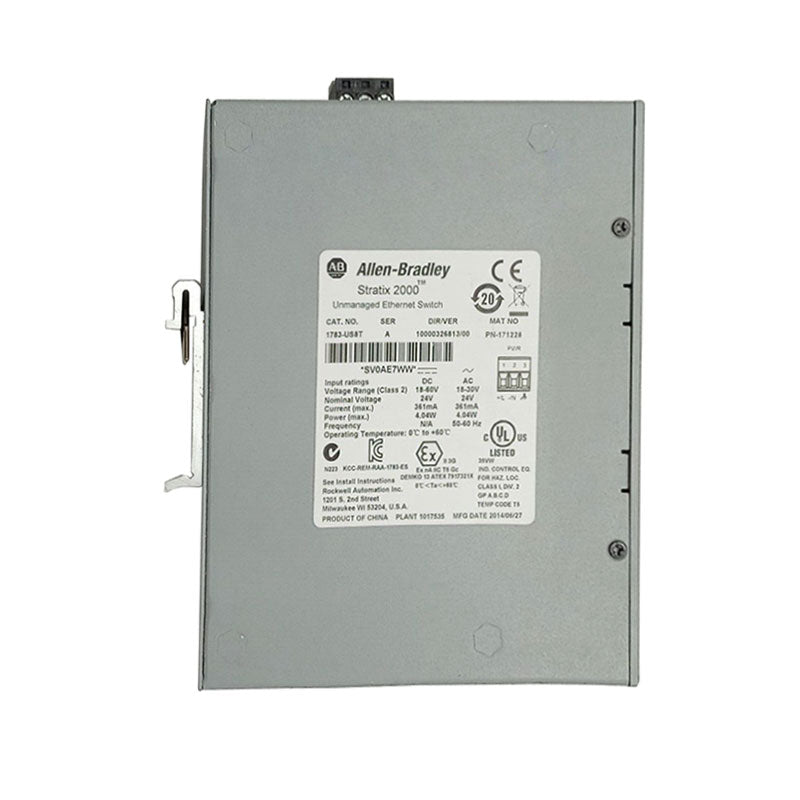

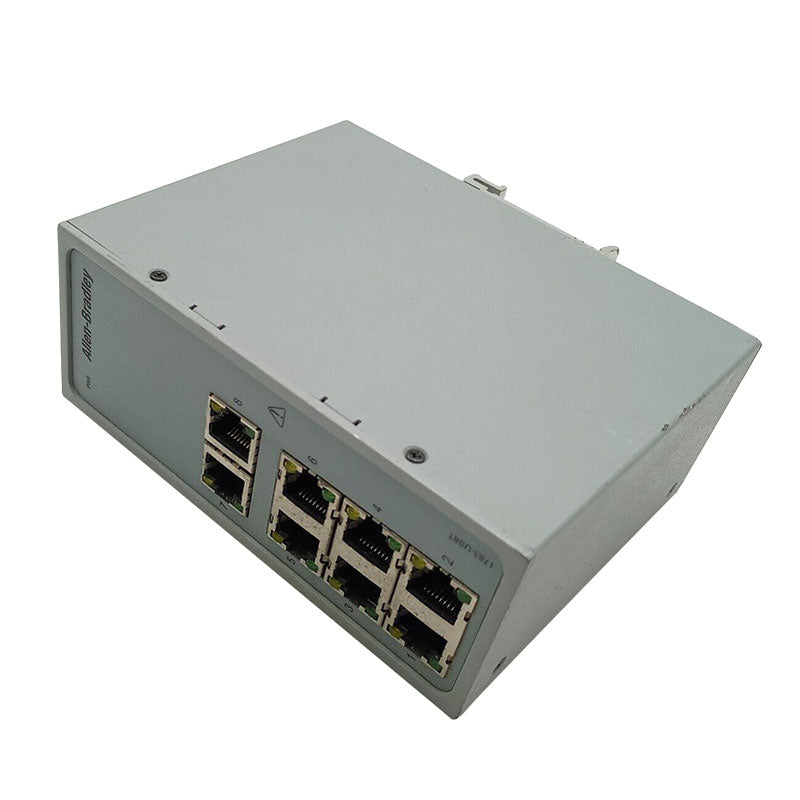

1783-US8T Allen-Bradley | Stratix 2000 8T Port Unmanaged Switch

1783-US8T Allen-Bradley | Stratix 2000 8T Port Unmanaged Switch

Regular price $171.00 USD
Regular price $222.00 USD Sale price $171.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Technical Specifications for 1783-US8T

Manufacturer Rockwell Automation
Brand Allen-Bradley
Total Ports 8
Enclosure Type Rating 4.50 x 3.02 x 1.80 in (114.5 x 76.8 x 45.6 mm)
Max Ground Terminal Screw Torque Open-Style/None
Power Terminal Screw Torque 8.05 in?lb
Wire Size: DC Power Connection 4.5?5.0 in?lb (0.50?0.56 N?m)
Wire Size: Ground Connection 2.5 mm2 (14 AWG) Copper Wire Suitable for 187 °F (86 °C) Above Surrounding Ambient Temperature Outside the Enclosure, with Suitable Ring Terminal
Max Current DC 510 mA; AC 1100 mA
Nom Current DC 250 mA; AC 500 mA
Max Power Consumption 4.6 W
Power Input 24V (12?48V DC, 18...30V AC, 50/60 Hz), SELV
Max Inrush Current 1.31 A
SFP Ports 0
RJ45 Ports 8 Fast Ethernet
Part Number/Catalog No. 1783-US8T
UPC 884951981386

About 1783-US8T

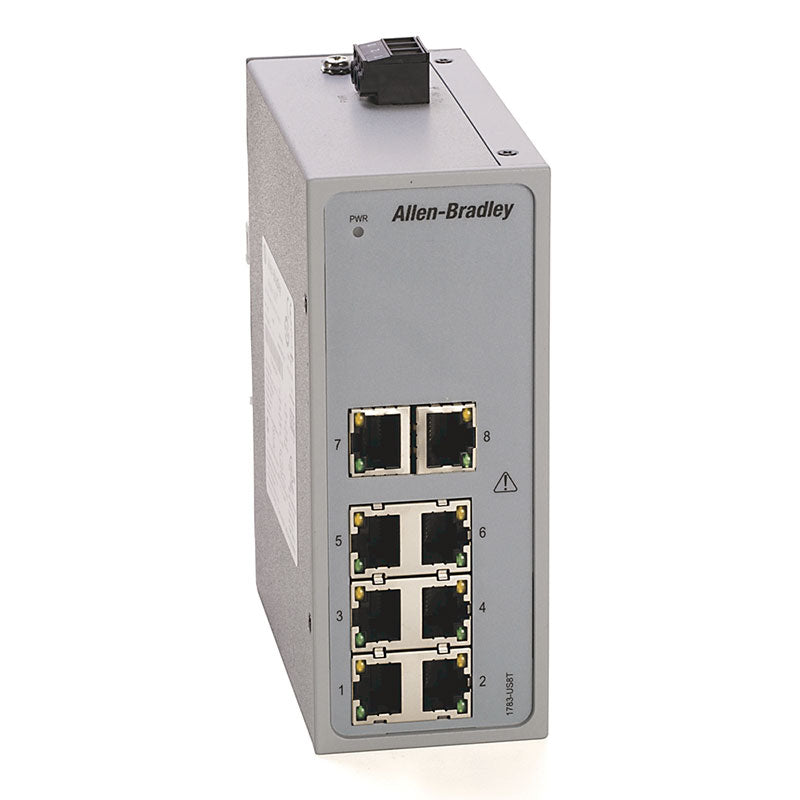

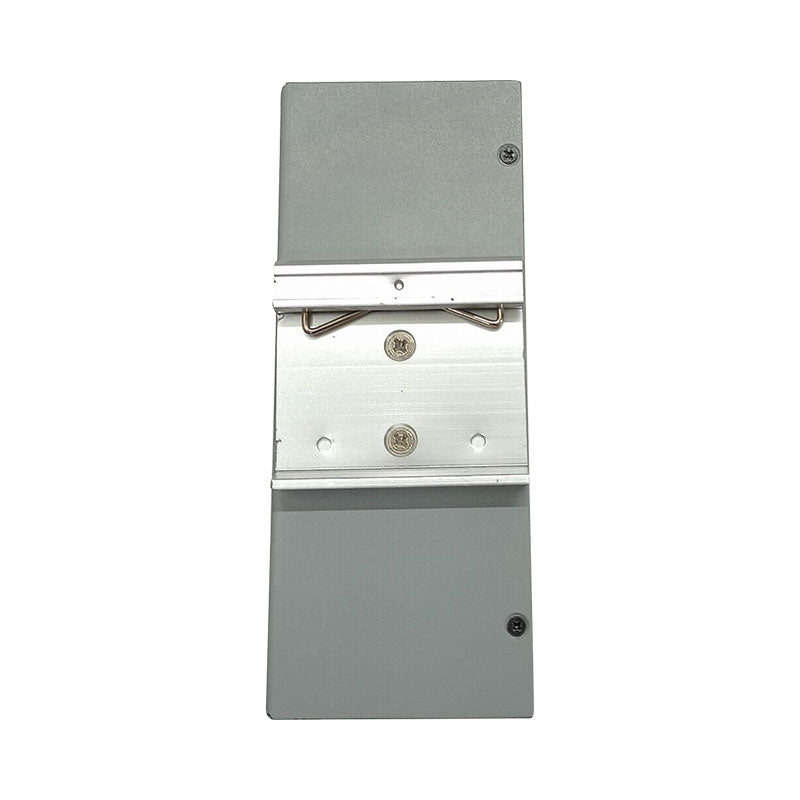

The Allen-Bradley 1783-US8T Stratix 2000 Ethernet unmanaged switch has 8 RJ45 10-100 copper ports and an Ethernet data rate of 10-100 Mbps. This switch works with packet-based thresholds and it has broadcast storm thresholds of 20 packets per second (pps) for 10 Mbps per port and 200 pps for 100 Mbps per port. Yellow and green status indicators are also available, and these indicators have a 105-ms blink rate. The indicators allow you to see the current status of the switch’s network connection or of the network activity, port speed, and power supply. It uses a din rail for mounting, has an open-type enclosure, and measures 5.31 x 4.19 x 2.11 inches.

For DC power connections, the 1783-US8T switch requires a 0.75 to 2.5 mm2 (18-14 AWG) twisted-pair copper wire. For functional earth connections, the wire should be 2.5 mm2 (14 AWG) copper wire with a suitable ring terminal. Wires should be rated for a temperature 30 ËšC above the surrounding ambient temperature outside the switch’s enclosure.

The maximum surrounding air temperature is 60 ËšC and the 1783-US8T has a non-condensing relative humidity range of 5-95%. Its operating temperature is 0-60 ËšC and its non-operating temperature is -40-85 ËšC. The operating vibration is 2 g at 10-500 Hz, the operating shock is 15 g, and the non-operating shock is 30 g.

Its maximum power dissipation is 4.04 W at 24V AC/DC and the current rating is 361 mA. The maximum inrush current of the 1783-US8T switch is 2.2 A and the required power supply is 24V (18-60V DC, 18-30V AC, 50-60 Hz), Class 2/SELV. This switch also has a continuous isolation voltage of 30V from the power to the network channels that has been type tested at 500V AC for 60 seconds and is of a basic insulation type. Note that the 1783-US8T switch does not have an isolation between the individual network channels.



Technical Description of 1783-US8T

The 1783-US8T is a switch with 8 Fast Ethernet RJ45 Ports, 0 SFP Ports, 1.31 A Max Inrush Current, and a 24V (12
