1769-PB2 | Allen Bradley CompactLogix DC 2A/0.8A Power Supply
1769-PB2 | Allen Bradley CompactLogix DC 2A/0.8A Power Supply
Regular price
$208.00 USD
Regular price
$270.00 USD
Sale price
$208.00 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Technical Specifications for 1769-PB2
| Product Type: | I/O Power Supply |
| Certifications: | c-UL-us; CE; C-Tick |
| Wire size: | 14 AWG (2.5 mm2 ) solid copper wire rated at 90 °C (194 °F) or greater, 1.2 mm (3/64 in.) insulation max |
| Weight: | 485 g (1.07 lb) |
| Dimensions (HxWxD), approx.: | 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) height including mounting tabs is 138 mm (5.43 in.) |
| Fuse type: | Littelfuse 02153.15MXP; Wickmann 19195-3.15A |
| Inrush current, max: | 30 A @ 31.2V DC |
| Current capacity @ 24V DC: | 0.8 A |
| Current capacity @ 5V DC: | 2.0 A |
| Power consumption: | 7.5 W @ 60 °C (140 °F) |
| Input Voltage range: | 19.2-31.2 VDC |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Power Supply Distance Rating | 8; 8 I/O modules can be connected on either side of the power supply for a maximum of 16 module. |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-PB2 |
| Product Line | CompactLogix |
| Module Type | DC Power Supply Module |
| Input Power | 24VDC |
| Shipping Weight | 2 pounds |
| Shipping Dimensions | 8 x 8 x 5 inches |
| Enclosure Type | Open |
| Series | A and B |
| Wire Type | Copper 90 degrees |
| Solid Wire Size | 22 to 14 AWG |
| Stranded Wire Size | 22 to 16 AWG |
| UPC | 10662468992968 |

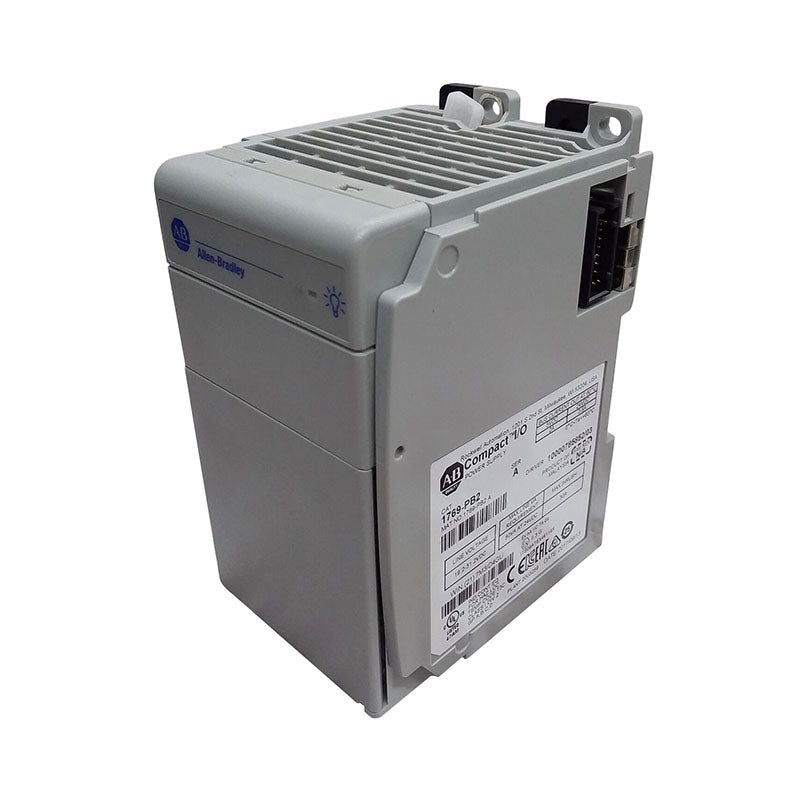

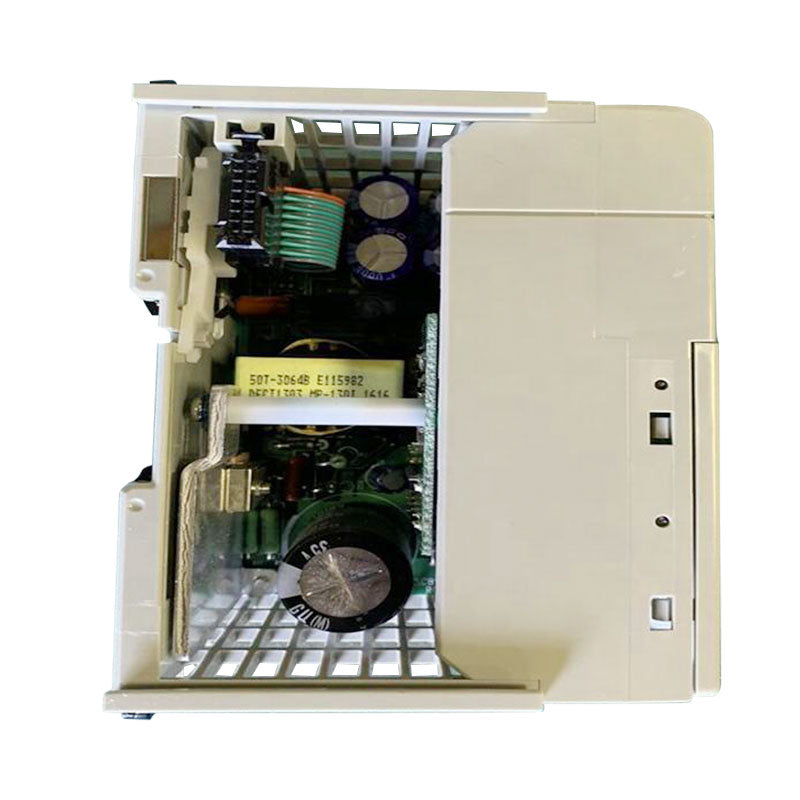

About 1769-PB2
The 1769-PB2 is a CompactLogix I/O power supply. This power supply acts as an I/O power supply, which may be mounted in a CompactLogix rack or to the expansion I/O bank. This power supply is capable of providing power to both left and right side, allowing Eight (8) modules to be installed on each side for a maximum of Sixteen (16) modules, overall.
The 1769-PB2 has an input voltage rating of 19.2-31.2VDc with nominal voltage of 24VDC. Once supplied with the appropriate input voltage, the 1769-PB2 is capable of providing an output current of 2.0 A @ 5VDC and 0.8A @ 24VDC. This module is designed to withstand an inrush current of 30 A @ 31.2V DC.
The 1769-PB2 has a power consumption of 50 VA @ 24V DC and power dissipation of 7.5 W @ 60° C (140° F). It has an internally installed fuse for protection. Compatible fuse are Wickmann 19193-6.3A and Littelfuse 021706.3MXP.

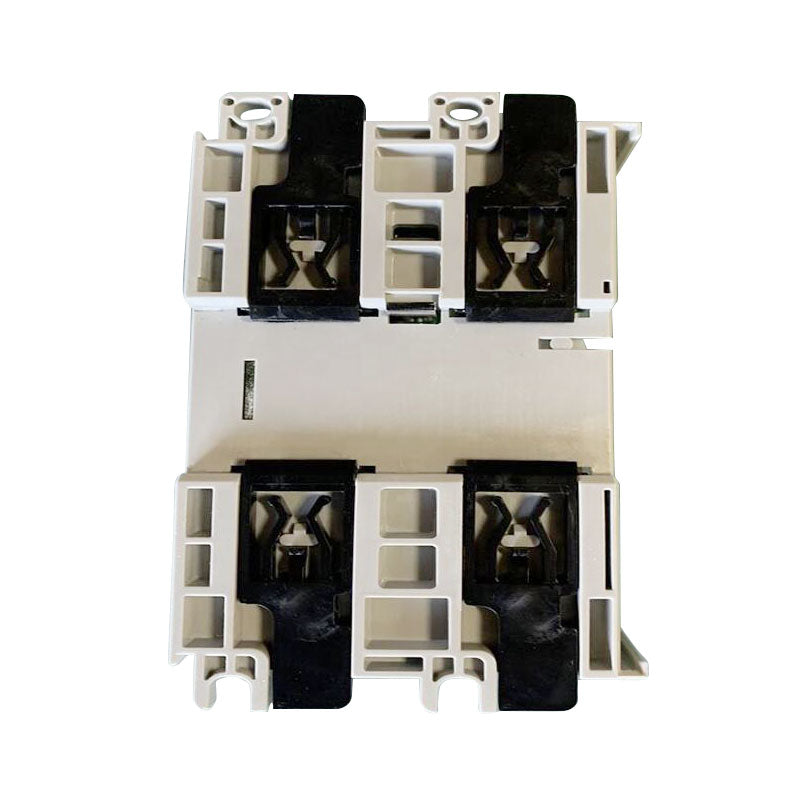

The 1769-PB2 has an approximate weight of 525 g (1.16 lb) with physical measurements of 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.). This I/O power supply support direct panel mounting or DIN rail mounting, following the supported mounting method of the CompactLogix platform.
When making signal wiring and connection to this I/O power supply, appropriate wire size is 14 AWG (2.5 mm2), solid copper wire with insulation rating of 90 °C (194 °F) or higher and insulation thickness of 1.2 mm (3/64 in.). It has an open-type enclosure therefore, this power supply, along the entire CompactLogix assembly must be mounted inside an enclosure that offers adequate protection against industrial elements.

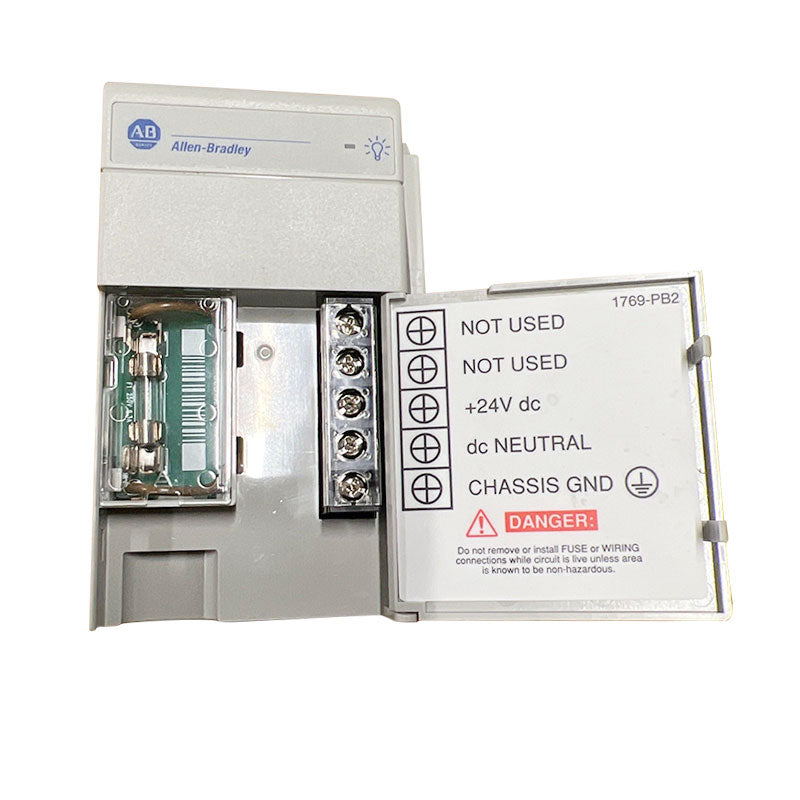

This power supply module has built-in Wickmann 19193-6.3A or Littelfuse 021706.3MXP fuse. The 1769-PB2 has printed terminal identification diagrams, finger-safe covers, upper and lower panel mounting tabs, and barrier-type terminal blocks provided for secure installation and operation.
The 1769-PB2 has an output current capacity of 1 Amp on both sides of the power supply at 24 Volts DC or it can provide 2 Amps of current each at 5 Volts DC. It has a power supply distance rating of 8, allowing up to 8 I/O modules to be connected on each side of the power supply. It also has a line loss ride through a range of a minimum of 10 milliseconds and a maximum of 10 seconds.
The Allen-Bradley 1769-PB2 module has an input voltage range of 19.2 to 31.2 Volts DC, a nominal input voltage of 24 Volts DC. Its power consumption is 50 VA at 24 Volts DC while its maximum inrush current is 30 Amps at 31.2 Volts DC. It has a current capacity of 2 Amps at 5 Volts or one of 0.8 Amps at 24 Volts and a power dissipation of 7.5 Watts at 140 degrees Fahrenheit. The continuous isolation voltage of the 1769-PB2 is 75 Volts and the non-condensing relative humidity range is 5 to 95%. Its operating temperature range is 32 to 140 degrees Fahrenheit, and its storage temperature range is -40 to 185 degrees Fahrenheit. It can also withstand an operating vibration of 5 G at 10 to 500 Hertz, a non-operating shock of 50 G, and an operating shock of 30 G.
The 1769-PB2 has an input voltage rating of 19.2-31.2VDc with nominal voltage of 24VDC. Once supplied with the appropriate input voltage, the 1769-PB2 is capable of providing an output current of 2.0 A @ 5VDC and 0.8A @ 24VDC. This module is designed to withstand an inrush current of 30 A @ 31.2V DC.
The 1769-PB2 has a power consumption of 50 VA @ 24V DC and power dissipation of 7.5 W @ 60° C (140° F). It has an internally installed fuse for protection. Compatible fuse are Wickmann 19193-6.3A and Littelfuse 021706.3MXP.
The 1769-PB2 has an approximate weight of 525 g (1.16 lb) with physical measurements of 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.). This I/O power supply support direct panel mounting or DIN rail mounting, following the supported mounting method of the CompactLogix platform.
When making signal wiring and connection to this I/O power supply, appropriate wire size is 14 AWG (2.5 mm2), solid copper wire with insulation rating of 90 °C (194 °F) or higher and insulation thickness of 1.2 mm (3/64 in.). It has an open-type enclosure therefore, this power supply, along the entire CompactLogix assembly must be mounted inside an enclosure that offers adequate protection against industrial elements.
This power supply module has built-in Wickmann 19193-6.3A or Littelfuse 021706.3MXP fuse. The 1769-PB2 has printed terminal identification diagrams, finger-safe covers, upper and lower panel mounting tabs, and barrier-type terminal blocks provided for secure installation and operation.
The 1769-PB2 has an output current capacity of 1 Amp on both sides of the power supply at 24 Volts DC or it can provide 2 Amps of current each at 5 Volts DC. It has a power supply distance rating of 8, allowing up to 8 I/O modules to be connected on each side of the power supply. It also has a line loss ride through a range of a minimum of 10 milliseconds and a maximum of 10 seconds.
The Allen-Bradley 1769-PB2 module has an input voltage range of 19.2 to 31.2 Volts DC, a nominal input voltage of 24 Volts DC. Its power consumption is 50 VA at 24 Volts DC while its maximum inrush current is 30 Amps at 31.2 Volts DC. It has a current capacity of 2 Amps at 5 Volts or one of 0.8 Amps at 24 Volts and a power dissipation of 7.5 Watts at 140 degrees Fahrenheit. The continuous isolation voltage of the 1769-PB2 is 75 Volts and the non-condensing relative humidity range is 5 to 95%. Its operating temperature range is 32 to 140 degrees Fahrenheit, and its storage temperature range is -40 to 185 degrees Fahrenheit. It can also withstand an operating vibration of 5 G at 10 to 500 Hertz, a non-operating shock of 50 G, and an operating shock of 30 G.
FAQ for 1769-PB2
What is the fuse type for 1769-PB2?
The fuse type for 1769-PB2 is Wickmann 19193-6.3A or Littelfuse 021706.3MXP.
What is the module location for 1769-PB2?
The module location of 1769-PB2 is a DIN rail or panel mount.
What is the price of 1769-PB2?
send us an email, for our best price.
What is the output current capacity of the 1769-PB2?
The 1769-PB2 has an output current capacity of 2.0 A @ 5VDC and 0.8 A @ 24VDC.
How many modules does the 1769-PB2 capable of powering ON?
The 1769-PB2 is capable of supplying power to up to Sixteen (16) 1769 modules.
What is the input supply voltage range of the 1769-PB2?
The 1769-PB2 input supply voltage range is 19.2-31.2 VDC.
Technical Description of 1769-PB2
Allen Bradley 1769-PB2 CompactLogix | RS Logix 5000| 24 VDC Input 2 Amp with 5 VDC Output Power Supply Module. , 8 modules, Open enclosure
