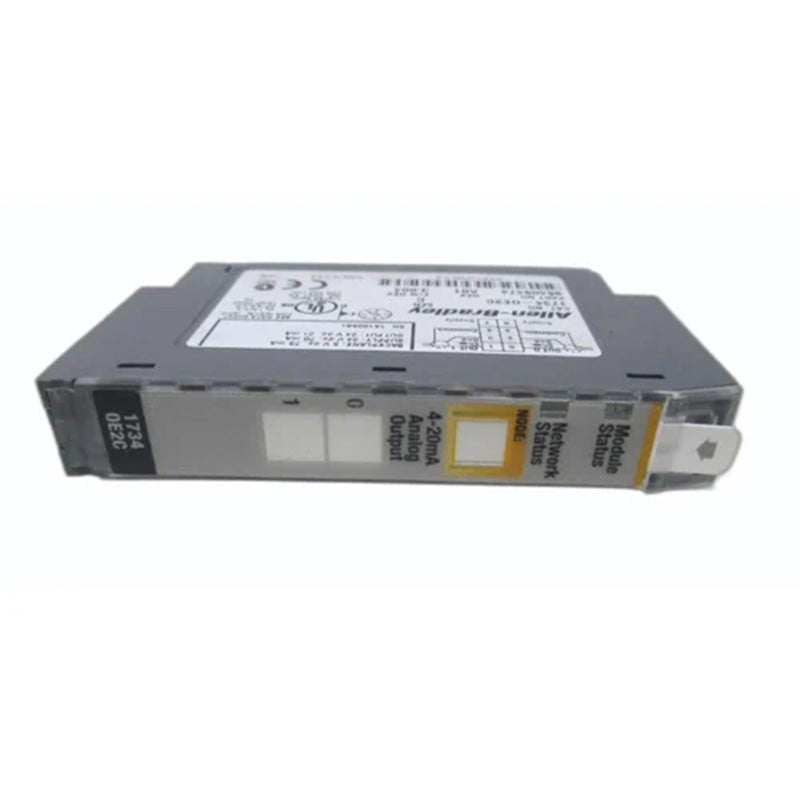

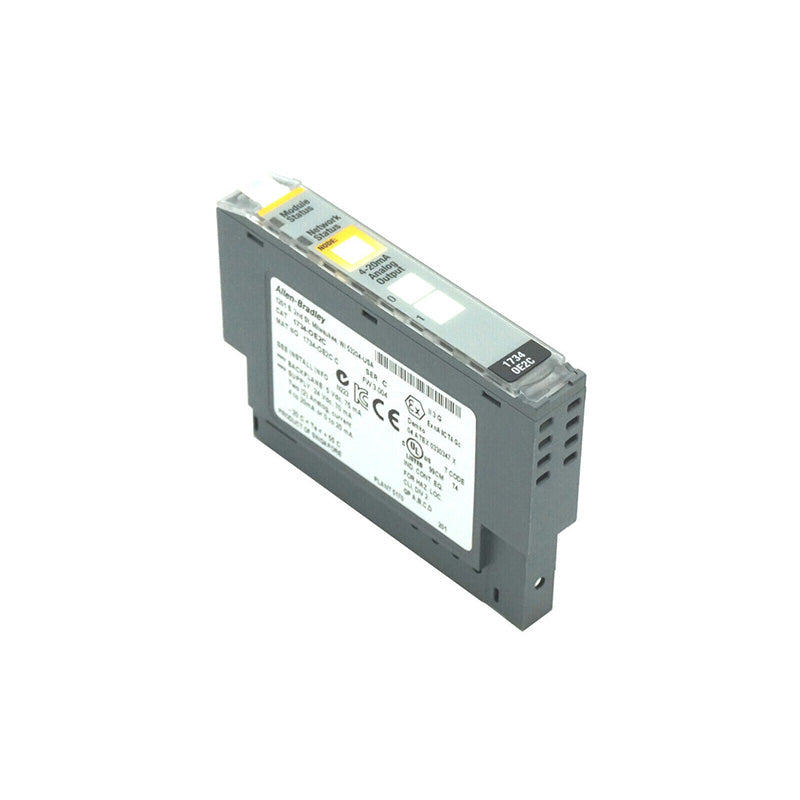

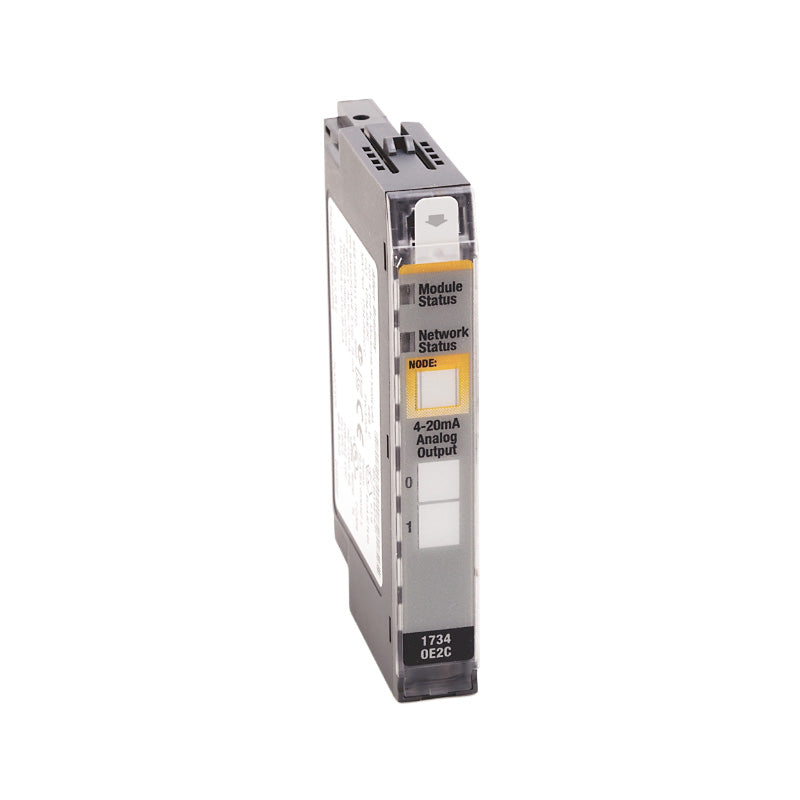

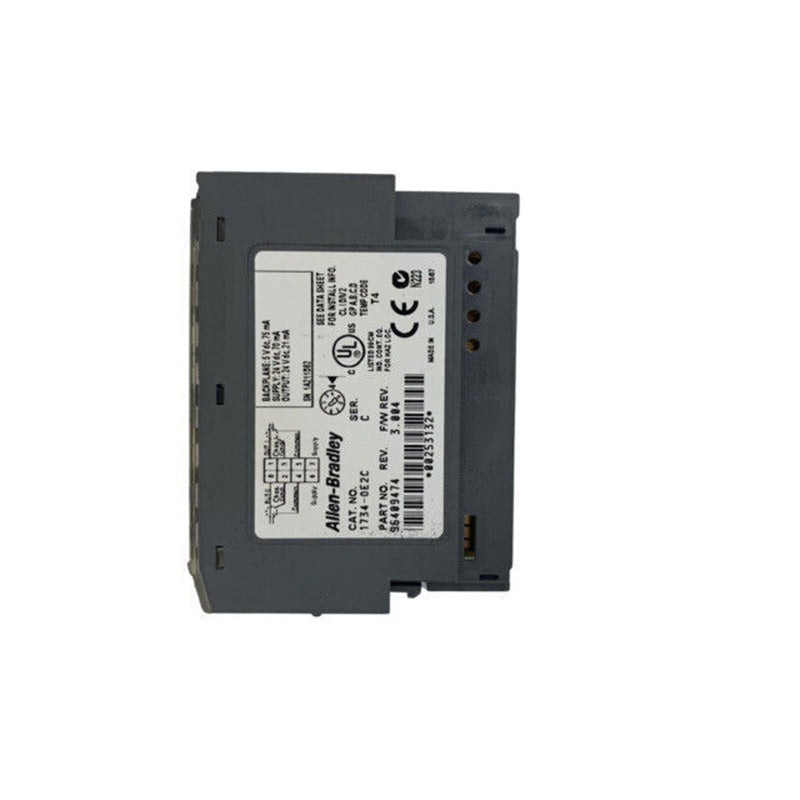

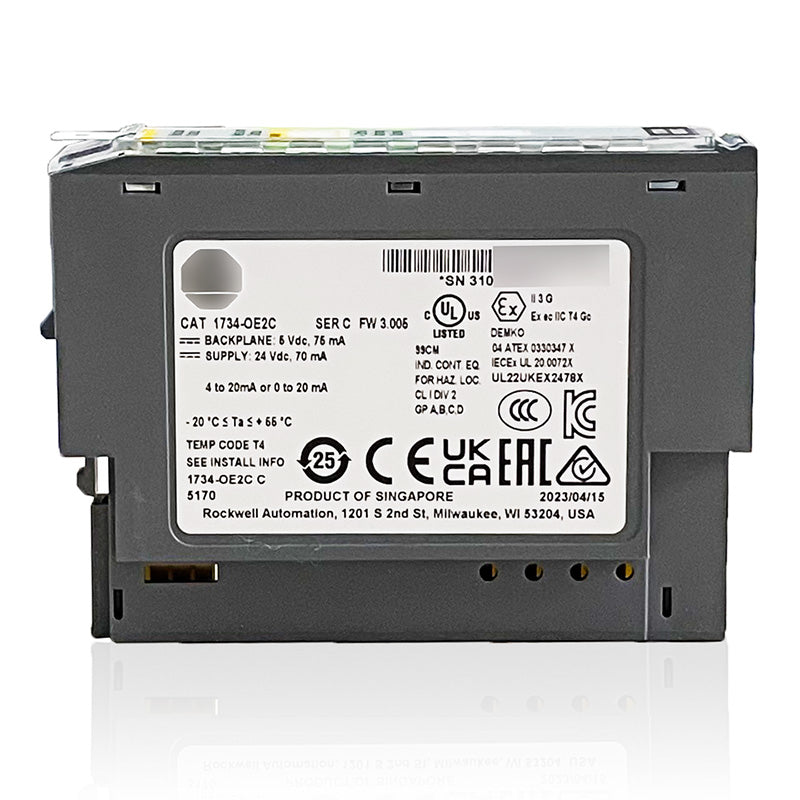

1734-OE2C | Allen-Bradley Analog Output Module

1734-OE2C | Allen-Bradley Analog Output Module

Regular price $140.00 USD
Regular price $180.00 USD Sale price $140.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Technical Specifications for 1734-OE2C

Manufacturer Rockwell Automation
Brand Allen-Bradley
Status indicators 1 green/red module status indicator, logic side 1 green/red network status indicator, logic side 2 green/red output status indicators, logic side
Module Location 1734-TB, 1734-TBS, 1734-TB3, 17340TB3S wiring base assembly
Keyswitch position 4.00E+00
Enclosure type rating None (open-style)
Dimensions 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.)
Power Dissipation 750 ? load on each output - 1.23 W 0? load on each output - 1.83 W
Current Draw 75 mA @5V dc
Data Format Signed Integer
Converter Type Digital to analog converter
Step Response (63% of FS) 24 µs
Absolute Accuracy 0.1% Full Scale @ 25 Deg. Celsius
Output signal 0-20 mA; 4-20 mA
No. of outputs Two (2) Single-ended, non-isolated channels
Part Number/Catalog No. 1734-OE2C
Series POINT I/O
Module Type Analog Output Module
Conversion Rate 16µs
Resolution 13 bits - over 0-21mA 2.5µA/cnt (average value - typical range: 2.3...2.7µA/cnt)
Outputs 2 Single-Ended, Non-Isolated
Supply Voltage 24 Volts DC
Output Current 4-20 or 0-20 milliamps
Isolation Voltage 50 Volts Continuous
Conversion Type Digital-Analog
POINTBus Current 75 milliamps (at 5 Volts DC)
Enclosure Open
Dimensions (H x W x L) 2.21 x 0.47 x 2.97 inches
Weight 1.27 ounces (36 grams)
Operating Temperature -20-55 Celsius
UPC 10612598205292

About 1734-OE2C

The Allen-Bradley 1734-OE2C has 2 single-ended and non-isolated current outputs. Its module operates in a Unipolar mode, consumes 4 bytes, and produces 2 data bytes. Its 2-channel analog output module converts a digital code into an analog output signal. The module resolution is 13 bits ranging from 0-21 mA.

In setting an individual mode, the 1734-OE2C has 2 modes to choose from 0-20mA and 4-20mA (default). It has a default scaling points of 1638 at 4 mA and 8191 at 20 mA. The model has a general status bit set whenever an open-wire happens. The channel indicator blinks red whenever there is an open wire or a loss of field power. The Allen-Bradley 1734-OE2C has an absolute accuracy of 0.1% full-scale at 25 Deg. Celsius. Its accuracy drift with temperature is 30 ppm/ Deg. Celsius. It has a step response of up to 63% of FS is 24 µs and a current conversion rate of 16 µs. The 1734-OE2C has a resistive load on the voltage output that ranges from 0-750 Ohms. Its point-bus current is 75 mA at 5V DC and its power dissipation is 1.23 Watts. The 1734-OE2C’s thermal dissipation is 4.19 BTU/Hr. and an isolation voltage of 50V continuous tested to withstand 2200V DC for the 60s. It has an external DC supply voltage of 24V DC, nominal and voltage range from 10-28.8V DC. It supplies a current of 70mA at 24V DC which includes outputs at 20mA. The 1734-OE2C comes with a 4 key-switch position and a dimension of 56 x 12 x 75.5 mm. It has a mass of approximately 36g.

The 1734-OE2C is commonly used to actuate modulating Final Control Elements (FCE) such as Control Valves, Variable Frequency Drives (VFD), Dampers, Louvers and other similar devices. It may also be used for re-transmitting analog data for use by data loggers or recorders, panel meters, totalizers, signal converters and isolators.

When installing the 1734-OE2C and the entire POINT I/O system, it is recommended to use a zinc-plated, yellow-chromated steel DIN rail. This type of DIN rail offers higher resistance against corrosion as POINT I/O module grounding are connected via the DIN rail. DIN rails made of non-conductive material and materials greatly affected by corrosion, oxidation may result to intermittent grounding connection.

Additionally, the 1734-OE2C series C module is compatible with DeviceNet and Profibus communication adapters.

FAQ for 1734-OE2C

What is the 1734-OE2C Analog Current Output Module's data format?


The data format of the 1734-OE2C POINT I/O Analog Current Output Module is Signed Integer.

Does the 1734-OE2C Analog Current Output Module require calibration?


The 1734-OE2C POINT I/O Analog Current Output Module is factory calibrated.

Which keyswitch position does the 1734-OE2C require?


The 1734-OE2C should be set to keyswitch position 4.

What operational modes does the 1734-OE2C Analog Output Current Module have?


The 1734-OE2C POINT I/O Analog Output Current Module has two modes: 0-20 milliamps and 4-20 milliamps. The 4-20 milliamp mode is set as the default.

What are the default scaling points for the 1734-OE2C Analog Output Current Module?


The default scaling points for the 1734-OE2C POINT I/O Analog Output Current Module are 1638 at 4 milliamps and 8191 at 20 milliamps. Note that each scaler may be set on an individual, per-channel basis.

What is the price of a 1734-OE2C POINT I/O Analog Output Current Module?


Submit a quote request, send us an email,  for our best price.

Where can I find repair services for the 1734-OE2C POINT I/O Analog Output Current Module?


 offers repair services for the 1734-OE2C POINT I/O Analog Output Current Module. For more information or to request a repair quote, please contact us

Are there any specific installation materials required when installing the 1734-OE2C?


Aside from standard tools, the 1734-OE2C and other POINT I/O components are required to be installed in a zinc-plated, yellow-chromated DIN rail. This type of material offers higher resistance against corrosion and oxidation and provides continuous grounding connection. POINT I/O modules grounding connections are connected through the DIN rail.

Technical Description of 1734-OE2C

The Allen-Bradley 1734-OE2C is a POINT I/O Analog Current Output Module. It has 2 Single-Ended, Non-Isolated Outputs and a Supply Voltage of 24 Volts DC with an Output Current of 4-20 or 0-20 milliamps. This Analog Current Output Module has a Digital-Analog Conversion Type.
