1606-XLS480E | Allen-Bradley Power Supply, 480 W, 24V DC, No Special Function, Performance Family, Global Input Voltage

The 1606-XLS480E belongs to the Performance Switched Mode Power Supply that manufactured by Allen-Bradley that is primarily used for providing reliable 24VDC output with a power boost of 150% with a reduced physical dimension compared to the XLP series. It may be used with buffer module to enable short boost function and buffer load currents used in the event of main faults, load peaks and switching events.

Power supply are typical components installed inside a control panel that is used to energized a variety of devices such as electrical components particularly pilot lamps, relay, indicating lamps or electronic devices such as indicators, Programmable Logic Controller (PLC) power module or Human Machine Interface (HMI) devices.

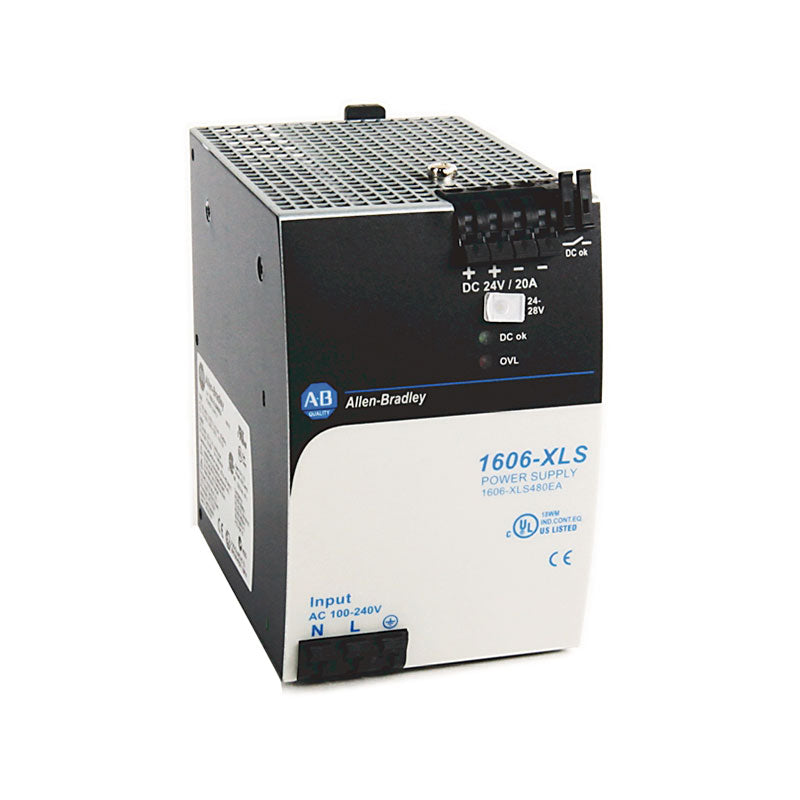

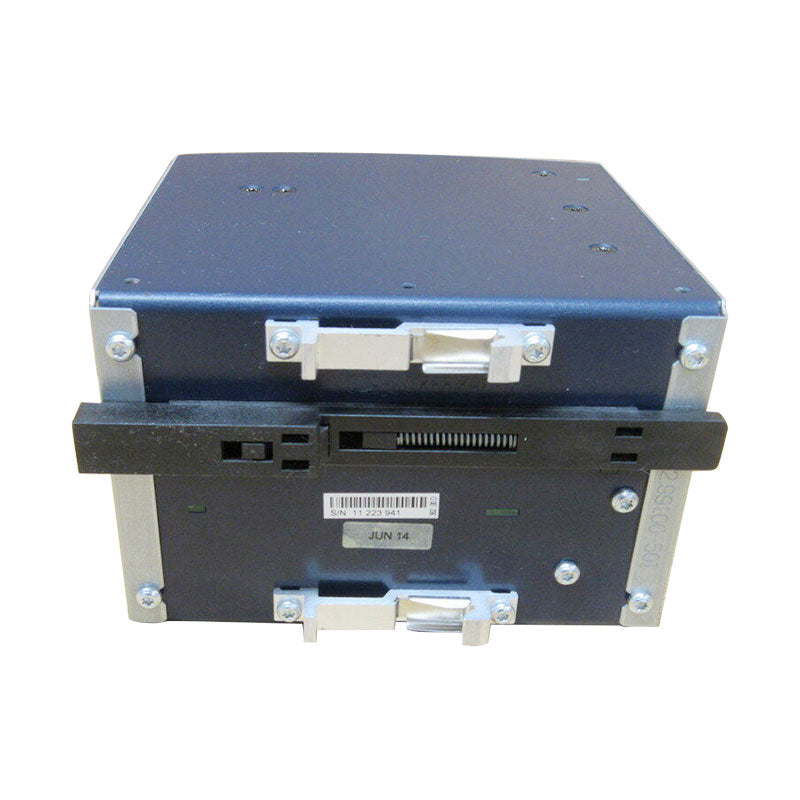

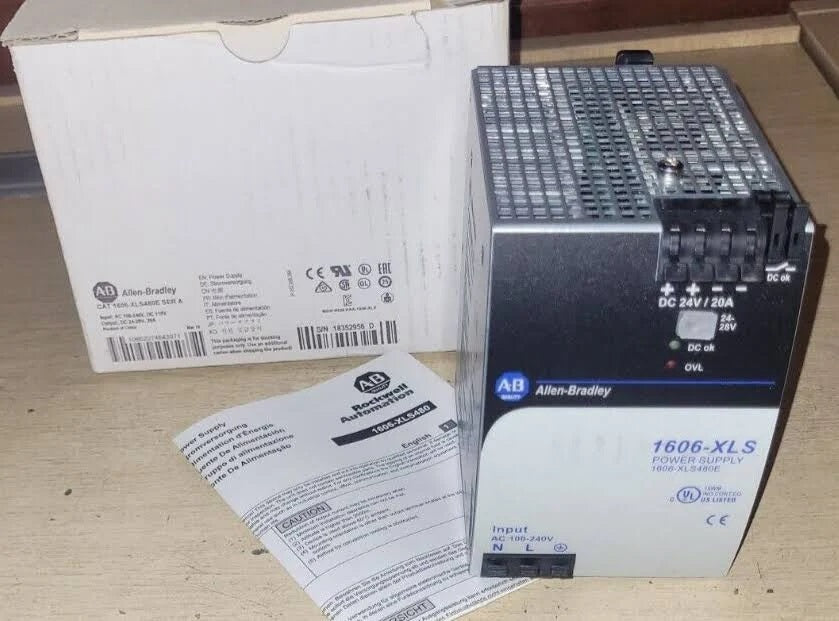

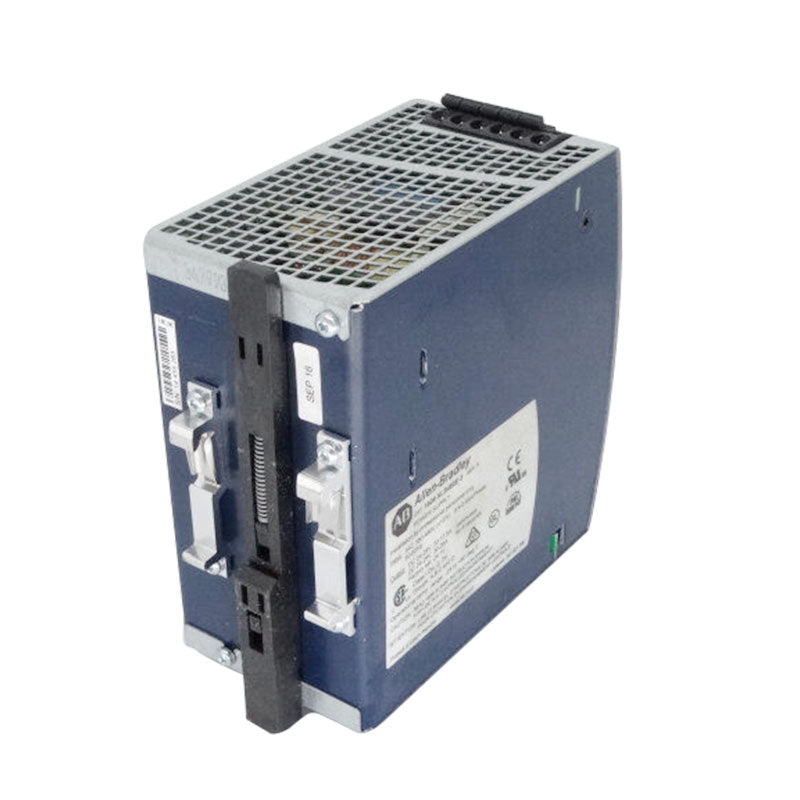

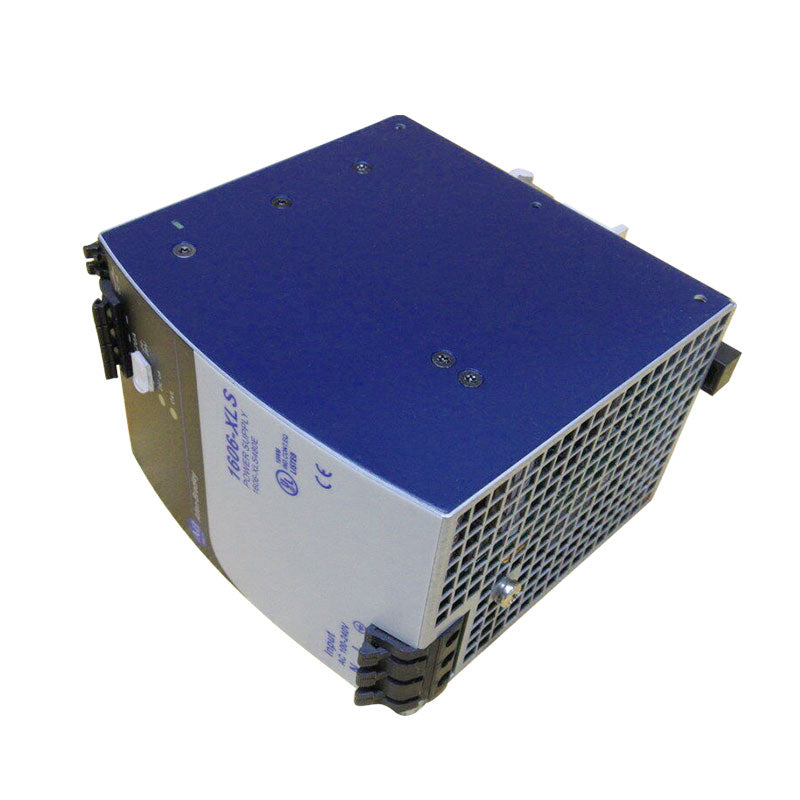

The 1606-XLS480E is designed with long lasting electrolytic capacitors to reduce ripple voltage. It has an user friendly and easy to understand front panel labels and terminals use spring clamp technology. It has Two (2) + 24VDC and Two (2) - 0VDC terminals with one DC-OK output for monitoring the power supply module’s output voltage. It has an integral potentiometer for adjusting the output voltage up to 28VDC an Two (2) LED indicators for providing DC OK feedback and Overload Feedback. The input terminal is located at the bottom of the module with a ground terminal.

The 1606-XLS480E is capable of being installed with a redundancy module operate in 1+1 configuration for components that require an increased availability. Compared to XLE series, this power supply is slightly larger but smaller compared to the XLP series however, it provides an increased power boost amounting to 150%.

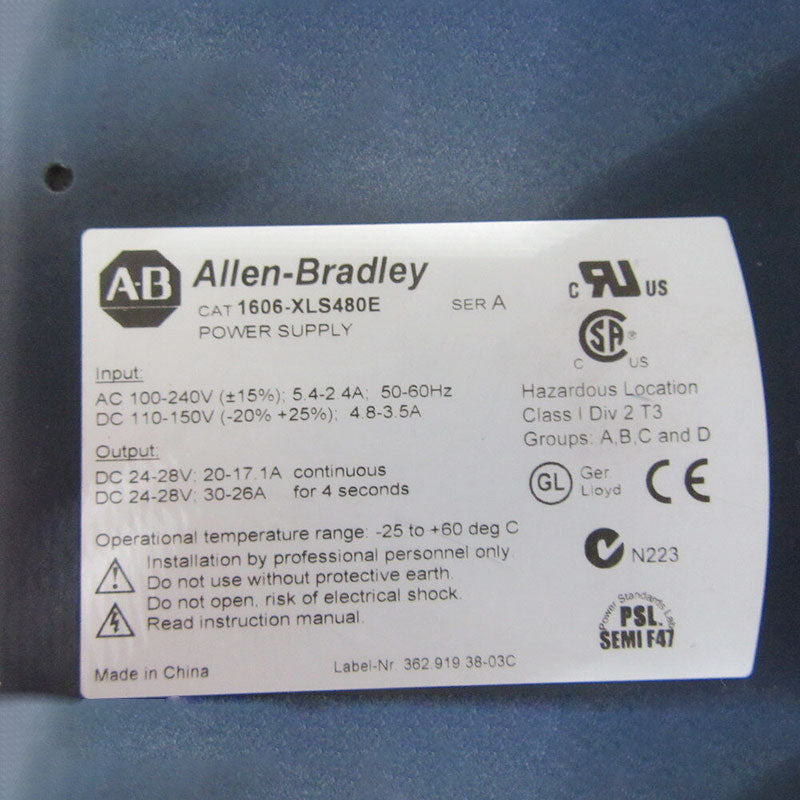

The Allen-Bradley 1606-XLS480E power supply is an industrial power supply that operates on single-phase input. This product is part of the Allen-Bradley 1606 series that offers a variety of high-quality components that are used for industrial systems that require superior reliability and constant operation. This unit has a great efficiency-to-size ratio, along with a robust frame that is built for rough operating conditions. The 1606-XLS480E power supply has a simple design and it provides short-term 150% power capability, along with the ability to adapt for different applications. The unit meets the UL, CE, and RU standards and features correction of an active power factor, extra-low inrush current, unique and practical terminals. The 1606-XLS480E power supply is intended for an input voltage of 100 to 240 Volts AC or 110 to 150V DC and with frequencies from 50 to 60 Hertz. The output power rating of this model is 480 watts for continuous operation and 720 watts for 4 seconds typical. In addition to that, the output current of the unit is 20 to 30 Amps while its output voltage rating is 24 Volts DC. Also, it should be mentioned that the adjustment range is from 24 to 28 Volts. The power factor is 0.95 and 0.90 at a voltage rating of 120 and 230 Volts AC, respectively while its current for the AC inrush voltage is 9 and 7 Amps at peak. The efficiency rating of the 1606-XLS480E unit is between 92.4 and 93.9% with losses of 39.6 and 31.4 Watts, respectively. The hold-up time for the 1606-XLS480E power supply is 32 to 51 milliseconds. The unit is designed to operate at temperatures ranging from -25 to 70 degrees Celsius and it has dimensions that include 82 millimeters in width, 124 millimeters in height, and 127 millimeters in depth.
