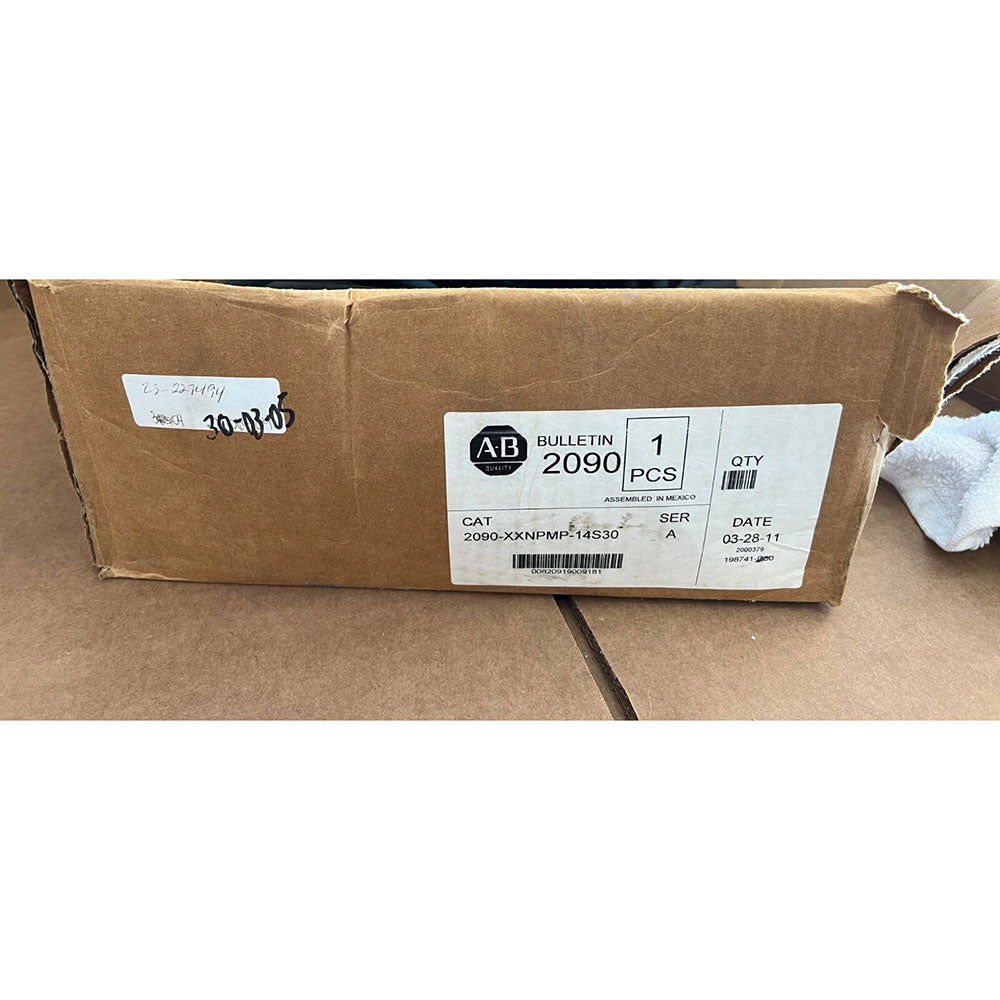

The 2090-XXNPMP-14S30 is a Kinetix cable from the 2090 series of cables. This cable is manufactured by Allen-Bradley which is a non-flexible or standard cable. It is a power cable with a voltage rating of 600V. The motor end of this cable features a Bayonet connector that provided a tight and secured connection. It can be connected and locked into place rapidly by turning the rotatable end. It provides resistance to shock and vibration and limits the entry of liquid contaminants and prevents entry of dust, dirt, and solid particles. The other end of this cable is Flying Leads that are designed to be terminated to the drive end. It measures 30 m overall length with an individual wire size of 14 AWG Conductor. This cable comes with an Industrial Grade Thermoplastic Elastomer (TPE) Black Jacket insulator. This power cable adheres to the Ingress Protection (IP) rating of the motor. The 2090-XXNPMP-14S30 DIN connector has Four (4) pins labeled A, B, C, and D. The internal cables are colored Brown (U), Black (V), Blue (W), and Green / Yellow stripes for Ground connection. This cable is compatible for use with all Kinetix drives except Kinetix 3 drive and supports MP series servo motors such and MPL, MPM, MPF, MPS cables. This cable is NFPA 79 Compliant, UL Listed bulk cable, DESINA compliant jacket coloring, CSA AWM, I/II A/B, 600V, 90 °C construction, included in the Rockwell Automation servo system Declaration of Conformity (DoC) and supports installation with a variety of accessories including extension cables.

The 2090-XXNPMP-14S30 cable is a black standard non-flex power cable manufactured by Allen-Bradley. The cable is a 2090 Series cable that is 30 meters in length. It is mainly used with the MP series 1326 AB servo motors. It helps to securely connect servo motors and actuators. It supports the Kinetix VPC, MPM, HPK, RDB, and Allen-Bradley compatible drives. It is used with motion and continuous flex applications. The cable comes with a conductor size of 14 AWG. The cable comes with a bayonet end for the flying lead connector. The outer jacket of the cable is made up of industrial TPE material. The TPE material helps the cable to withstand different environmental conditions. The shielded cable is fully resistant to oil and frequent exposure to direct sunlight. The 2090-XXNPMP-14S30 cable can serve a voltage supply of up to 600 Volts. The cable meets the UL standards for the AWM requirements. The Allen-Bradley 2090-XXNPMP-14S30 motor power cable has a low capacitance and it helps to maximize the system power density. The cable is manufactured by using copper braid which offers good performance with different EMC/EMI conditions. This transition power cable is compatible with modern motors with bayonet connectors. The cable has a PLTC ER construction which can withstand temperatures of up to 105 degrees Celsius. The hybrid cable construction of the cable helps to allow the power and signal cables to be combined in a single cable. During the installation, the 2090-XXNPMP-14S30 cable should never be bent too much to prevent breaking the internal wire. All of the cables come with a bending radius which is the maximum amount to which it is safe to bend the cable.
